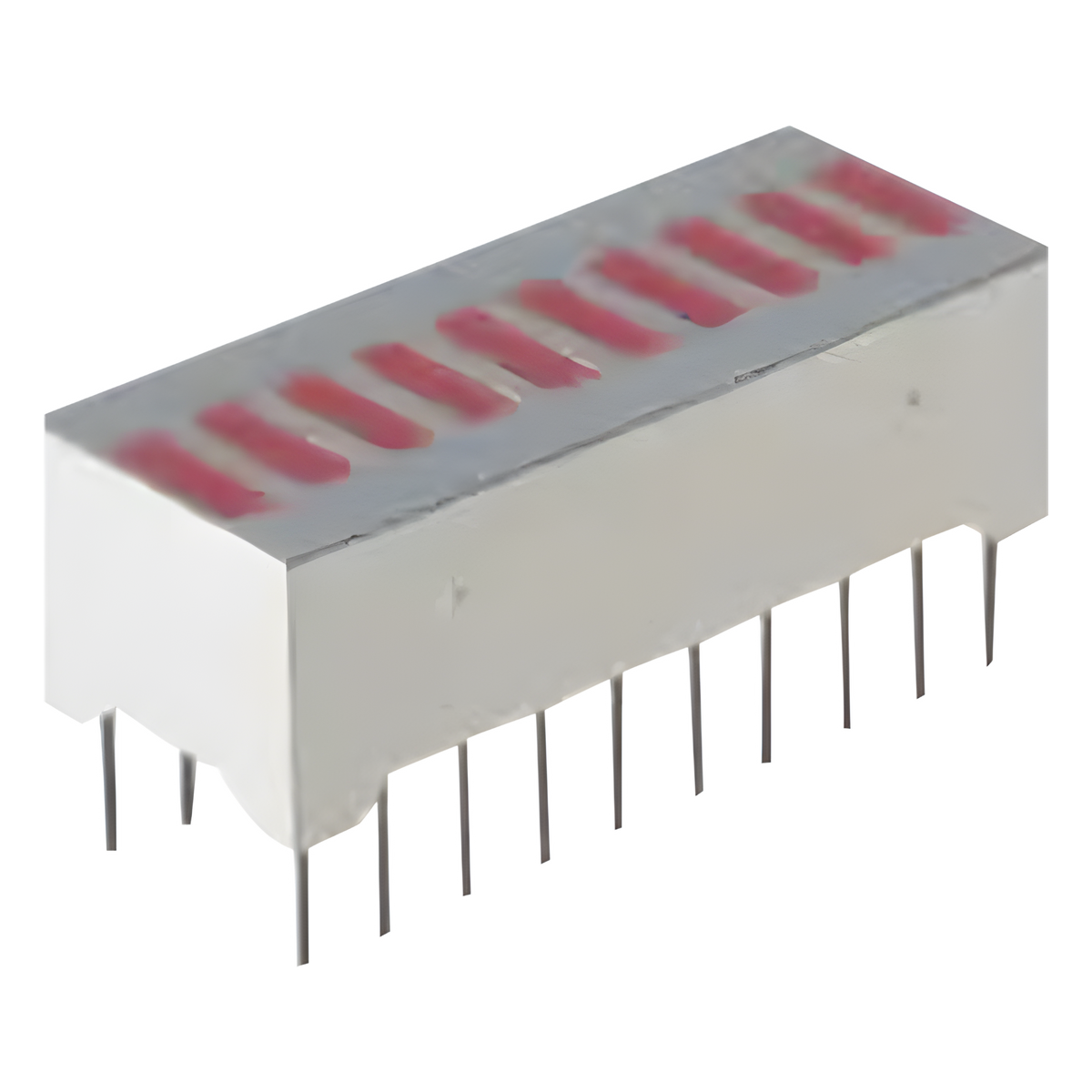

Barra Gráfica de 10 segmentos LED Rojos tipo LTA-1000
Barra Gráfica de 10 segmentos LED Rojos tipo LTA-1000
Couldn't load pickup availability
Características Técnicas
- Segmentos: 10 segmentos LED rojos
- Dimensiones: 0.3-inch DIP lead spacing
- Consumo: 750 mW (máximo a 25°C)
- Corriente: 30 mA por segmento (máximo)
- Tensión: 6.0 V reverse voltage por segmento
- Temperatura: -40°C a +85°C operación
Especificaciones Eléctricas
- Tensión directa: 2.2V (típico a 10mA)
- Intensidad luminosa: 510-1800 µcd (a 10mA)
- Resistencia dinámica: 26Ω (a 20mA)
- Capacitancia: 35 pF (a 0V, 1MHz)
- Tiempo de conmutación: 500 ns
- Temperatura de almacenamiento: -40°C a +85°C
Notas Técnicas
- Luminous Intensity medida con Photo Research Corp. 'Spectra' Microcandela Meter
- Máxima temperatura de superficie: 140°C
- Recomendación de filtros: Panelgraphic Red 60 o Homalite 100-1605
- Compatibilidad con técnicas de soldadura estándar
- Derating lineal a partir de 50°C: -14.3 mW/°C
Información de Seguridad
- No autorizado para uso en dispositivos de soporte vital
- No se asume responsabilidad por aplicaciones específicas
- Reserva de derechos de cambios sin previo aviso
- No incluye licencias de patentes
Curvas Características
- Corriente vs. Tensión directa
- Intensidad luminosa vs. Corriente
- Máxima corriente de pico vs. Ciclo de trabajo
- Eficiencia vs. Ciclo de trabajo
- Tiempo de conmutación: 500 ns
Opciones de Montaje
- Diseño end-stackable para múltiples unidades
- Espaciado estándar para PCB
- Compatible con técnicas de soldadura estándar
- Recomendado para montaje superficial
