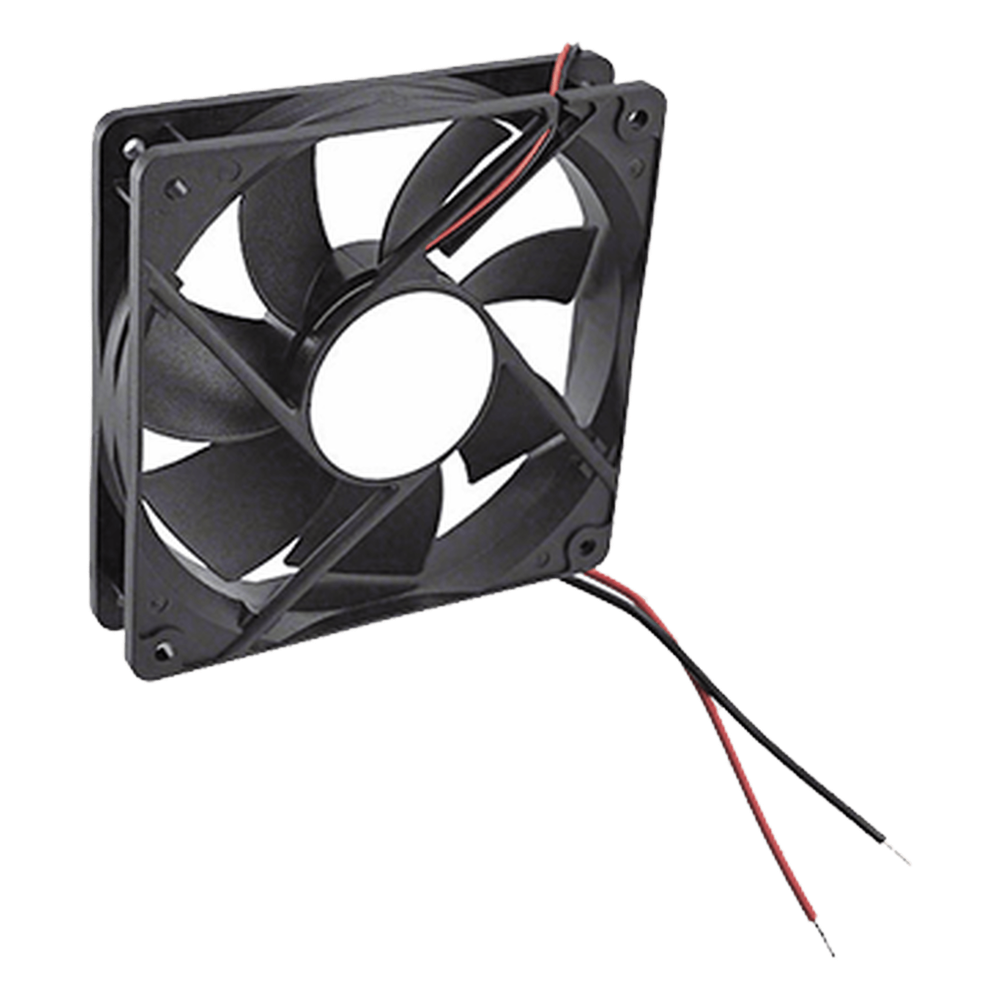

• Ventilador Anticondensante Axial Cuadrado, 12Vcc, 120x120x25 mm, 75.0 CFM, 1.9 W, 161 mA, 2200 RPM.
1 1

TXPRO

Ventilador Anticondensante Axial Cuadrado, 12Vcc, 120x120x25 mm, 75.0 CFM, 1.9 W, 161 mA, 2200 RPM

Ventilador Anticondensante Axial Cuadrado, 12Vcc, 120x120x25 mm, 75.0 CFM, 1.9 W, 161 mA, 2200 RPM

$ 519.32 MXN
$ 519.32 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.

Características Técnicas

  • Tensión nominal: 12 Vcc
  • Corriente nominal: 161 mA
  • Consumo de energía: 1.9 W
  • Velocidad: 2200 RPM ±10%
  • Flujo de aire: 75 CFM
  • Rango de voltaje: 6-13.8 Vdc
  • Temperatura operación: -10 a 70°C
  • Peso: 162 g

Especificaciones Técnicas

  • Diseño del motor: 4 polos, 2 fases sin escobillas
  • Sistema de rodamientos: Vapo
  • Dirección de rotación: Antihoraria desde el frente
  • Diámetro orificios: 4.3 mm
  • Material: PBT, UL94V-O plástico
  • Conexión: 2 cables 24AWG
  • Aislamiento: 10 MΩ entre cables y estator
  • Resistencia dieléctrica: 500 VAC por 1 minuto

Dimensiones

  • Dimensiones: 120 x 120 x 25 mm
  • Dimensiones en pulgadas: 4.72 x 4.72 x 0.98 pulgadas

Durabilidad

  • Vida útil: 70,000 horas a 40°C
  • Nivel de ruido: 34 dB
Aplicaciones
  • Sistemas de control industrial
  • Equipos electrónicos sensibles
  • Armarios eléctricos
  • Equipos de telecomunicaciones
Características Constructivas
  • Protección contra condensación
  • Diseño compacto
  • Fácil instalación
  • Bajo mantenimiento
