Relevador de 4 pines para tarjetas impresas Through-Hole de 12 Vcc, 31 Amp
Relevador de 4 pines para tarjetas impresas Through-Hole de 12 Vcc, 31 Amp
Couldn't load pickup availability

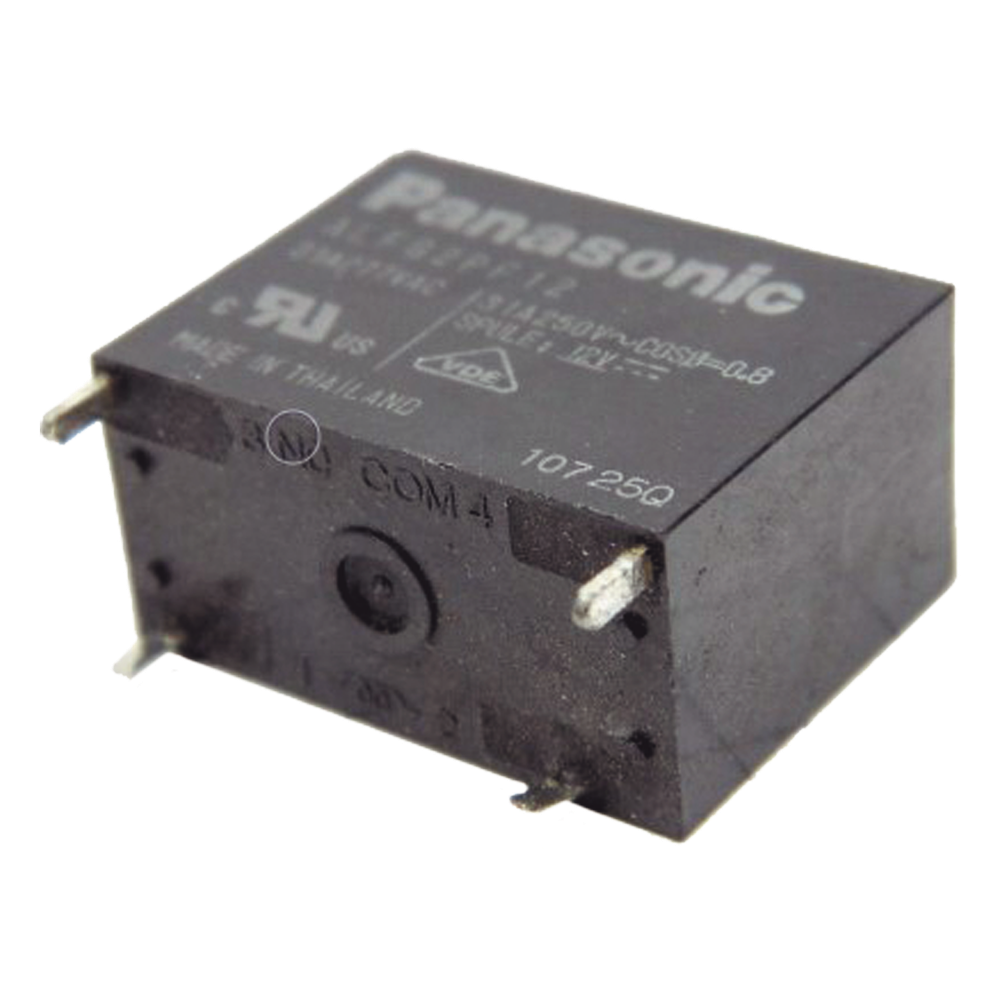

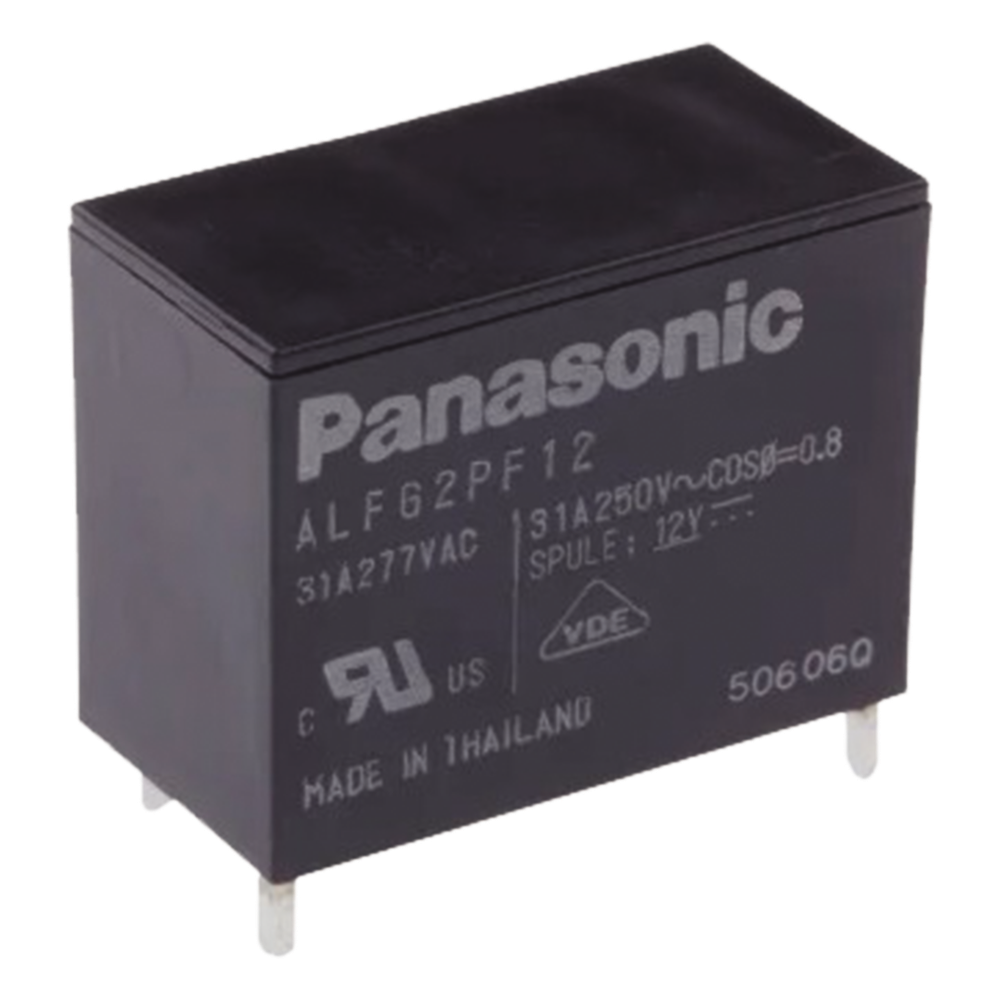

El Relé de Potencia ALFG2PF12 de Panasonic es una solución compacta, confiable y robusta, diseñada para aplicaciones de alta demanda. Este modelo cuenta con un diseño de 1 polo, que asegura un rendimiento eficiente y una operación sin enclavamiento.
Especificaciones
- Tensión nominal de la bobina: 12 Vcc.
- Forma del terminal: Terminal de la placa de circuito impreso
- Disposición de los contactos: 1 Forma A
- Distancia de contacto: 1.5 mm y 1.8 mm.
- Capacidad de los contactos (carga resistiva): 31 A 250 Vca
- Tiempo de funcionamiento (inicial): Máx. 20 ms a tensión nominal de bobina.
- Tamaño compacto: l:15.7 × a: 30.1 × h: 23.3 mm
Aplicaciones
- En equipos de Generación de energía fotovoltaica
- Sistemas de alimentación ininterrumpida (SAI)
- Electrodomésticos
- Equipos de oficina
