ANDREW / COMMSCOPE

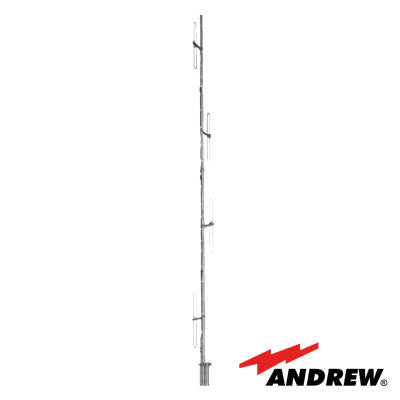

Antena Base VHF, de 4 Dipolos, Rango de Frecuencia 150-160 MHz
Antena Base VHF, de 4 Dipolos, Rango de Frecuencia 150-160 MHz
Couldn't load pickup availability
Características Principales
- Antena VHF de 4 dipolos para señal estable
- Rango de frecuencia de 150-160 MHz
- Ganancia ajustable de 6 / 9 dB
- Soporta potencia máxima de 500 watts
- Resistencia al viento de hasta 129 km/h
Especificaciones Eléctricas
- Rango de Frecuencia: 150–160 MHz
- Ganancia: 8.1 dBi
- Ancho de Banda Horizontal: 360°
- Ancho de Banda Vertical: 16.0°
- VSWR: 1.5 | Return Loss: 14.0 dB
- Potencia Máxima: 500 Watts
- Polarización: Vertical
- Impedancia: 50 ohm
Especificaciones Mecánicas
- Marca: Andrew®
- Tipo: Omni, dipolo expuesto
- Color: Plata
- Protección contra rayos: Tierra directa
- Material: Aluminio
- Conector RF: N Macho
- Ubicación del Conector: Inferior
- Cantidad de Conectores: 1
- Resistencia al viento: 129 km/h | 80 mph
- Carga por viento: 560.5 N @ 100 mph
- Dimensiones: 6477.0 mm | 255.0 in
- Peso: 15.9 kg | 35.0 lb
Conformidad Regulatoria
- RoHS: 2011/65/EU Compliant by Exemption
- China RoHS: SJ/T 11364–2006 Above Maximum Concentration Value (MCV)
Aplicación
- Uso: Exterior
- Band: Banda única
- Montaje: Incluye kit de montaje DB365-OS para tubos de 35–89 mm
