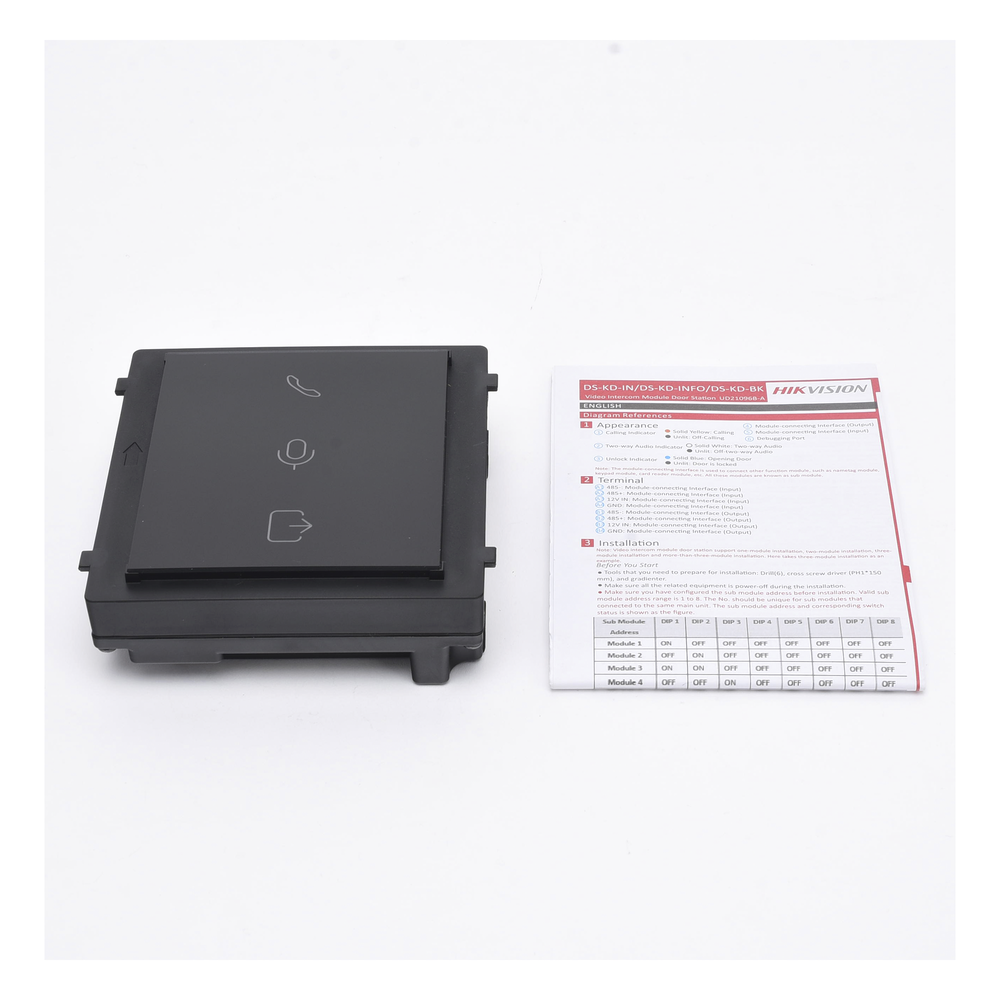

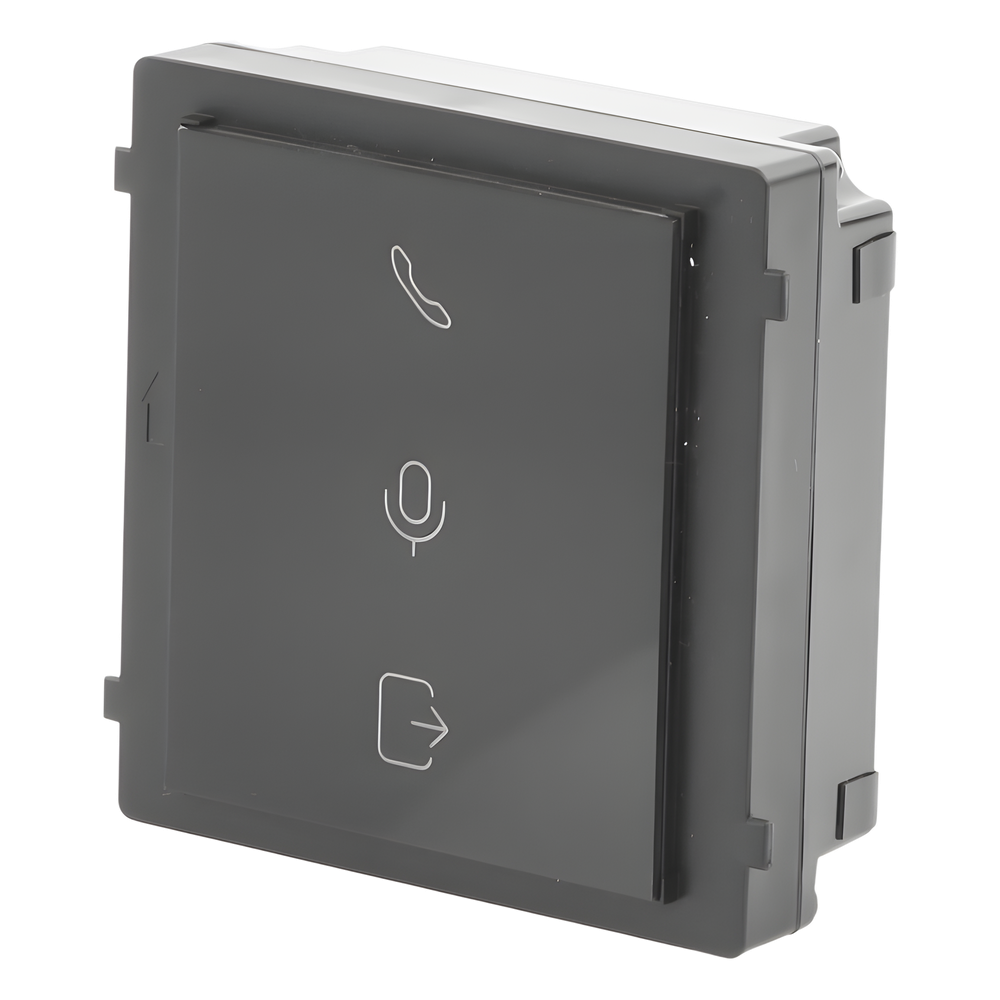

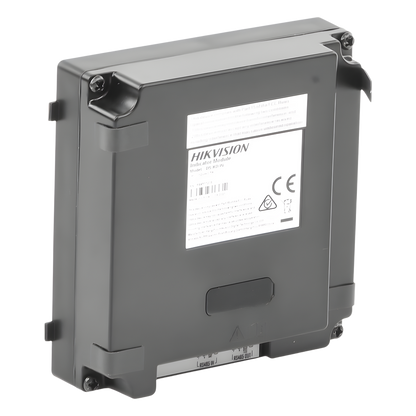

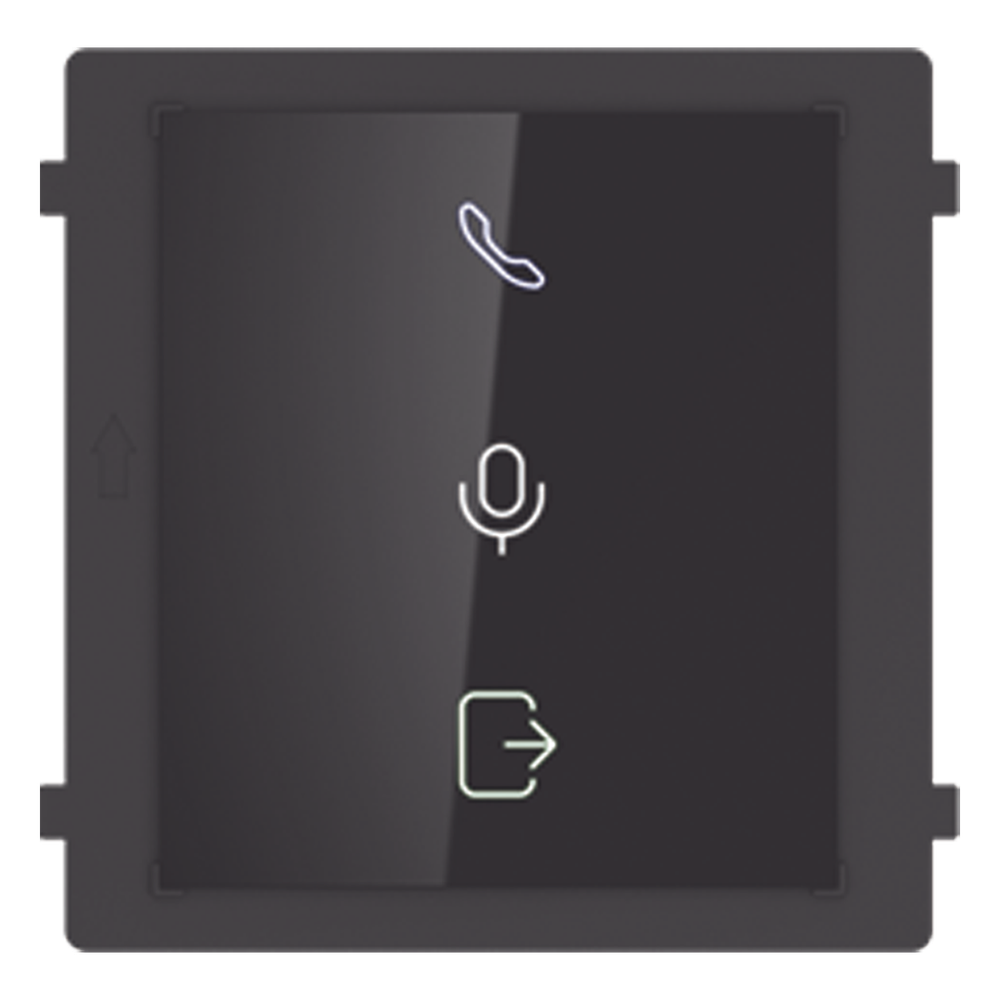

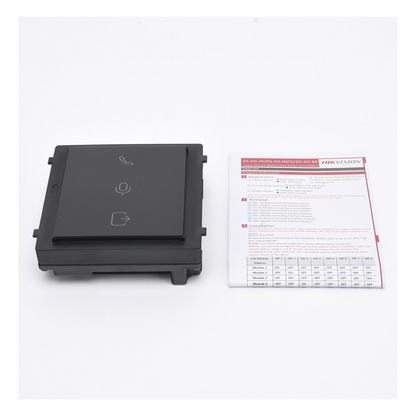

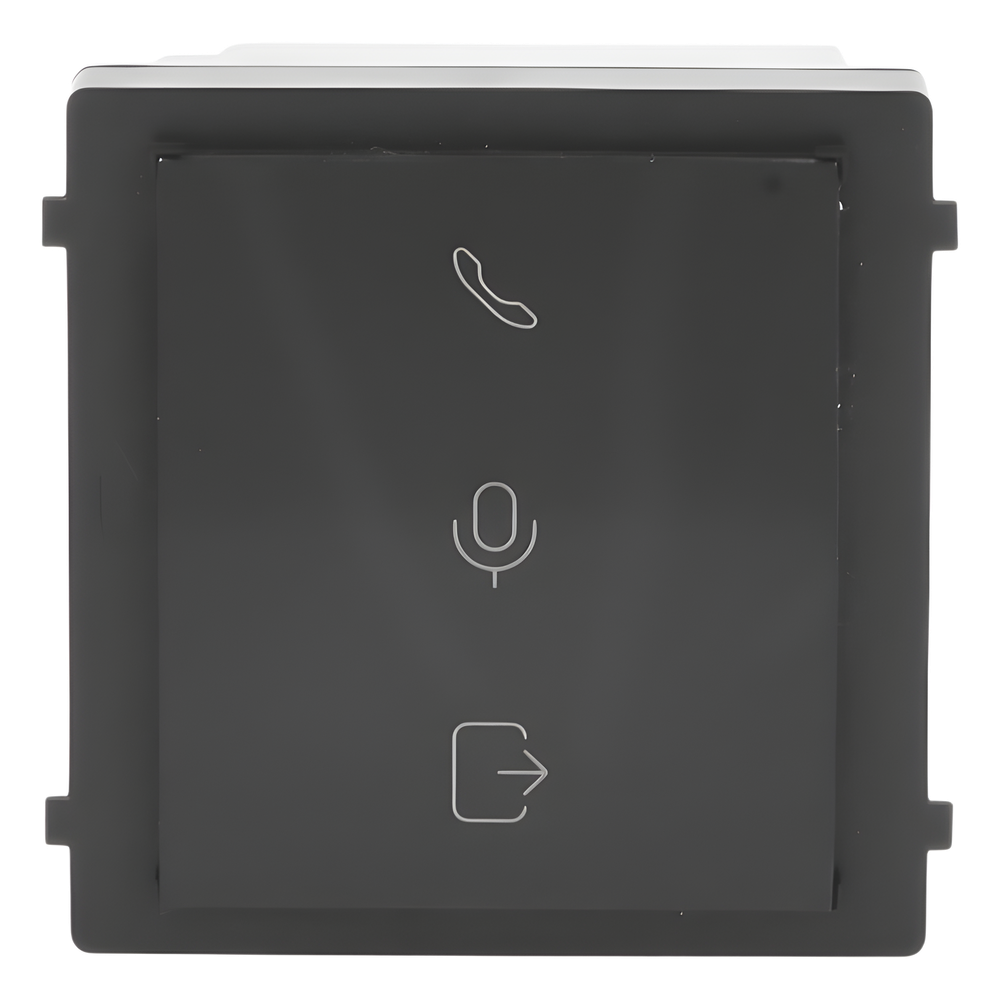

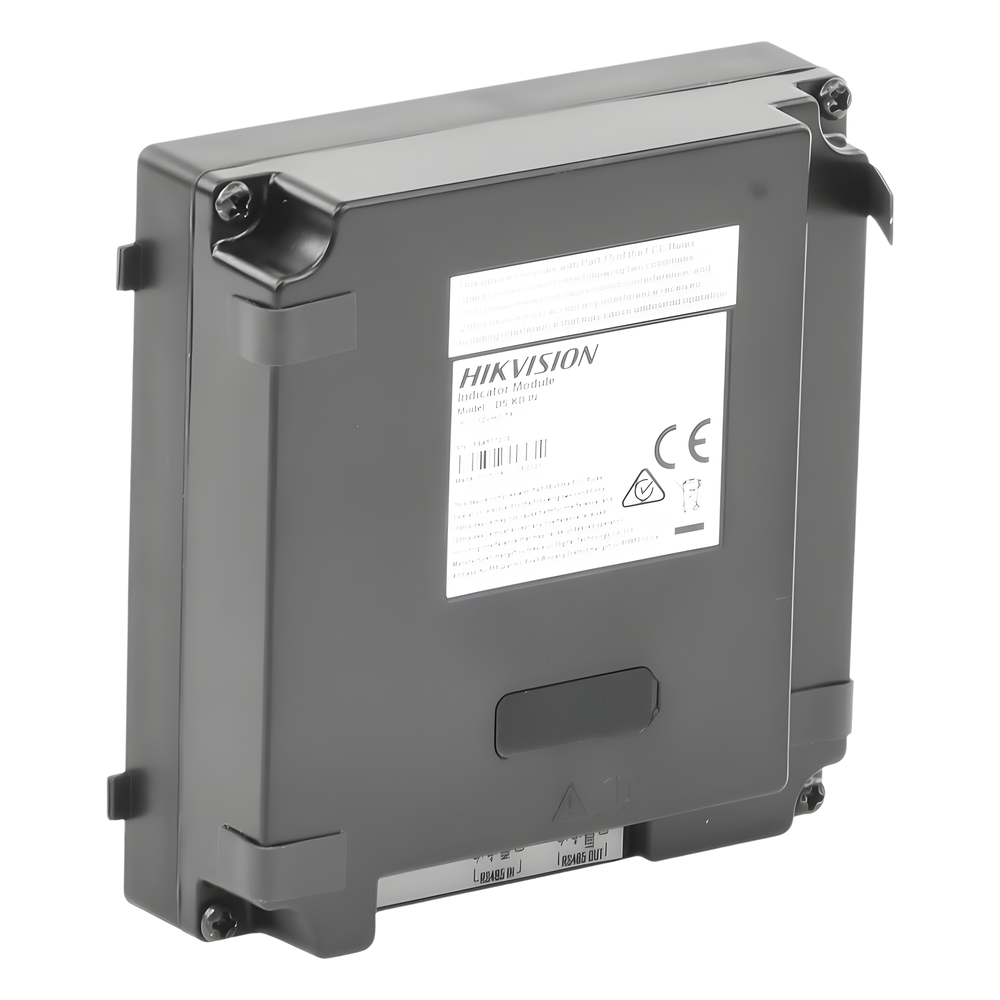

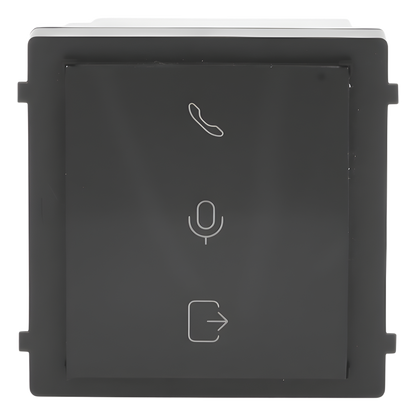

Modulo para Indicar Recepción de Llamada / Apertura de Puerta o Audio Bidireccional en Videoportero IP Modular
Modulo para Indicar Recepción de Llamada / Apertura de Puerta o Audio Bidireccional en Videoportero IP Modular
Couldn't load pickup availability
Características del Frente de calle Multiapartamento DS-KD-IN
- Indicador de recepción de llamada
- Indicador apertura de puerta
- Indicador de audio bidireccional
- Compatible con montaje empotrado o en superficie
Características Físicas y Eléctricas
- Alimentación mediante el módulo DS-KD8003-IME1
- Consumo eléctrico: 2 W
- Nivel de protección: IP65
- Material: Plástico
- Temperatura de operación: -40° C a +60° C (-40° F a 140° F)
- Dimensiones: 98.21 mm × 100.21 mm × 33.7 mm (3.87' × 3.95' × 1.33')
Características Destacadas
Se conecta en cascada para alimentación y/o datos al módulo principal DS-KD8003-IME1 o a cualquier submódulo adicional
- DS-KD-KK
- DS-KD-KP
- DS-KD-BK
- DSKDIN
- DSKDE

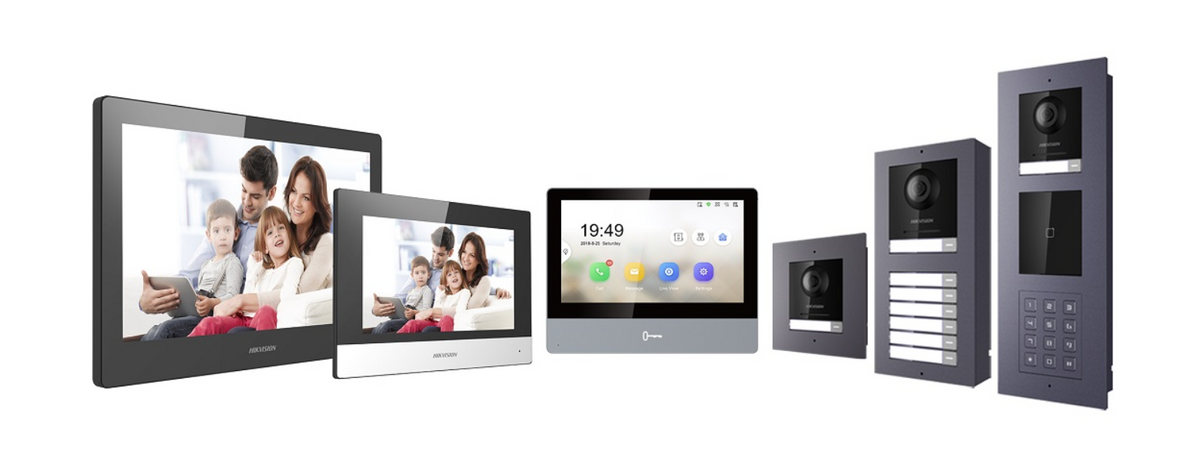

Compatible con monitores:
- DS-KH6320-WTE1
- DS-KH8350-WTE1
- DS-KH8520-WTE1
- DS-KH6320-TE1
Consideraciones
- Este módulo se utiliza como complemento en sistemas de videoportero IP Modular
- Requiere conexión con módulo principal para funcionamiento
- Instalación recomendada en áreas protegidas contra intemperie
Diagrama de conexión
