DITEK
Protector Coaxial PoE / BNC Hembra / 75 Ohms / Ethernet 10/100 / Cámaras IP y Extensores
Protector Coaxial PoE / BNC Hembra / 75 Ohms / Ethernet 10/100 / Cámaras IP y Extensores
Couldn't load pickup availability

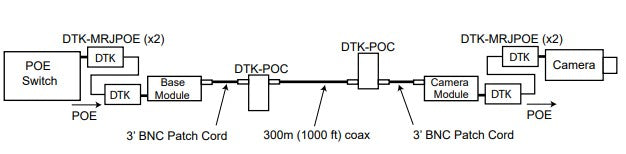

El DTK-POC proporciona protección contra sobretensiones de energía, vídeo y datos para Ethernet y extensores PoE sobre coaxial y está preparado para PoE Plus y High PoE para aplicaciones de alto voltaje.
Características principales:
- Protege la alimentación, el vídeo y los datos de las cámaras IP.
- Conexiones BNC hembra de entrada/salida con tornillo de conexión a tierra externo.
- Velocidad de datos Ethernet sin degradación de la señal.
- Tamaño reducido para facilitar su instalación.
- Incluye contactos secos para notificación remota del estado de protección contra sobretensiones.
- El filtrado EMI/RFI garantiza energía limpia para los equipos conectados.
- Voltaje de Operación: <60 V
- Corriente Máxima: 100 A
- Máxima Corriente Continua: 500 mA
- Velocidad de Datos: Ethernet 10/100 BASE-T
- Perdida de Inserción: -0.048 dB (10 MHz) / -0.035 dB (100 Mhz)
- Impedancia: 75 Ohms
- Método de Conexión: Entrada / Salida Hembra BNC
- Caja: ABS
- Temperatura de Operación: (-40°C - 70°C)
- Humedad Máxima: 95% sin condensación.
- Dimensiones: 55.6 x 81.3 x 25.4 mm (Largo x Ancho x Alto)
- Peso: 71 gr.
- Certificación: UL497B
