HUAWEI

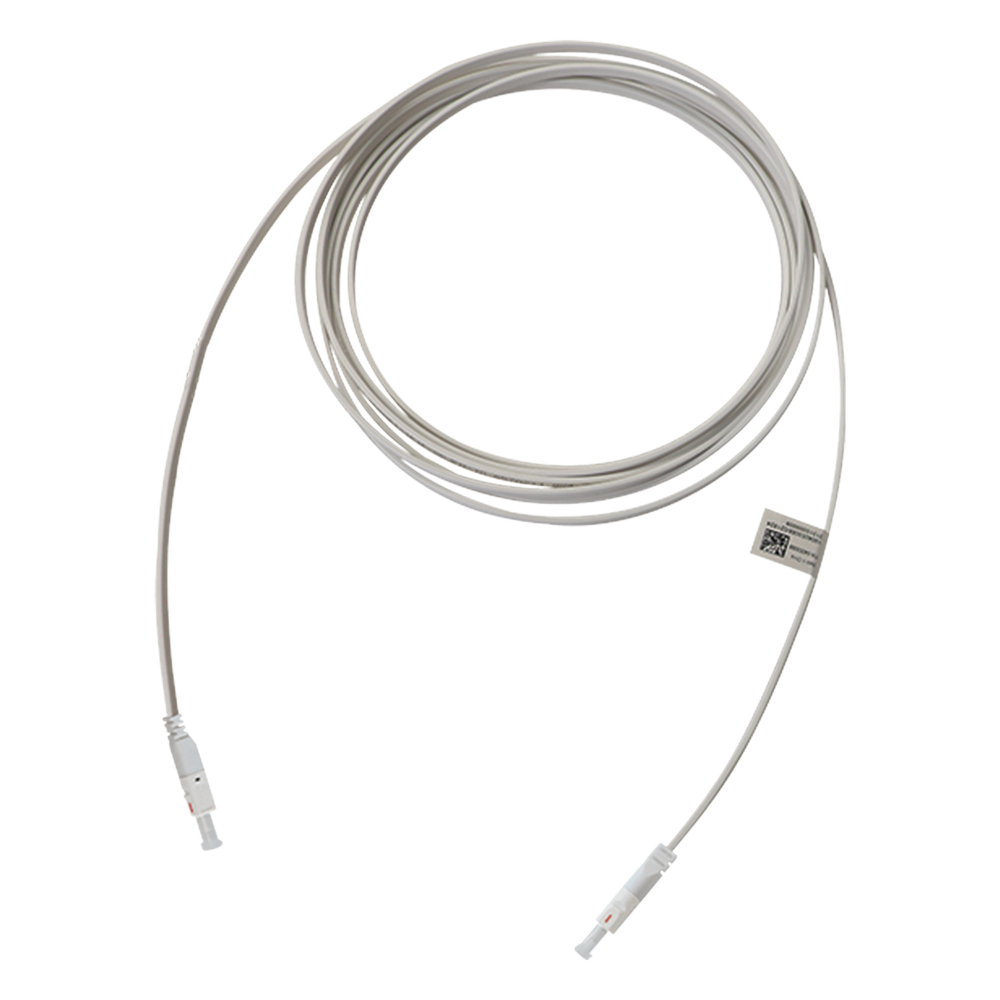

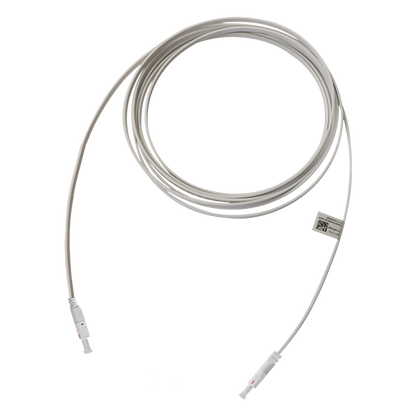

HUAWEI MiniFTTO - Cable Hibrido Fotoeléctrico / Monomodo / (XC/UPC)-(XC/UPC)/ Interior / Fibra G.657A2 / Cobre 26 AWG / 60m

HUAWEI MiniFTTO - Cable Hibrido Fotoeléctrico / Monomodo / (XC/UPC)-(XC/UPC)/ Interior / Fibra G.657A2 / Cobre 26 AWG / 60m

Regular price $ 855.26 MXN
Regular price Sale price $ 855.26 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Características Principales

  • Cable monomodo de 60m
  • Diámetro compacto de 1.8*4.2mm
  • Conectores XC/UPC en ambos extremos
  • Fibra tipo G.657A2 para alto rendimiento
  • Color: Blanco
Especificaciones Generales
  • Tipo: Cable híbrido fotoeléctrico
  • Ambiente: Interior
  • Empaquetado: Empaquetado independiente
  • Temperatura de operación: –10°C a +60°C
  • Humedad: 0% a 95% a 40°C
  • Temperatura de instalación mínima: –10°C
  • Temperatura de transporte: –15°C a +60°C
  • Tensión operativa (DC): 48-56 V
  • Corriente operativa (DC): 0.25 A
  • Rating de retardante de llama: UL94-V0
Especificaciones de Fibra
  • Modo: Monomodo
  • Tipo de fibra: G.657A2
  • Atenuación máxima: 1310 nm: 0.35 dB/km / 1550 nm: 0.21 dB/km
  • Color de fibra: Transparente
  • Estándares ópticos: IEC 60794, ITU G.657
Especificaciones Eléctricas
  • Resistencia de aislamiento: ≥ 500 MΩ
  • Tensión dieléctrica: Menos de 0.5 mA a 1000 V por 1 minuto
  • Prueba de continuidad: Sin cortocircuitos o circuitos abiertos
  • Resistencia óhmica: Rtest ≤ (Rcable) + 2 x 50 mΩ
  • Estándares eléctricos: GB/T 5023.2, IEC 61156-1-4
Especificaciones Mecánicas
  • Resistencia a tensión: Corto plazo: 150 N / Largo plazo: 80 N
  • Resistencia a aplastamiento: Corto plazo: 2200 N/100mm / Largo plazo: 1100 N/100mm
  • Radio de curvatura mínimo: Estático: 18 mm / Dinámico: 36 mm
  • Prueba de curvatura: 8 ciclos de ±90° sin grietas y sin circuitos abiertos o cortocircuitos

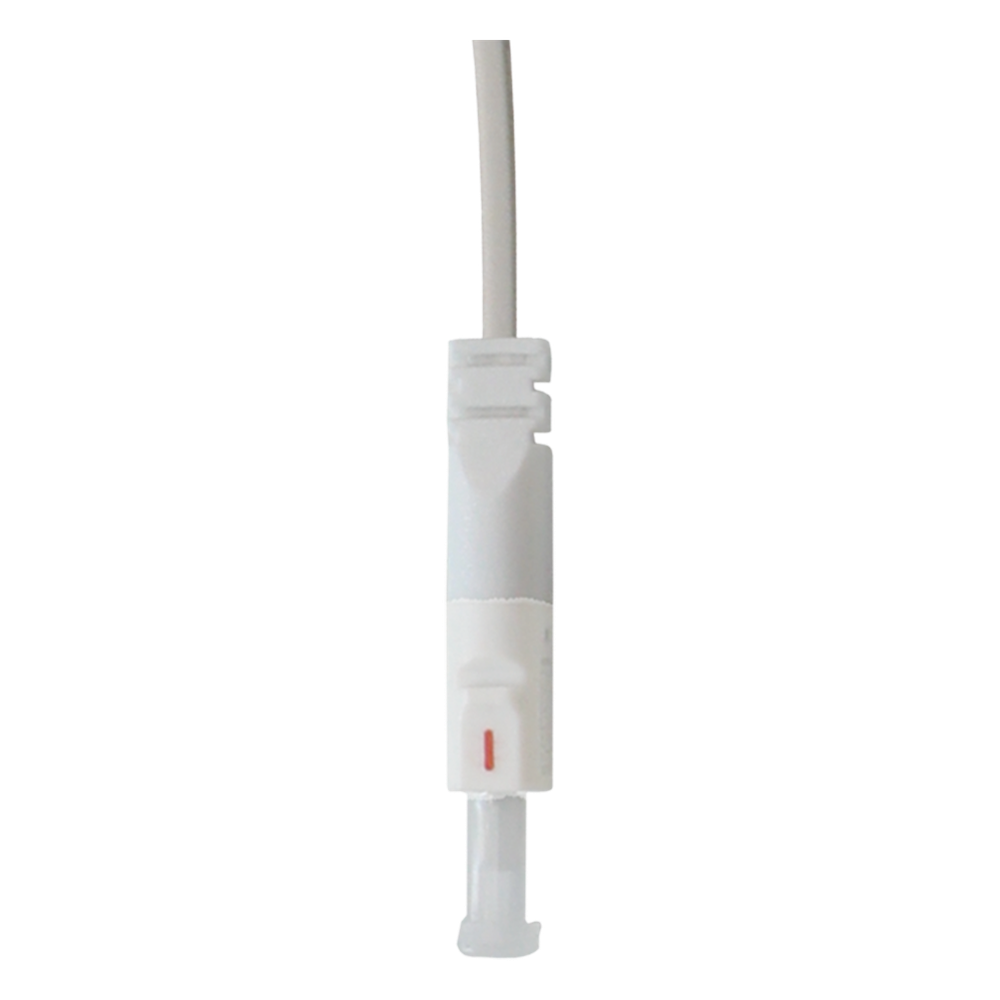

Conector XC/UPC
  • Pérdida de inserción: ≤ 0.50 dB
  • Pérdida de retorno: ≥ 50 dB
  • Fuerza de tensión: 70 N
  • Conexiones mínimas: ≥ 50 veces
  • Dimensiones: 6.5 mm x 6 mm x 27 mm

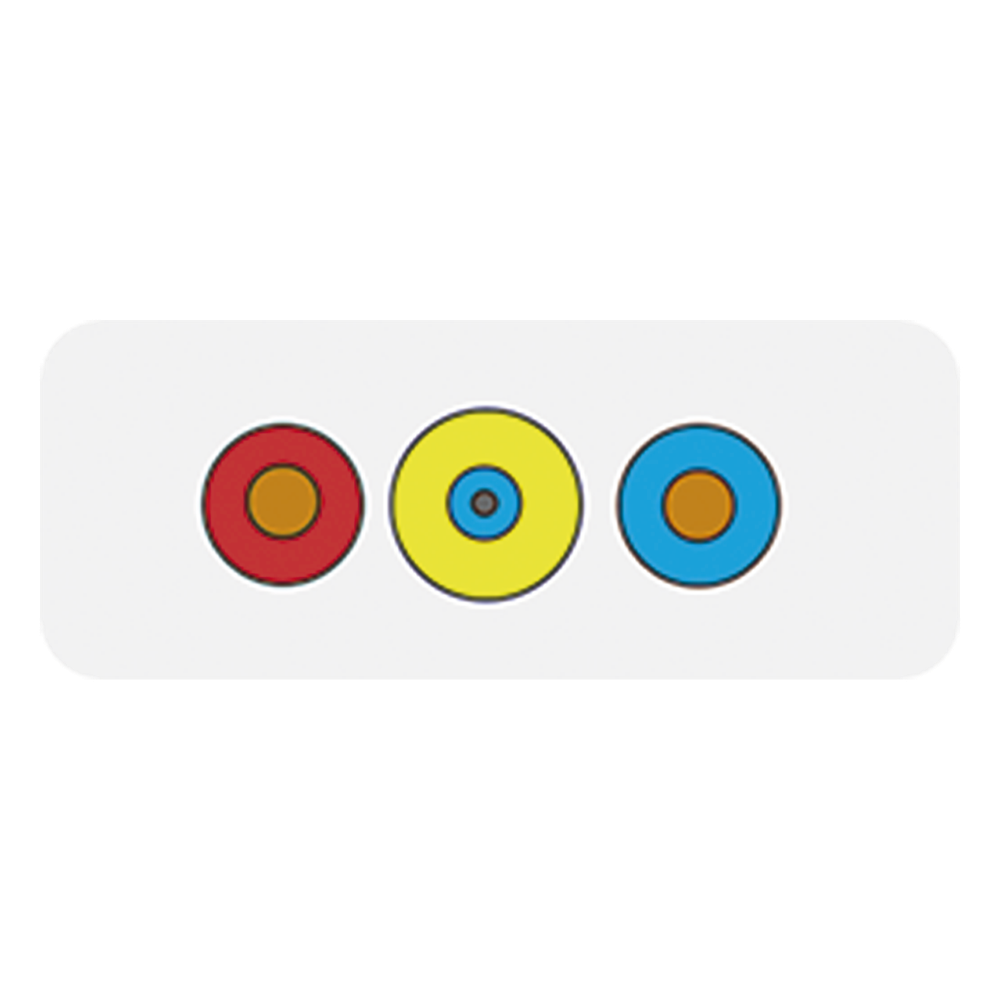

Construcción del Cable
  • Núcleos de fibra: 1
  • Diámetro del tubo ajustado: 0.6 mm
  • Material del tubo ajustado: LSZH
  • Conductor: Cobre 26 AWG (2 conductores)
  • Aislamiento: PVC, color rojo (positivo) y azul (negativo)
  • Revestimiento exterior: PVC, color marfil
  • Peso: 12 kg/km
  • Longitudes disponibles: 10/15/20/30/40/50/60/80 m

Estándares y Certificaciones

  • IEC 60794
  • ITU G.657
  • GB/T 5023.2
  • IEC 61156-1-4
  • IEC 60332-1
  • RoHS 2.0 Compliant

Aplicaciones

  • Redes de fibra óptica en interiores
  • Sistemas de distribución de señal
  • Instalaciones de telecomunicaciones
  • Conexiones punto a punto
  • Sistemas de alimentación remota
