ANDREW / COMMSCOPE

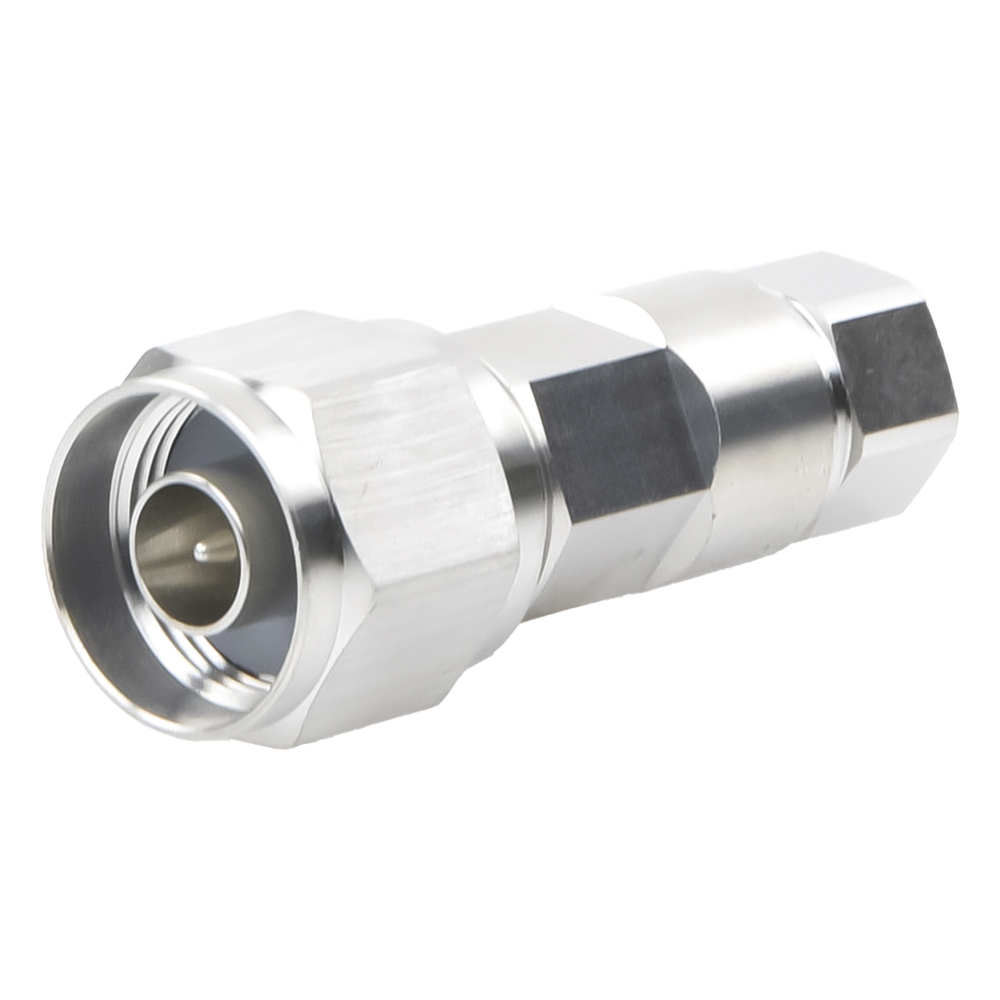

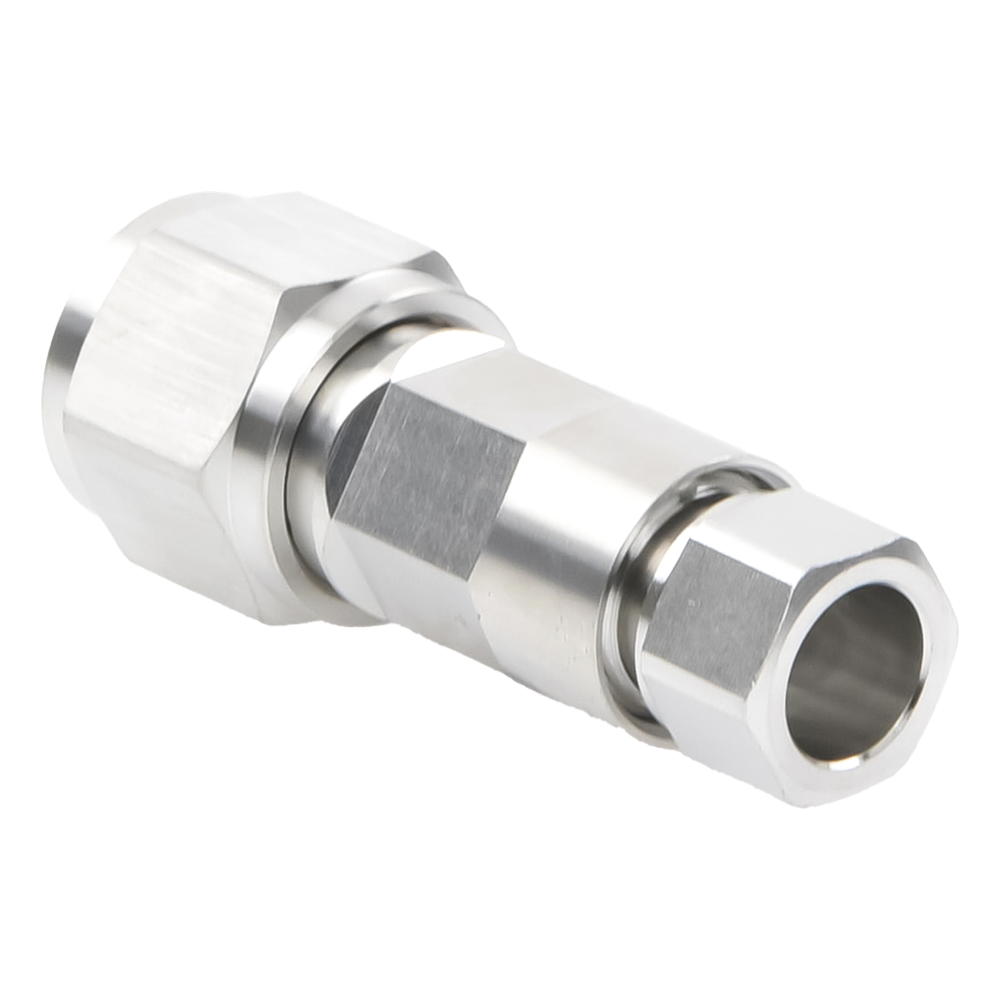

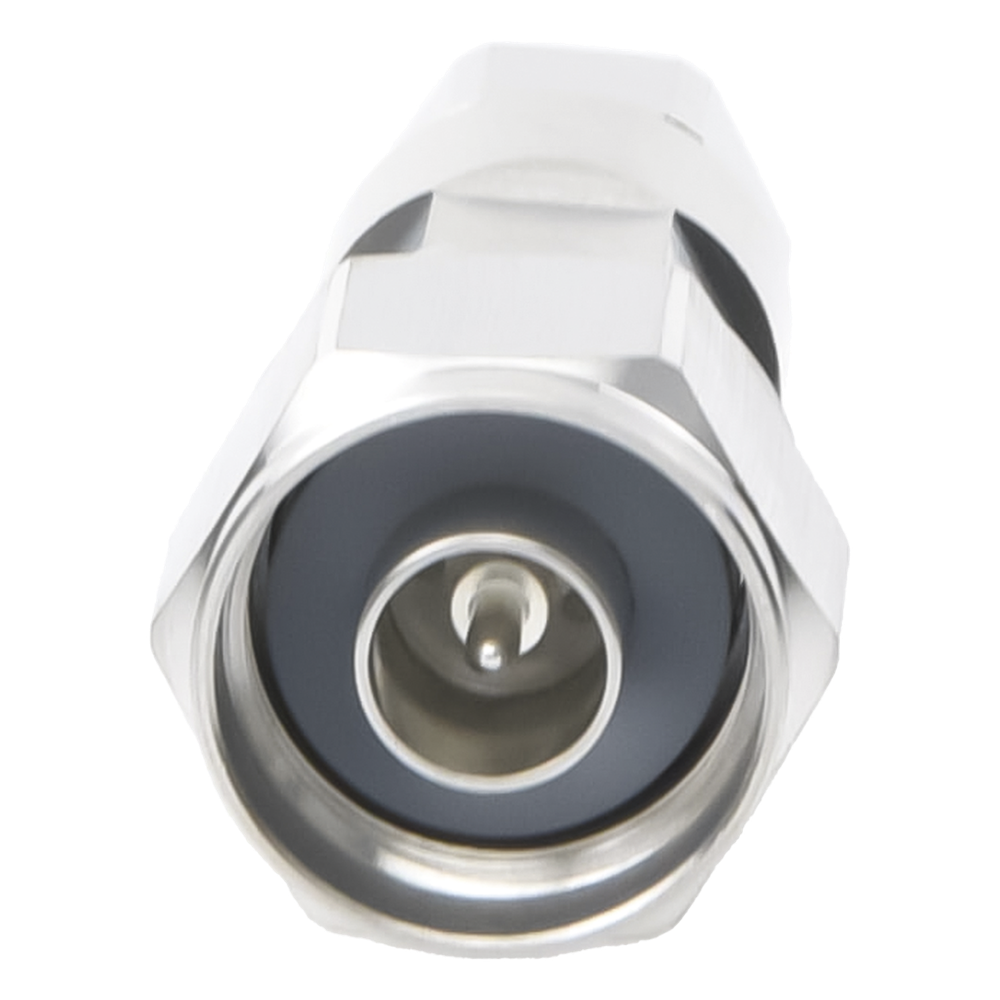

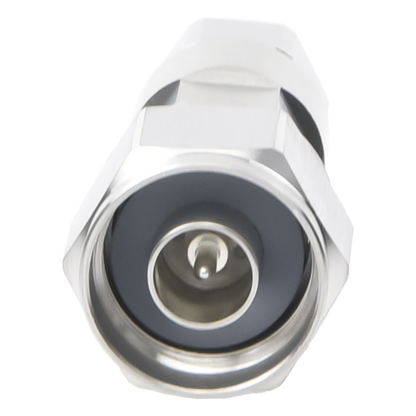

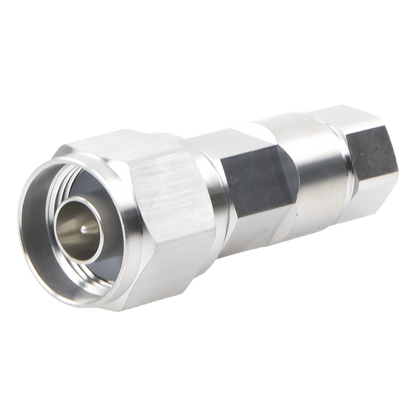

Conector N Macho para cable FSJ1-50A
Conector N Macho para cable FSJ1-50A
Couldn't load pickup availability
Especificaciones Generales
- Interface: N Macho
- Estilo: Derecho
- Marca: HELIAX®
- Angulo de montaje: Derecho
Especificaciones eléctricas
- Impedancia de connector: 50 ohm
- Banda de frecuencia de funcionamiento: 0 – 18000 MHz
- Impedancia de cable: 50 ohm
- 3ra Orden IMD, typica: -116 dBm a 910 MHz
- 3ra Orden IMD metodo de prueba: 2 carriers de +43 dBm
- RF voltaje de operación, máximo (vrms): 565.00 V
- CD prueba de voltaje: 1600 V
- Resistencia del contacto externo, máximo: 0.25 mOhm
- Resistencia del contacto interno, máximo: 1.00 mOhm
- Resistencia del aislamiento, mínimo: 5000 MOhm
- Poder promedio: 0.4 kW a 900 MHz
- Pico de poder, máximo: 6.40 kW
- Blindaje effectivo: -110 dB
Para cables coaxiales FSJ1-50A
Herramientas recomendadas:
MCPT-1412 -- Herramienta manual para preparar cable Heliax.
