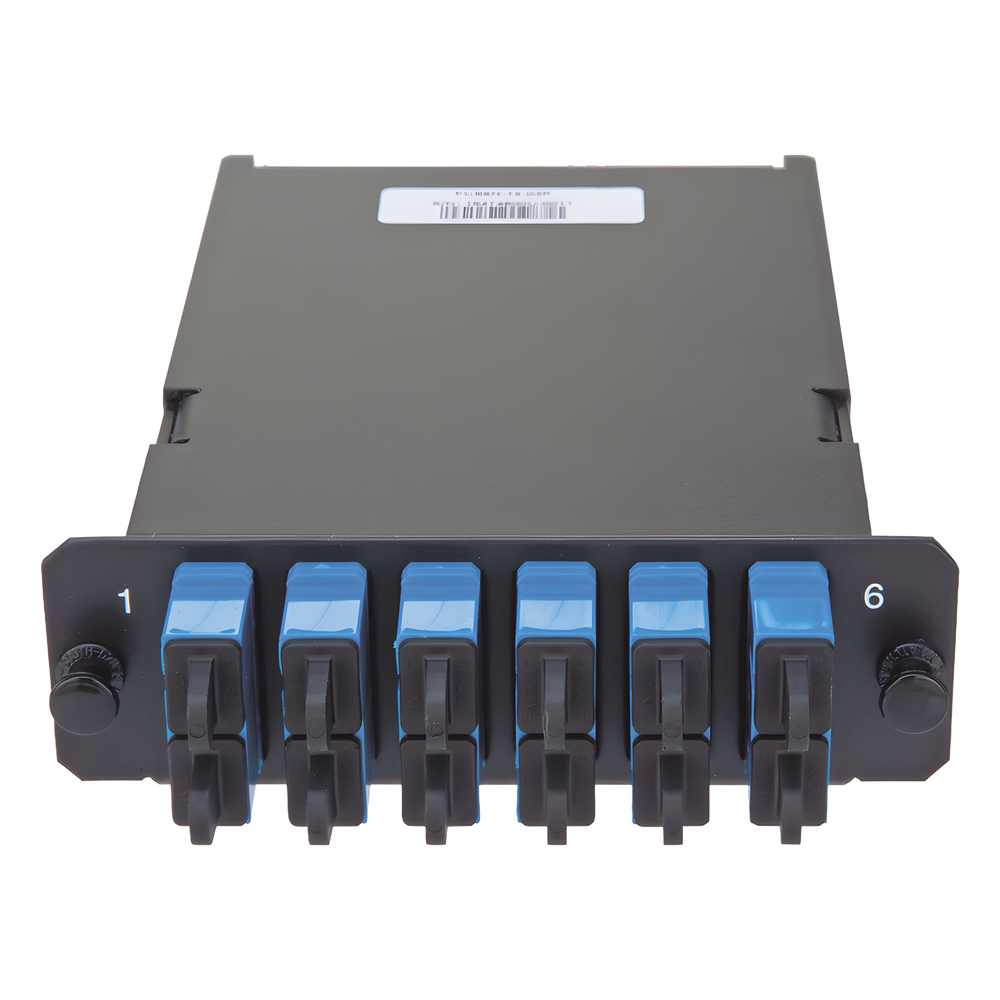

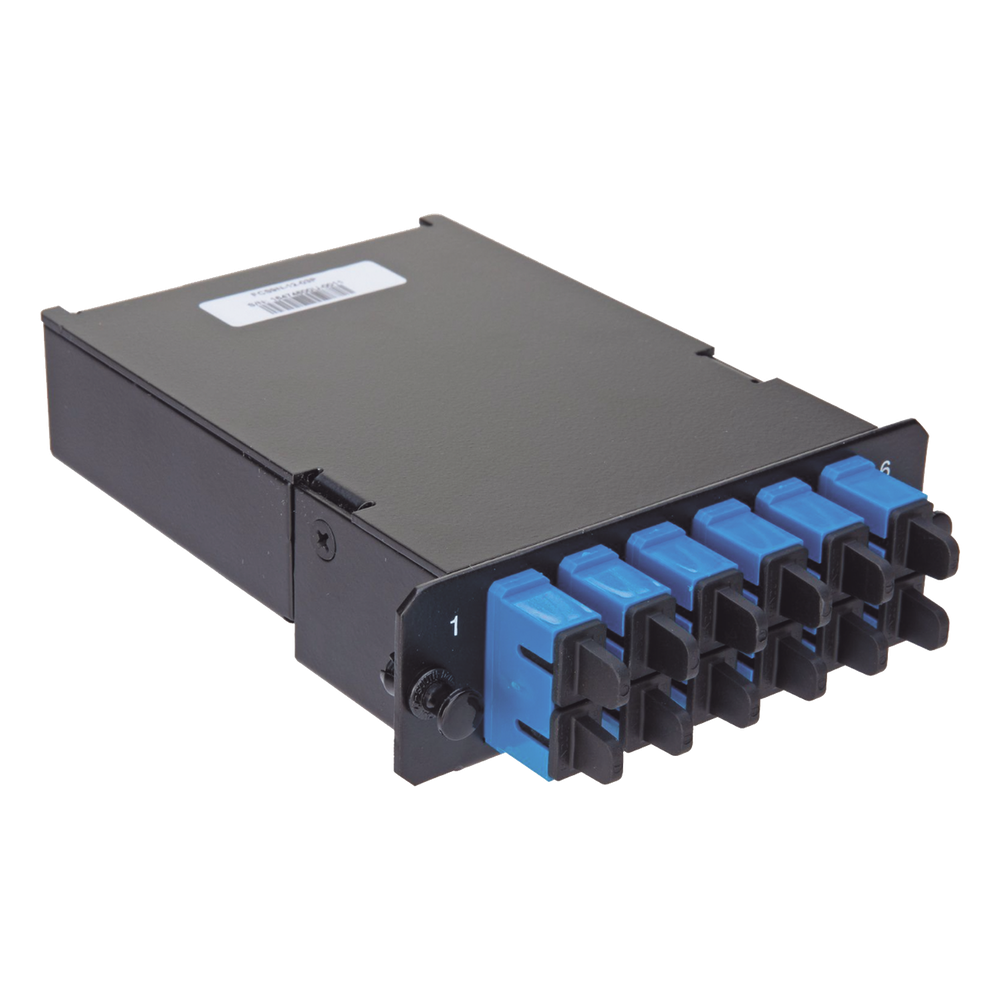

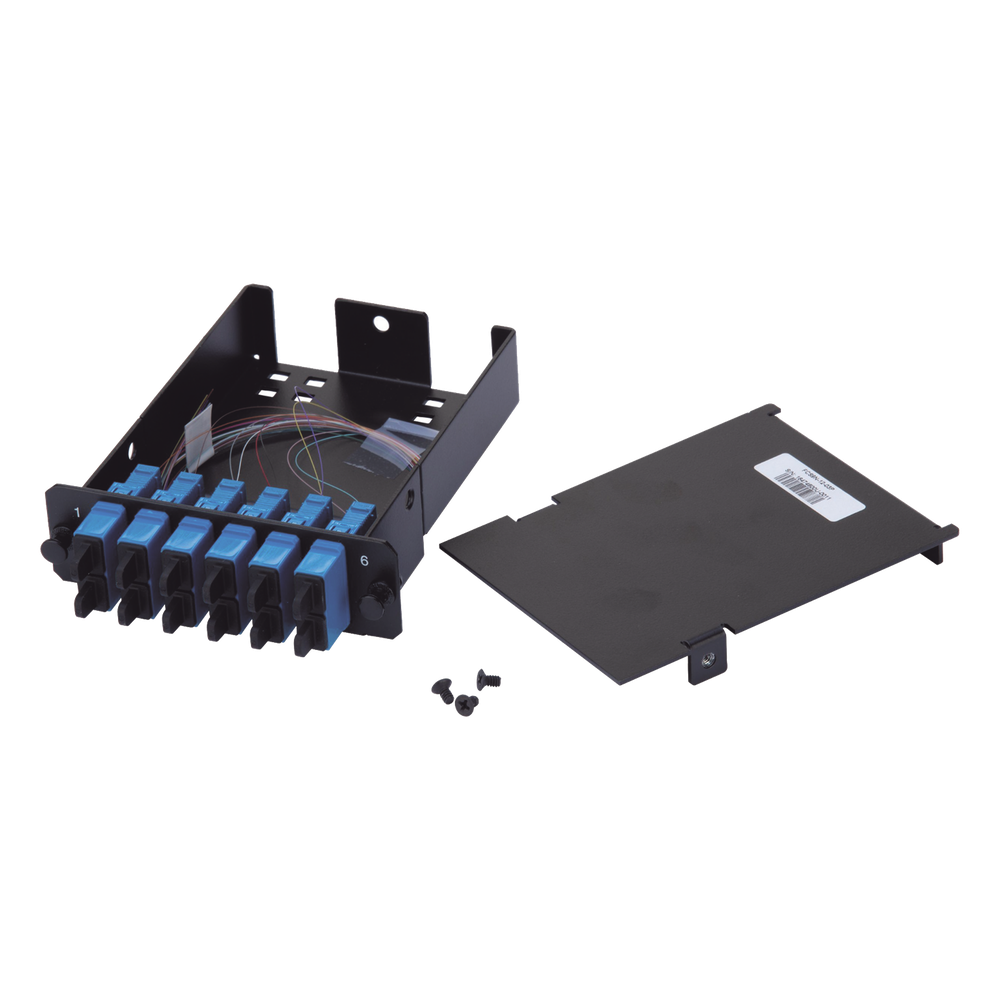

Placa Acopladora de Fibra Óptica FAP, Con 12 Pigtails y 6 Conectores LC Duplex (12 Fibras), Para Fibra Monomodo OS1/OS2, Color Azul

Placa Acopladora de Fibra Óptica FAP, Con 12 Pigtails y 6 Conectores LC Duplex (12 Fibras), Para Fibra Monomodo OS1/OS2, Color Azul

$ 10,771.63 MXN
$ 10,771.63 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.

Descripción

Los casetes de fibra óptica de Opticom constan de adaptadores de fibra y cables de fibra preterminados para realizar empalmes rápidos y sencillos en aplicaciones de alta densidad. Las opciones de conector incluyen adaptadores LC, LC/APC, SC y SC/APC para aplicaciones multimodo o monomodo. Los casetes de empalme están disponibles con pigtails de 250 μm y pigtails tipo Ribbon. Incluyen todos los accesorios necesarios para el empalme en campo; protectores de empalme, soportes de empalme y cinchos para cables para asegurar el cable entrante al cuerpo del casete. Los colores de las fibras y los adaptadores siguen el esquema de identificación de colores sugerido por TIA/EIA-568-C.3. Los casetes son compatibles con todos los gabinetes Opticom (FRME*, FCE*, FWME*) y paneles de conexión.

Especificaciones Técnicas
  • Número de fibras: 12
  • Tipos de fibras: Monomodo OS2
  • Conectividad frontal: 6 conectores LC Duplex
  • Incluye: 12 Pigtails de 1 metro cada uno
  • Pérdida de inserción: 0.35 db
  • Pérdida de retorno: Por fibra: >55 dB Monomodo
  • Cumplimiento de conectores: TIA/EIA-568C.3 A.4.9
  • Durabilidad: 500 ciclos de acoplamiento
View full details
