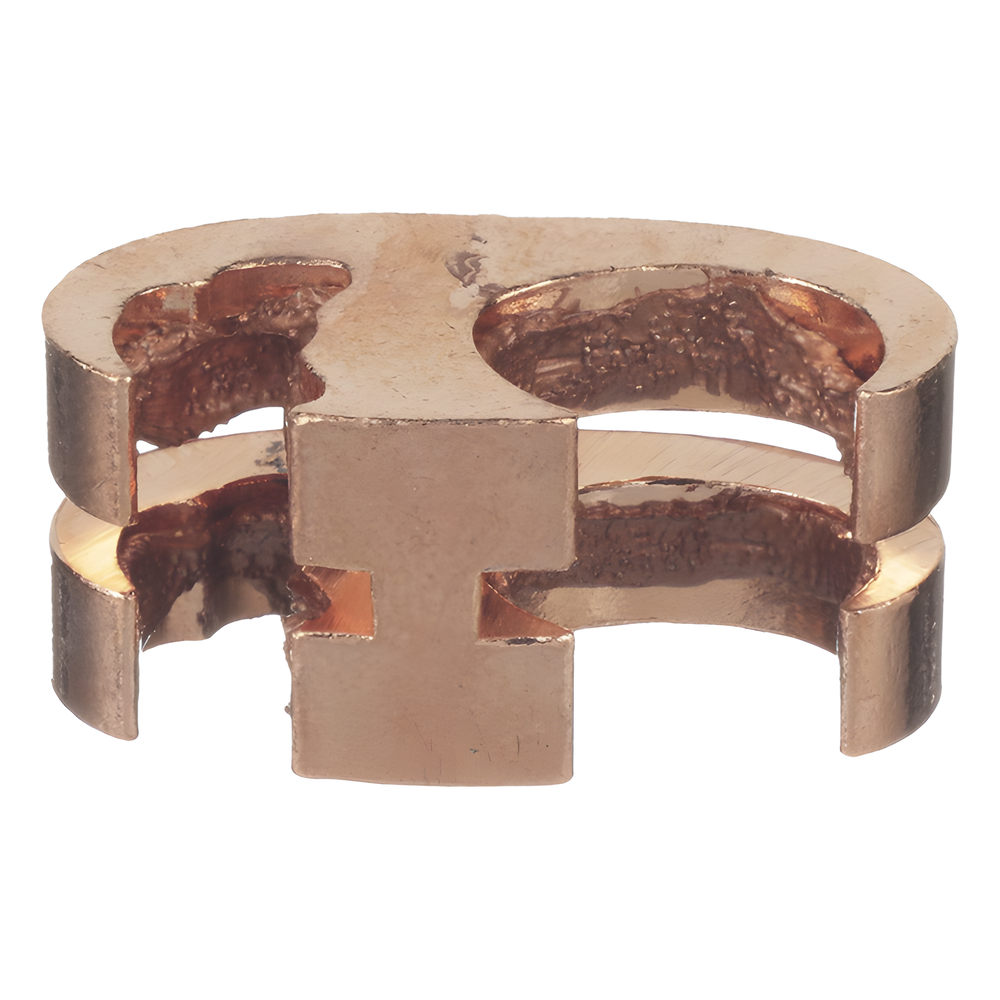

Conector de Conexión Tierra tipo "E" para Conductor de Cobre 6 AWG SOL – 1/0 AWG STR (16–50 mm2)

Conector de Conexión Tierra tipo "E" para Conductor de Cobre 6 AWG SOL – 1/0 AWG STR (16–50 mm2)

$ 401.19 MXN
$ 401.19 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.

Características Generales

  • Conector de conexión a tierra estilo 'E' para conductor de cobre
  • Rango de calibre: 6 AWG SOL – 1/0 AWG STR (16–50 mm²)
  • Diseño ranurado para ensamblaje rápido y fácil
  • Compuesto antioxidante conductivo preaplicado
  • Cumple con IEEE 837-2002 y revisión 2014
  • Certificado UL467 y CSA para toma de tierra y unión
  • Diseñado para enterrarse en tierra o en concreto
  • Diseño multiconductor con mínima cantidad de piezas

Aplicaciones

  • Sistemas de puesta a tierra
  • Instalaciones eléctricas industriales
  • Sistemas de protección contra rayos
  • Instalaciones de telecomunicaciones
  • Sistemas de seguridad eléctrica
Especificaciones Técnicas
  • Modelo: GCE1/0-1/0-L
  • Material: Cobre
  • Tipo de conductor: 6 AWG SOL – 1/0 AWG STR
  • Rango de calibre: 16–50 mm²
  • Estándares: IEEE 837-2002, UL467, CSA
Ventajas
  • Conexión segura y duradera
  • Fácil instalación
  • Diseño compacto y ergonómico
  • Resistente a la corrosión
  • Compatibilidad con múltiples tamaños de conductor
