Multicontacto Horizontal (PDU) de 10 Contactos (NEMA 5-15R) Rack 19" 1UR. Voltaje Entrada/Salida: 120Vca/15A
Multicontacto Horizontal (PDU) de 10 Contactos (NEMA 5-15R) Rack 19" 1UR. Voltaje Entrada/Salida: 120Vca/15A
Couldn't load pickup availability

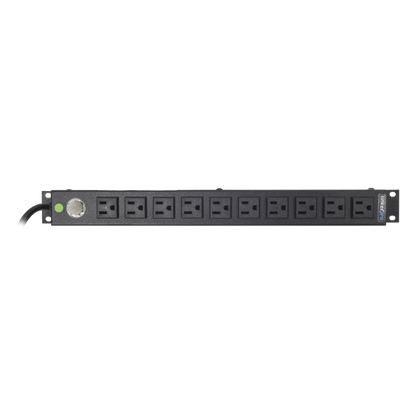

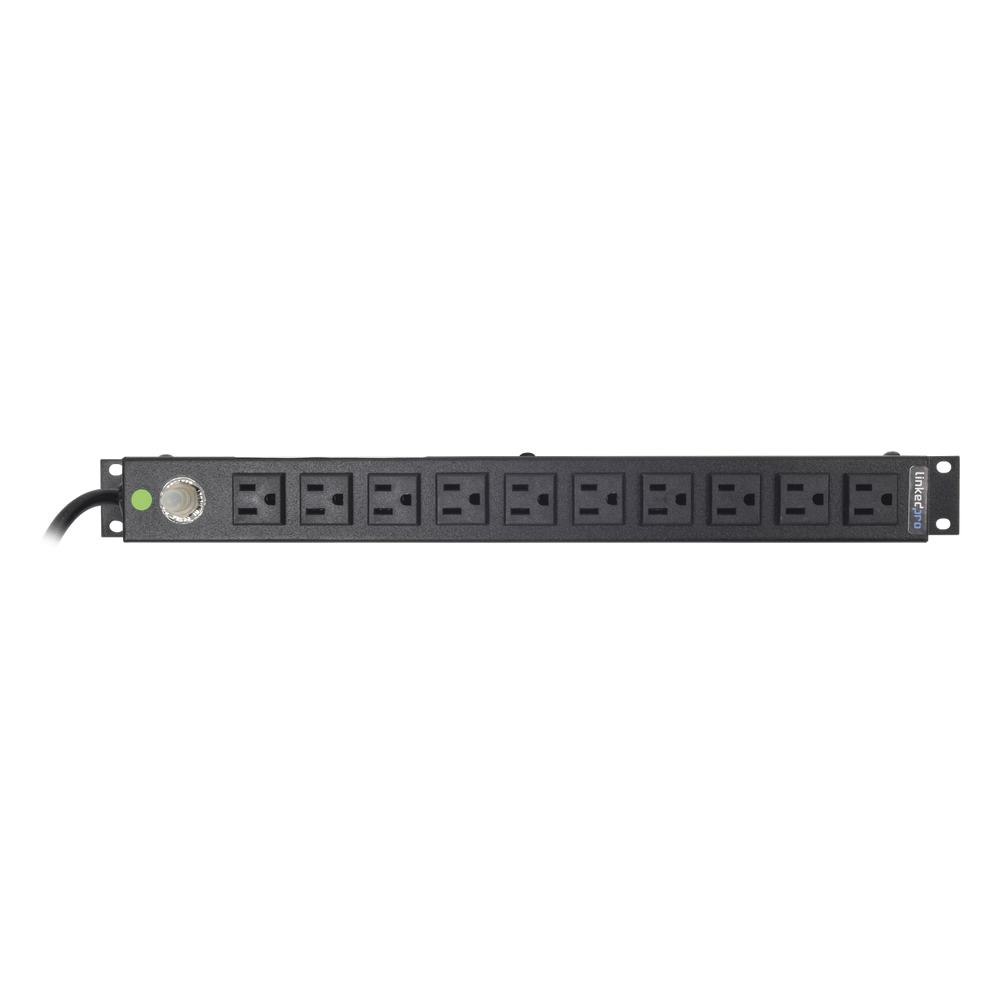

Nuestra Barra de contactos horizontal HTCM-1U ofrece una capacidad de distribución de 15 Amp. a través de 10 tomas, es ideal para distribuir formas de ondas alternas del UPS o energía del generador en racks, armarios de red y más.
Características Funcionales
- Diseño Liviano y resistente.
- Elaborado de Acero de primera calidad.
- Capacidad para conexión de 10 equipos.
- Tipo de conector: NEMA 5-15
- Ideal para montaje en Rack de 19' de acuerdo a norma ANSI/TIA RS-310D
- Ocupa solo 1 unidad de espacio.
- Aplicación: Interior.
- Voltaje de entrada: 120 VCA, 50/60 Hz.
- Posee reestablecedor de 15 Amps con fusible.
- Cuenta con un cable de 2.5m para conexión.
- Amperaje Máximo por Conexión 1.5Amp.
Datos Físicos
- Pintura color negro por aplicación electrostática.
- Dimensiones: 483 x 44 x 57 mm (ancho x alto x profundidad).
- Peso: 1.20 kg
- Material de fabricación: Lámina de acero cal. 18.
Aplicaciones
- Distribución de energía para varias cargas en rack de 19'.
- Alimentación de switchs, fuentes de poder, UPS's o sistemas de cómputo.
- Sistemas de telecomunicación (DVR´s, cámaras, Poe's, etc.).
