HUBBELL

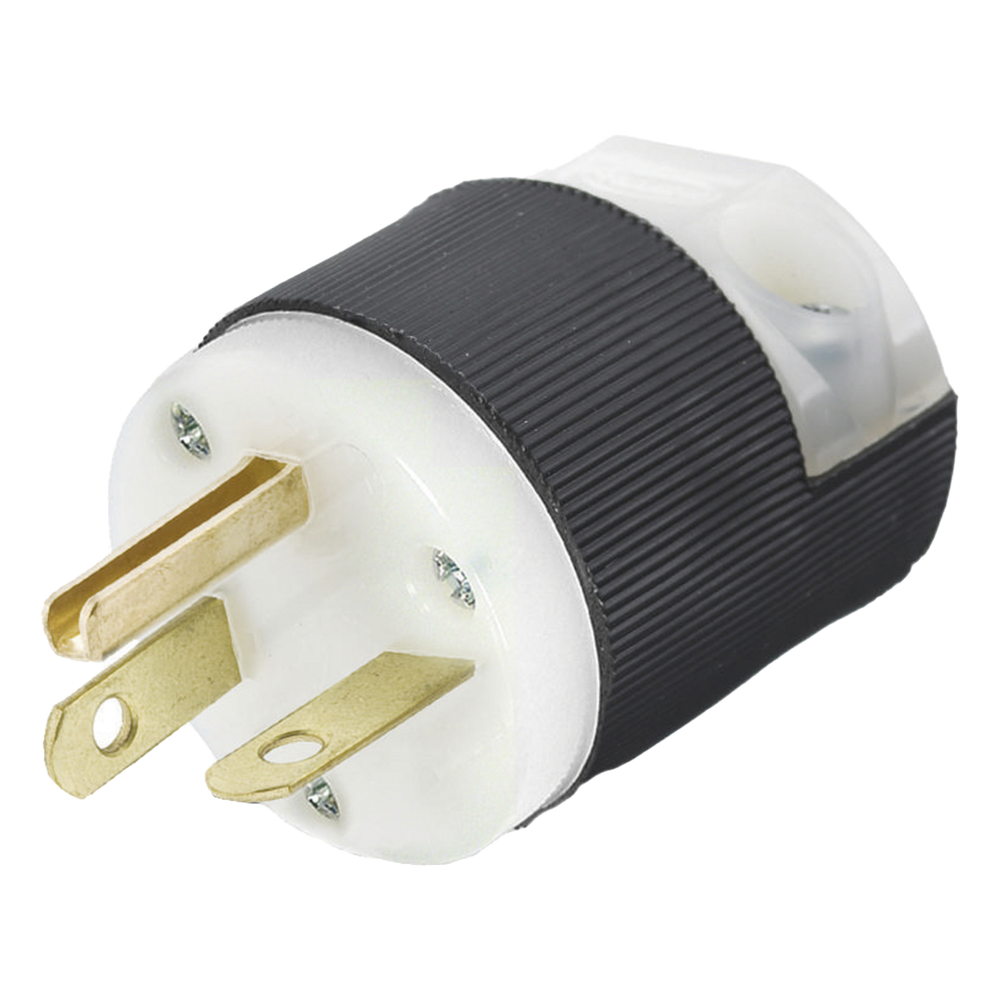

Clavija Entrada Recta/ 20 A 250 V CA/ 2 Polos 3 Hilos/ Nema 6-20 P/Grado Comercial - Industrial
Clavija Entrada Recta/ 20 A 250 V CA/ 2 Polos 3 Hilos/ Nema 6-20 P/Grado Comercial - Industrial
Couldn't load pickup availability
Enchufe entrada recta /20 A 250 V CA /2 polos 3 hilos/ Nema 6-20P/ Grado Comercial - Industrial
Especificaciones:
- Color: Blanco y negro
- Condiciones ambientales: La carcasa de nailon acanalado es resistente a impactos y productos químicos
- Potencia - máx: 2
- Material: Policarbonato
- Número de polos: 2 polos
- Temperatura de operación: Máxima continua 75°C y mínima -40°C sin impactos
- Rendimiento: Eléctrico - Interrupción de corriente - Certificado para interrupción de corriente a corriente nominal completa. Eléctrico - Voltaje dieléctrico - Soporta un mínimo de 2000 V. Ambiental - Inflamabilidad - UL 94 HB o mejor. Ambiental - Idoneidad IP - IP20. Ambiental - Temperaturas de funcionamiento - Máximo continuo 75 °C mínimo -40 °C (sin impacto). Mecánico - Alojamiento de terminales - #18-10 AWG. Solo cable de cobre con soporte. Mecánico - Identificación de terminales - Terminales identificados de acuerdo con UL 498 y CSA
- Estilo: Estándar
- Dimensiones: 1,97 in x 1,53 in, 1,53 in
- Altura: 1,53 in
- Largo: 1,97 in
- Ancho: 1,53 in
- Peso: 0,15 lb
- Rango de amperaje: 20 A
- Resistencia dieléctrica: Soporta 2000V mínimo
- Potencia: 5000 W
- Rango de voltaje: 250 V
- Número de hilos: 3
- Tamaño del cable: #18 AWG a #10 AWG
- Estándares: Certificación CSA para C22.2 No. 42 Archivo 280. Cumple con NEMA® WD-6. Listado en UL para el archivo UL498 E1706
- Nema: 6 - 20 P
