HUBBELL

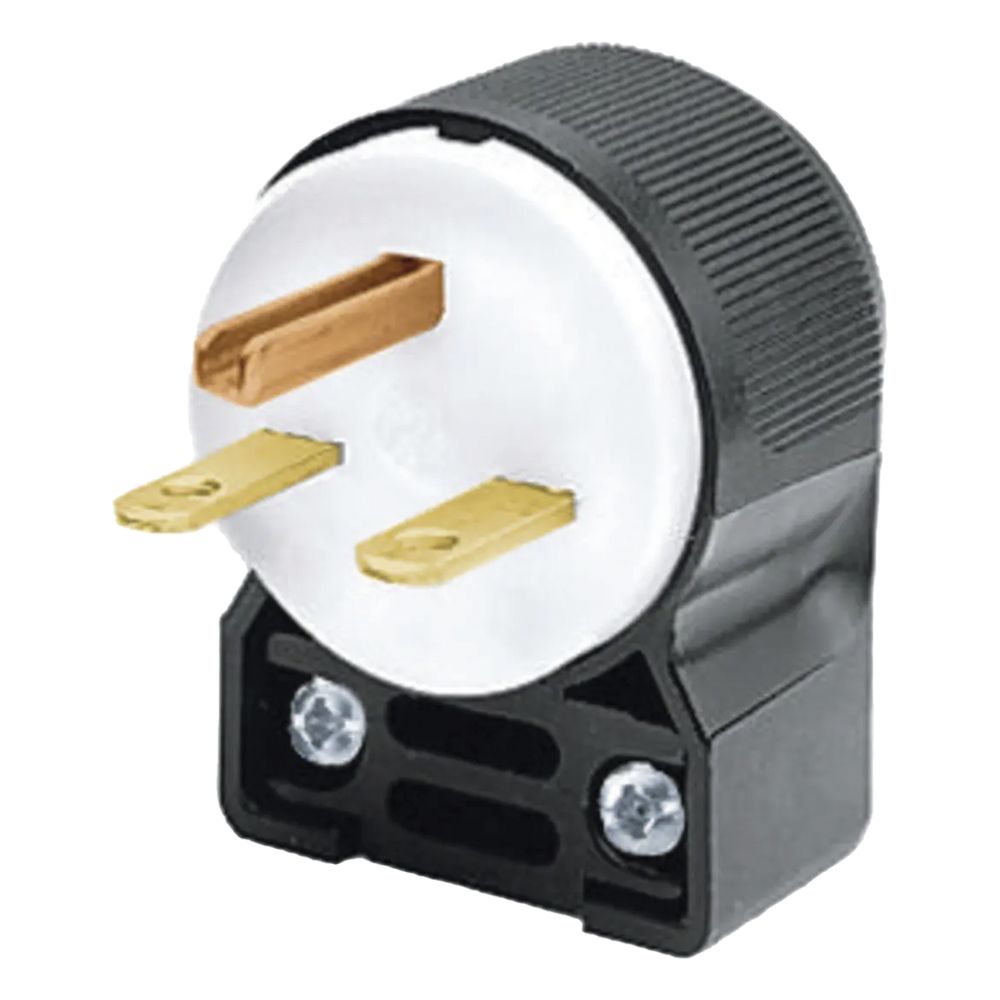

Clavija Entrada Recta En Angulo/ 15A 250V/ 2 Polos 3 Hilos/ Nema 6-15P/ Grado Industrial- Comercial
Clavija Entrada Recta En Angulo/ 15A 250V/ 2 Polos 3 Hilos/ Nema 6-15P/ Grado Industrial- Comercial
Couldn't load pickup availability
Enchufe entrada recta en ángulo /15 A 250 V CA /2 polos 3 hilos/ Nema 6-15P/ Grado Comercial - Industrial
Especificaciones
- Grado: Industrial / Comercial
- Color: Blanco y negro
- Potencia - máx: 1.5
- Material: Policarbonato
- Número de polos: 2 polos
- Temperatura de operación: Máxima continua 75°C y mínima -40°C sin impactos
- Estilo: Angular
- Dimensiones: 2,11 in x 1,53 in, 1,22 in
- Altura: 1,22 in
- Largo: 2,11 in
- Ancho: 1,53 in
- Peso: 0,15 lb
- Rango de amperaje: 15 A
- Resistencia dieléctrica: Soporta 2000V mínimo
- Potencia: 3750 W
- Rango de voltaje: 250 V
- Número de hilos: 3
- Tamaño del cable: #18 AWG a #10 AWG
- Nema: 6 - 15 P
Rendimiento
- Eléctrico - Interrupción de corriente - Certificado para interrupción de corriente a corriente nominal completa
- Eléctrico - Voltaje dieléctrico - Soporta un mínimo de 2000 V
- Ambiental - Inflamabilidad - UL 94 HB o mejor
- Ambiental - Idoneidad IP - IP20
- Ambiental - Temperaturas de funcionamiento - Máximo continuo 75 °C mínimo -40 °C (sin impacto)
- Mecánico - Alojamiento de cable - .325'-.655'(8.3-16.6)
- Mecánico - Alojamiento de terminales - #18-10 AWG. Solo cable de cobre con soporte
- Mecánico - Identificación de terminales - Terminales identificados de acuerdo con UL 498 y CSA
Estándares
- Certificación CSA para C22.2 No. 42 Archivo 280
- Cumple con NEMA® WD-6
- Listado en UL para el archivo UL498 E1706
