• Curva/Codo de 90° de 3/4" (19mm) pared gruesa con rosca galvanizado etiqueta amarilla
1 1

JUPITER

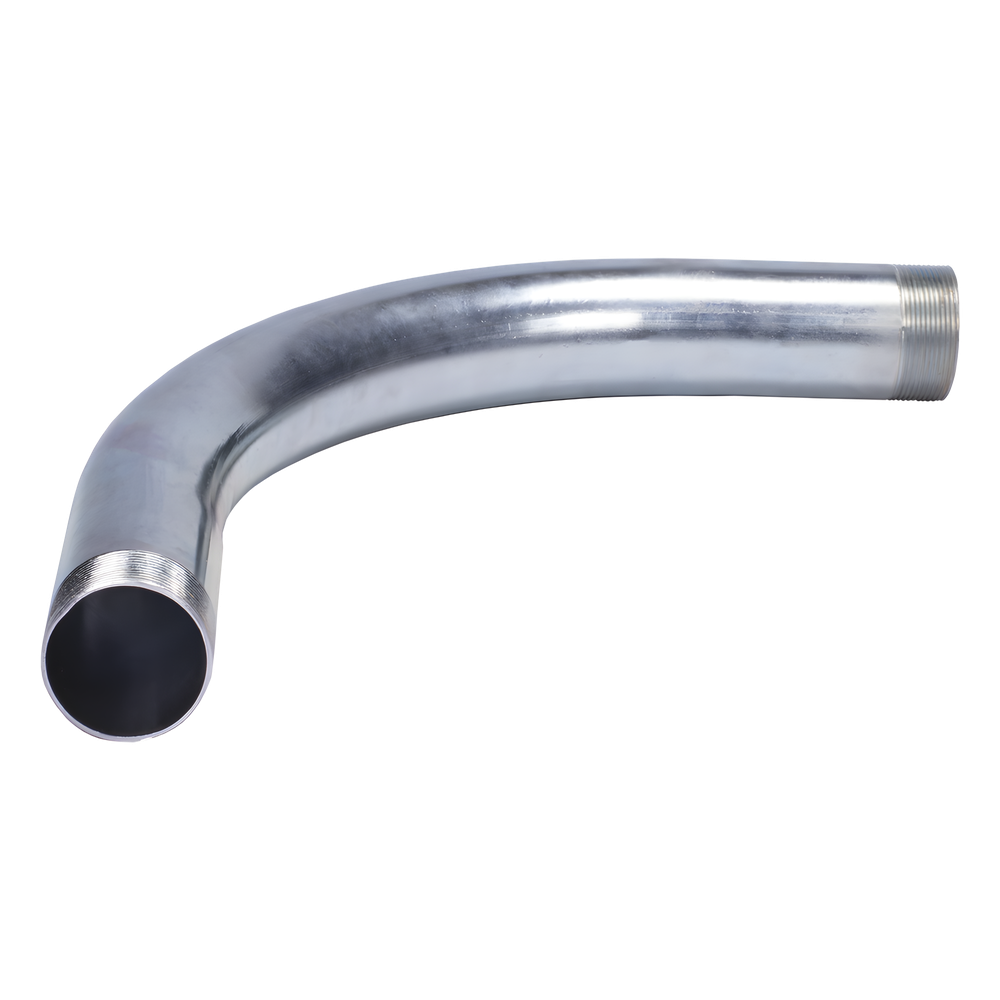

Curva/Codo de 90° de 3/4" (19mm) pared gruesa con rosca galvanizado etiqueta amarilla

Curva/Codo de 90° de 3/4" (19mm) pared gruesa con rosca galvanizado etiqueta amarilla

$ 85.53 MXN
$ 85.53 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.

Características Técnicas

  • Tipo: Codo 90°
  • Diámetro: 3/4' (21mm)
  • Material: Acero galvanizado por inmersión en caliente
  • Recubrimiento interno: Pintura tipo esmalte
  • Norma: NMX-J-536-ANCE-2008
  • Normativa: LAPEM
  • Peso: 1.941 kg/pieza
  • Longitud nominal: 3 m ± 6 mm
  • Zinc: Grado alta pureza (99.9%) ASTM-B6

Aplicaciones

  • Instalaciones eléctricas ocultas en concreto o paredes
  • Instalaciones visibles en ambientes industriales
  • Ambientes secos no expuestos a humedad
  • Zonas sin agentes corrosivos
  • No recomendado para instalaciones subterráneas
  • Instalación exterior en zonas con humedad relativa <40%
Especificaciones Técnicas
  • Diámetro exterior: 21 mm
  • Espesor nominal: 1.52 mm
  • No. de hilos: 14
  • Color de tapón: Verde
Compatibilidad
  • Compatible con tubo conduit pared gruesa
  • Rosca estándar para conexión segura
  • Modelo: JUPG34COD
Resistencia
  • Mayor resistencia a la corrosión
  • Resistente a ambientes interiores
  • No recomendado para ambientes salinos
