LINKEDPRO BY EPCOM

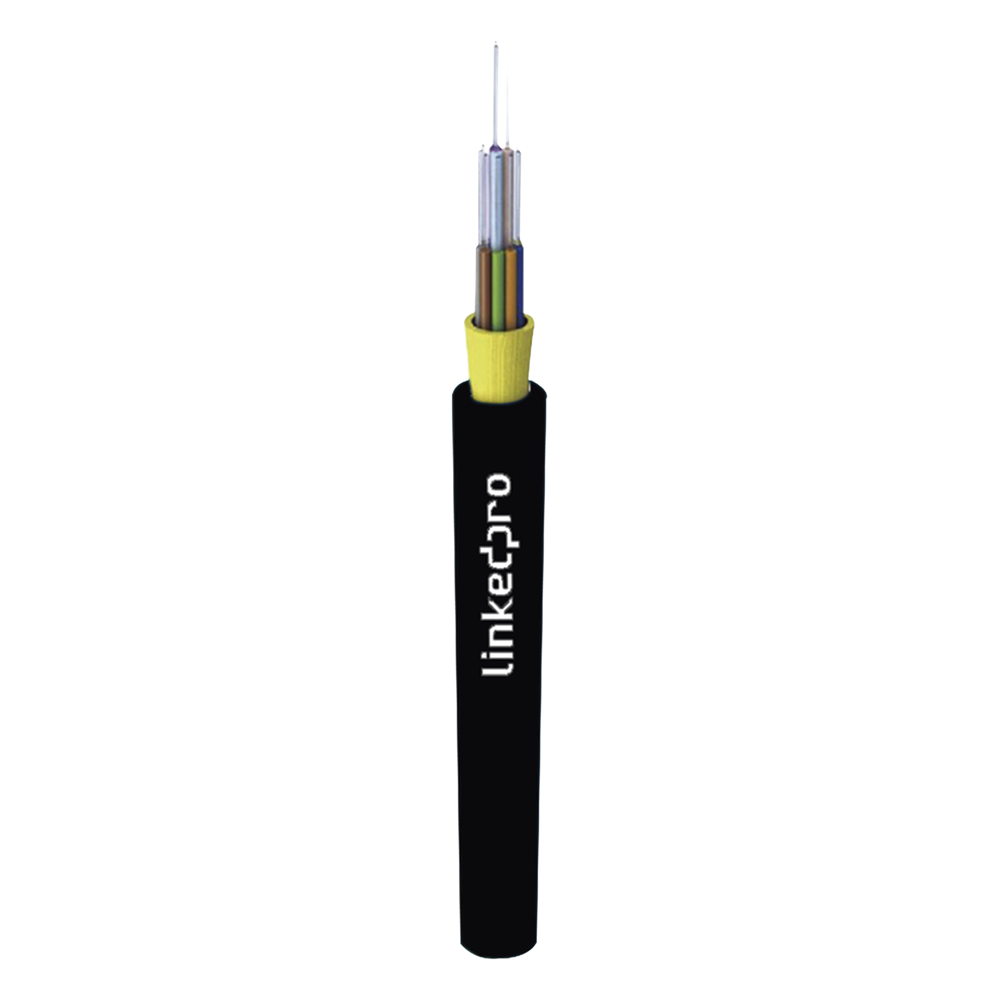

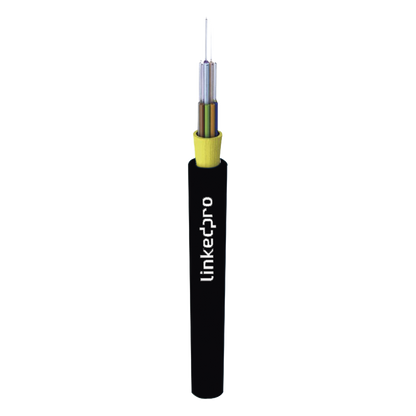

Cable de Fibra Óptica Multimodo OM4 50/125, 6 Hilos, Interior/Exterior, Tight Buffer 900µm, OFNR Riser, Dieléctrica, Precio Por Metro, (Hasta 2000

Cable de Fibra Óptica Multimodo OM4 50/125, 6 Hilos, Interior/Exterior, Tight Buffer 900µm, OFNR Riser, Dieléctrica, Precio Por Metro, (Hasta 2000

Regular price $ 46.85 MXN
Regular price Sale price $ 46.85 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Descripción General

El cable de fibra óptica LP-IOC-OM4-R-06 está diseñado para instalaciones en interiores o exteriores tanto horizontales como verticales al contar con forro retardante al fuego Riser (OFNR). Los hilos de fibra cumplen con la clasificación OM4 de fibra optimizada para 10G.

Especificaciones Técnicas
  • Fibra Óptica: OM4 50/125 Multimodo
  • Tight Buffer: 900 µm
  • Forro: OFNR Riser/LSZH con protección contra rayos UV
  • Máxima tensión: 400 N
  • Temperatura de operación: -10ºC ~ +60ºC
  • Temperatura de almacenaje: -20ºC ~ +60ºC
  • Diámetro nominal: 5.5 ± 0.5 mm
  • Radio mínimo de curvatura: Instalación 20D, Operación 10D
  • Resistencia al aplastamiento: 500N/10cm
  • Hilos: 6
  • Instalación: Interior/Exterior (No instalación aérea, ni enterrado directo)
Características mecánicas y ambientales
  • Tensión: IEC 60794-1-2-E1
  • Aplastamiento: IEC 60794-1-2-E3
  • Impacto: IEC 60794-1-2-E4
  • Dobles: IEC 60794-1-2-E11
  • Dobles repetitivo: IEC 60794-1-2-E6
  • Torsión: IEC 60794-1-2-E7

Notas

Nota: Se recibe en carretes de 2000 metros (2 KM), hasta 2000 metros en un solo tramo.

*Precio por metro
