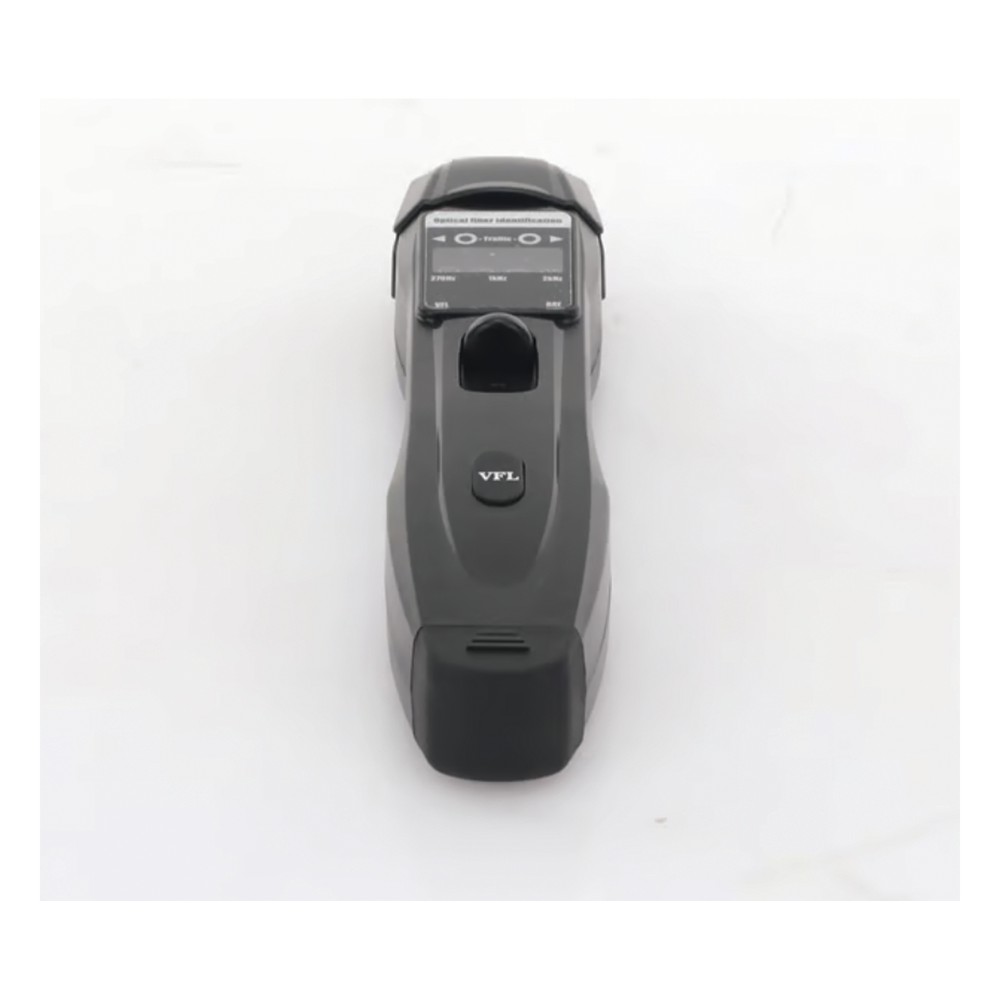

Identificador de Tráfico para Fibra Óptica Activa (OFI) / Soporta Función Localizador Visual de Fallos (VFL)

Identificador de Tráfico para Fibra Óptica Activa (OFI) / Soporta Función Localizador Visual de Fallos (VFL)

Regular price $ 2,719.64 MXN
Regular price Sale price $ 2,719.64 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

El identificador de fibra óptica LP-OFI es una herramienta utilizada para detectar señales ópticas activas en una fibra sin necesidad de desconectarla ni interrumpir el servicio. Esto lo hace especialmente útil para tareas de mantenimiento, pruebas y solución de problemas en redes de fibra óptica.

Aplicaciones típicas

  • Verificar si una fibra está activa sin desconectarla.
  • Identificar fibras durante instalaciones o mantenimiento.
  • Comprobar continuidad de señales en fibras en redes FTTH, LAN, WAN, etc.
  • Diagnóstico de fallos o interrupciones.
Características principales
  • Tipo de detector: InGaAs
  • Longitud de onda: 800 a 1700nm
  • Tipo de fibra óptica: Diámetro 0.25mm (for bare fiber) Φ0.9mm, Φ2.0mm, Φ3.0mm (For pigtails)
  • Frecuencia de modulación: CW/270Hz/1kHz/2kHz
  • Indicadores LED: Para la dirección del tráfico
  • Rango de detección: -48dBm a 10dBm
VFL Localizador Visual de Fallos
  • Longitud de onda: 650nm
  • Potencia de salida: 2mW
  • Interfaz de fibra óptica: Universal FC, SC y ST
  • Alcance: Hasta 10 km (Prueba en laboratorio)
Otros
  • Alimentación: Batería 9V (No incluidas)
  • Tiempo de batería: 10 horas
  • Temperatura de operación: -10ºC a 50ºC
  • Dimensiones: 220mm x 48mm x 40mm
  • Peso: 200 gramos
