LINKEDPRO BY EPCOM

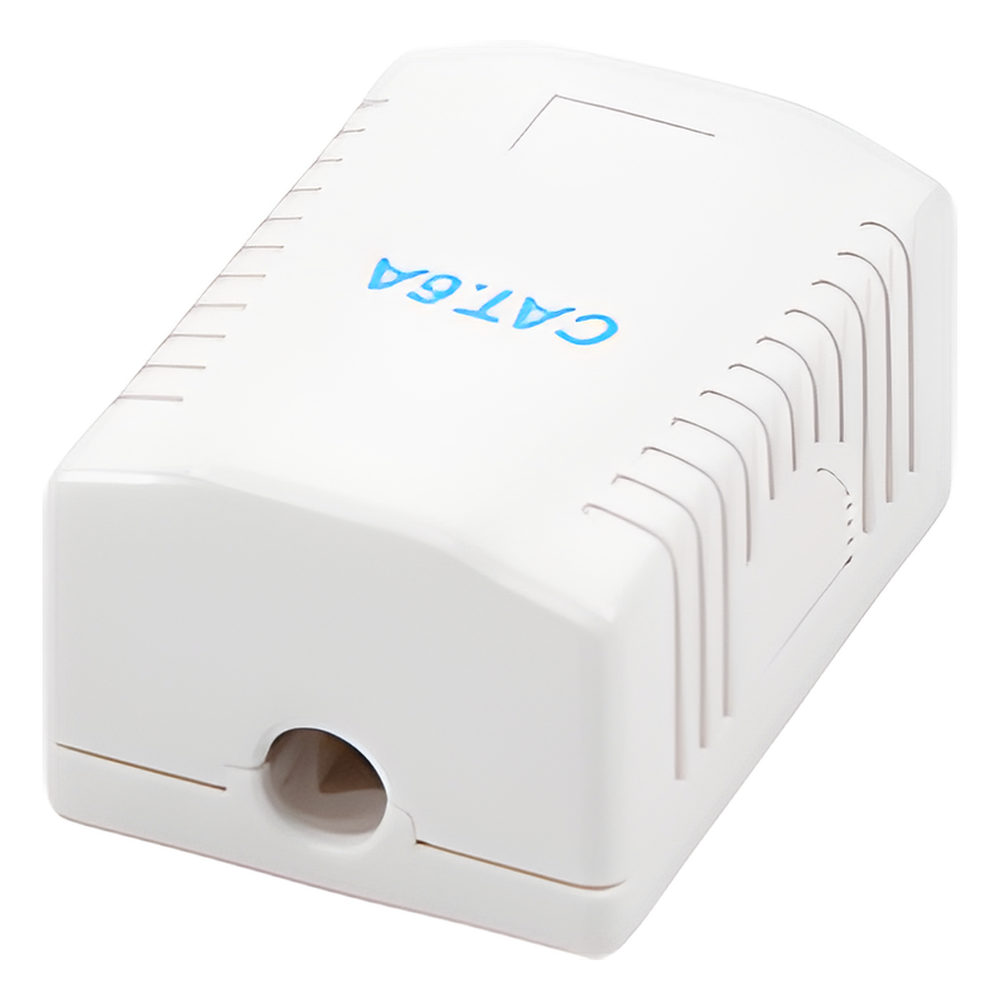

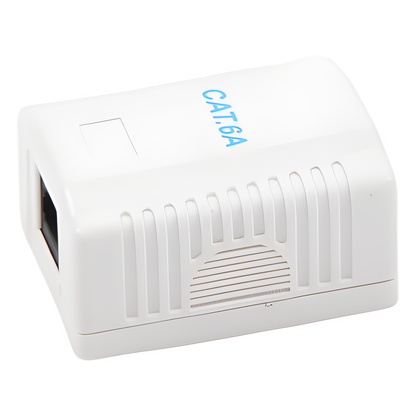

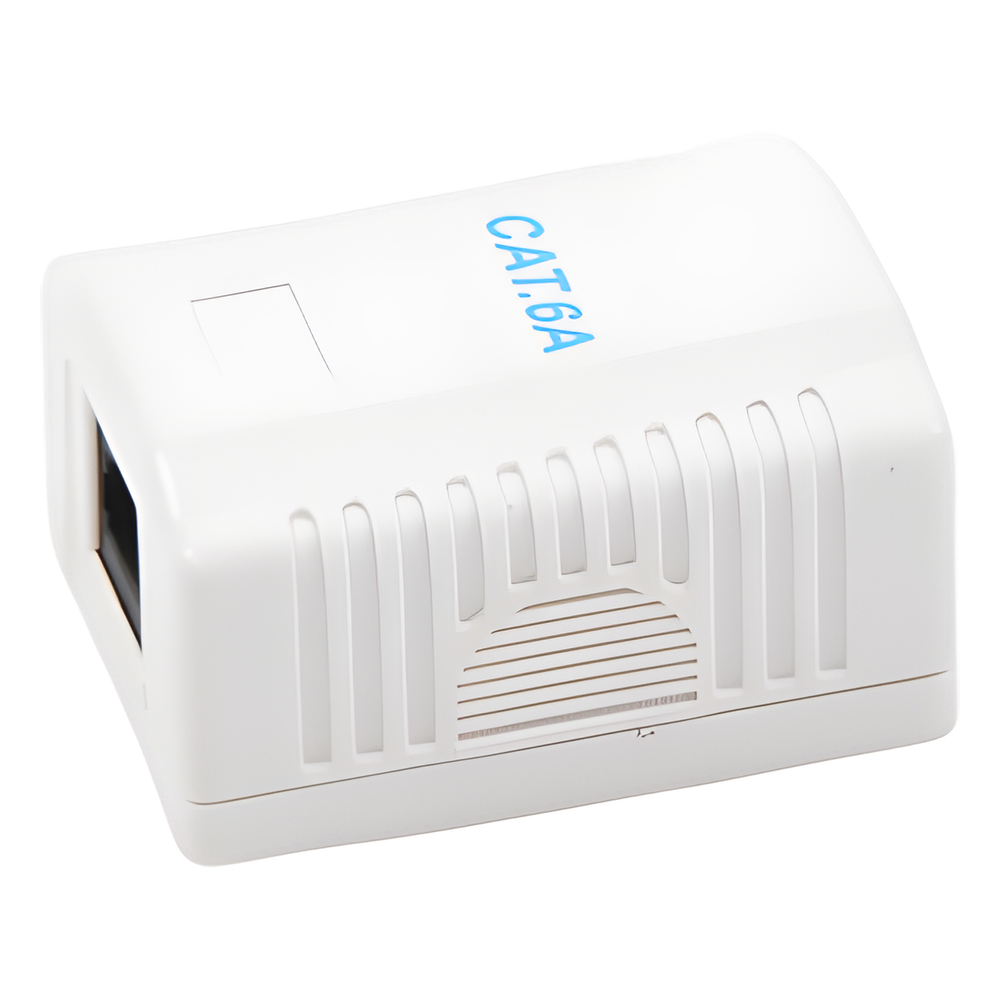

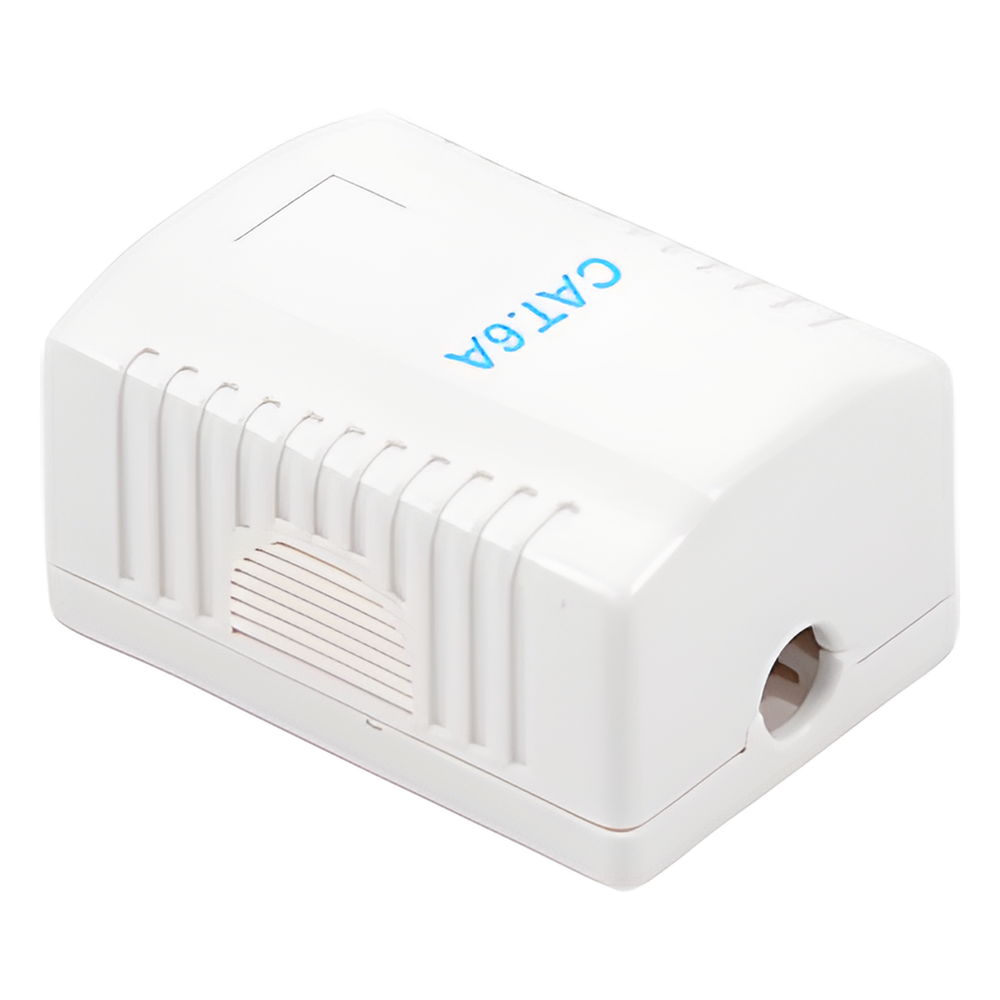

Caja de Pared con 1 Puerto, Incluye 1 Jack UTP Cat6A

Caja de Pared con 1 Puerto, Incluye 1 Jack UTP Cat6A

Regular price $ 51.32 MXN
Regular price Sale price $ 51.32 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Características Generales

  • Tipo: Caja de pared
  • Color: Blanco
  • Nivel de rendimiento: Cat6A
  • Número de puertos: 1
  • Esquema de cableado: T568A / T568B
  • Tipo de conector: Sin blindaje
Especificaciones Eléctricas
  • Voltaje: 125 VAC RMS
  • Corriente: 1.5 AMP
  • Resistencia de contacto: 100 MILLIOHMS MAX
  • Resistencia de aislamiento: 1000 MEGOHMS MIN @500 VDC
  • Fuerza dieléctrica: 750 VAC RMS 60 Hz, 1 minuto
Especificaciones Mecánicas
  • Material del panel: Aleación de zinc
  • Carcasa: ABS
  • Material IDC: PC, Contacto: Bronce fosforado con niquelado
  • Vida útil RJ45: 750 ciclos mínimo
  • Vida útil IDC: 200 ciclos mínimo
  • Ángulo de tolerancia: ±30´
  • Calibre de cable: AWG 23-26
Condiciones Ambientales
  • Almacenamiento: -40° a +85°C
  • Operación: 0° a 70°C
