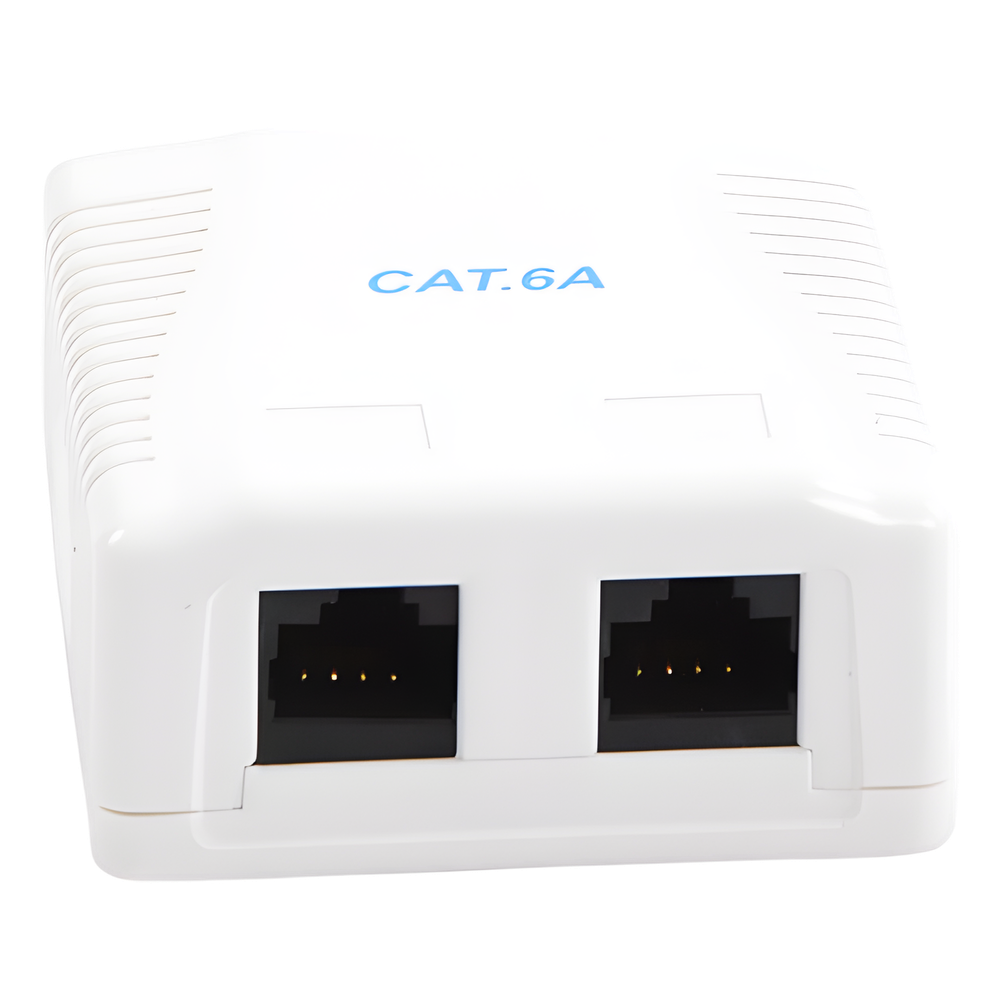

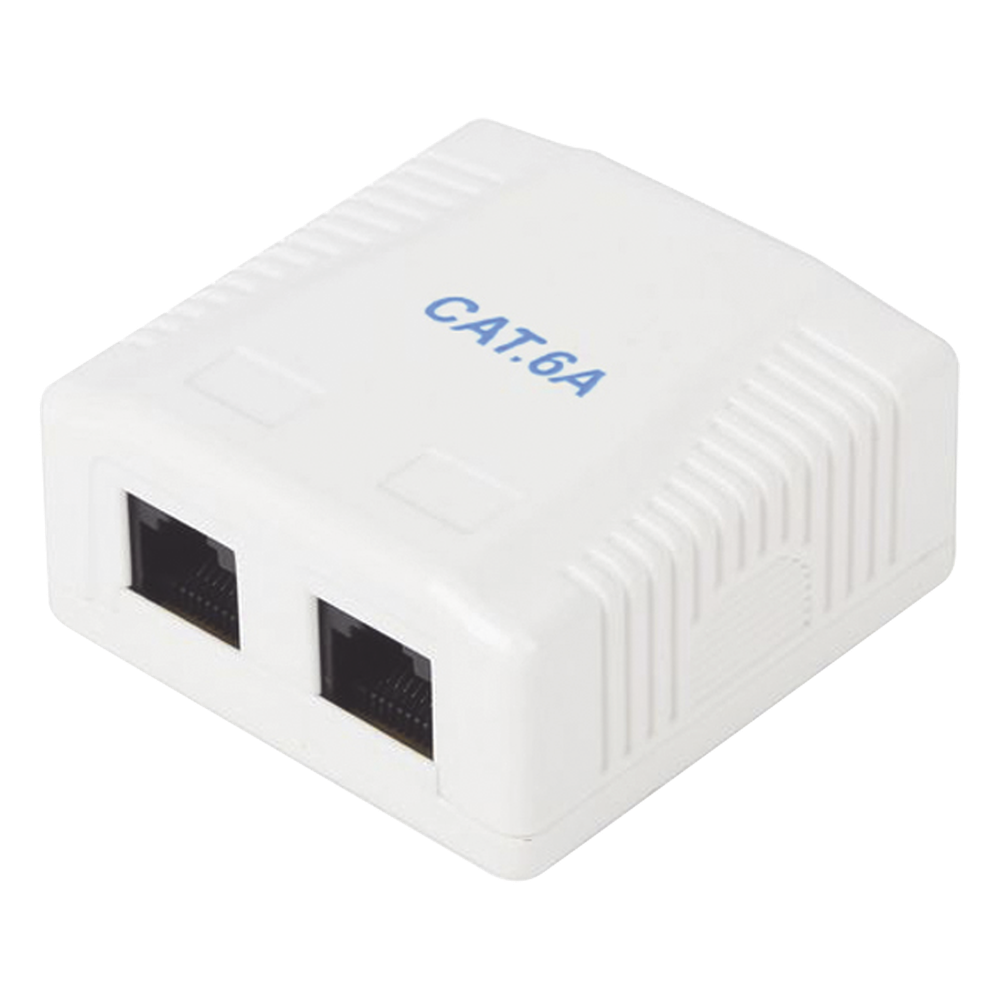

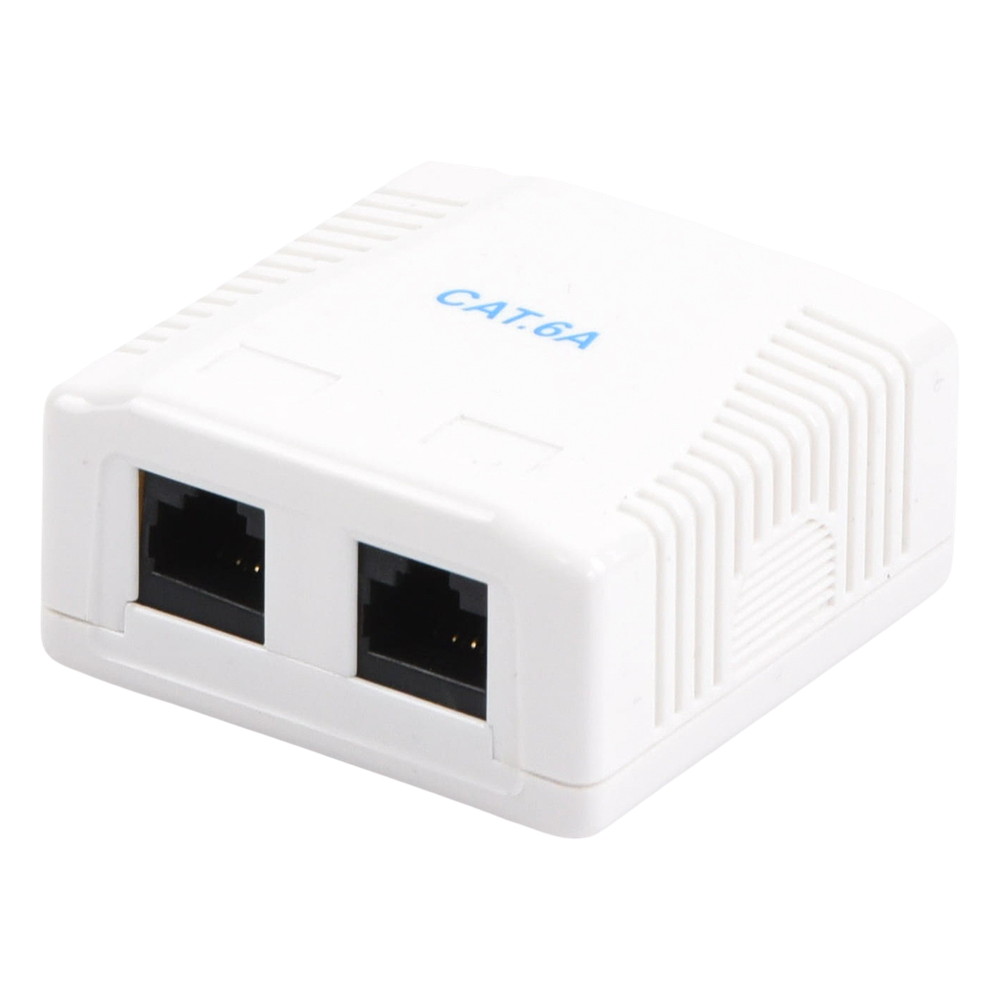

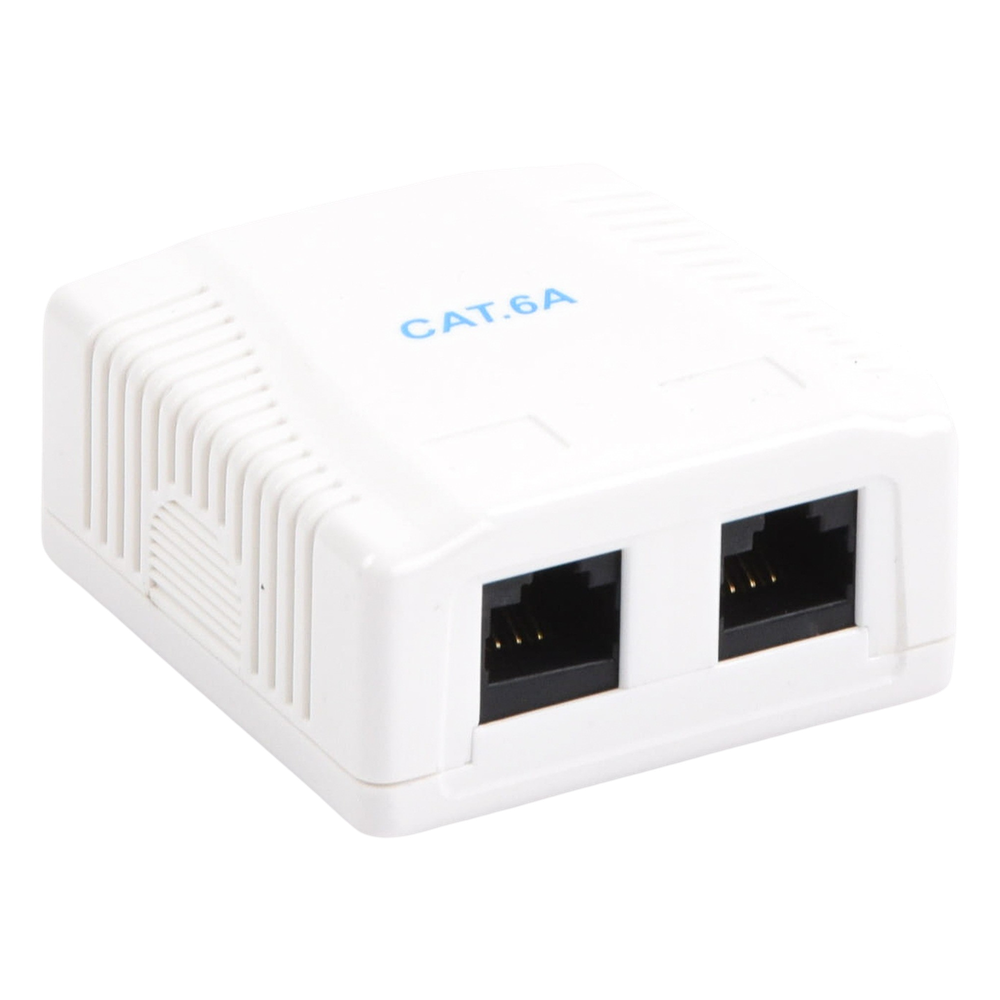

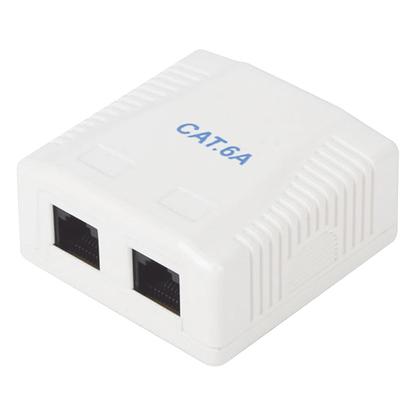

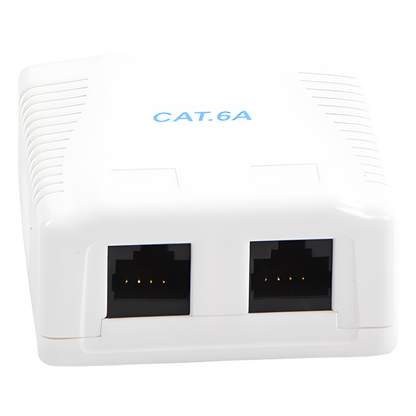

Caja de Pared con 2 Puertos, Incluye 2 Jacks UTP Cat6A

Caja de Pared con 2 Puertos, Incluye 2 Jacks UTP Cat6A

Regular price $ 59.17 MXN
Regular price Sale price $ 59.17 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Características Principales

  • Tipo caja de pared, color blanco
  • Nivel de rendimiento Cat6a para alta velocidad
  • 2 puertos para conectividad versátil
  • Esquema cableado T568A/T568B estándar
  • Conector sin blindaje para fácil instalación

Características Generales

  • Tipo: Caja de pared
  • Color: Blanco
  • Nivel de rendimiento: Cat6A
  • No. de puertos: 2
  • Esquema de cableado: T568A / T568B
  • Tipo de conector: Sin blindaje
Especificaciones Eléctricas
  • Voltaje: 125 VAC RMS
  • Corriente: 1.5 AMP
  • Resistencia de contacto: 100 MILLIOHMS MAX
  • Resistencia de aislamiento: 1000 MEGOHMS MIN @500 VDC
  • Fuerza dieléctrica: 750 VAC RMS 60 Hz, 1MIN
Especificaciones Mecánicas
  • Material de carcasa: ABS
  • Material de inserto: ABS con retardante de llama
  • Material PCB: FR-4 T=1.6mm
  • Material de contactos: Fósforo bronce, espesor 0.30mm
  • Contactos IDC: Fósforo bronce con recubrimiento de estaño
  • Vida útil Jack RJ45: 750 ciclos mínimo
Especificaciones Ambientales
  • Almacenamiento: -40° a +85°C
  • Operación: 0° a 70°C
