SIEMENS

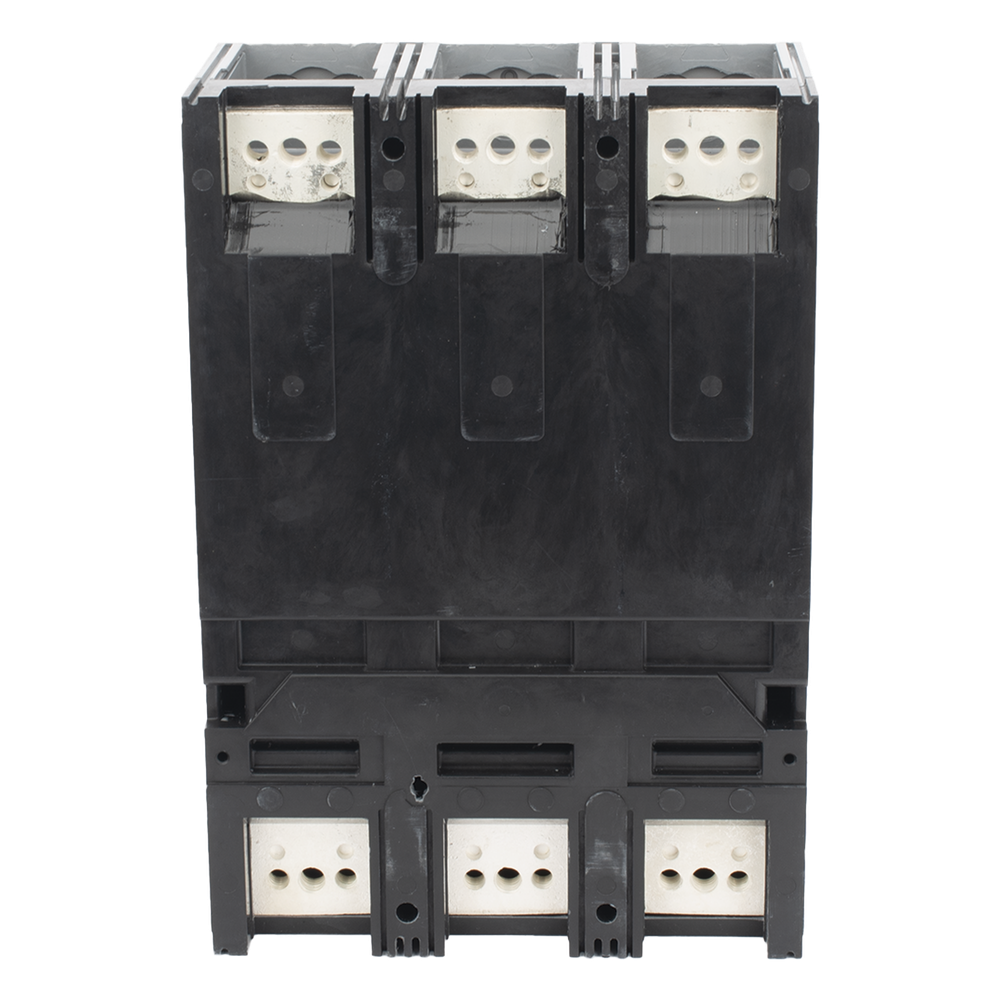

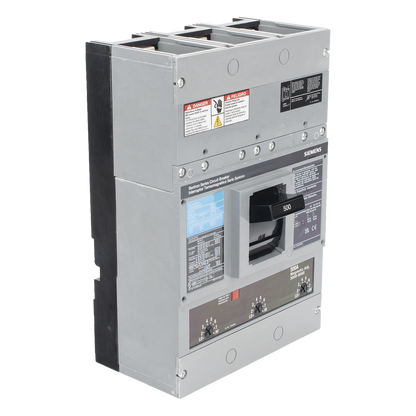

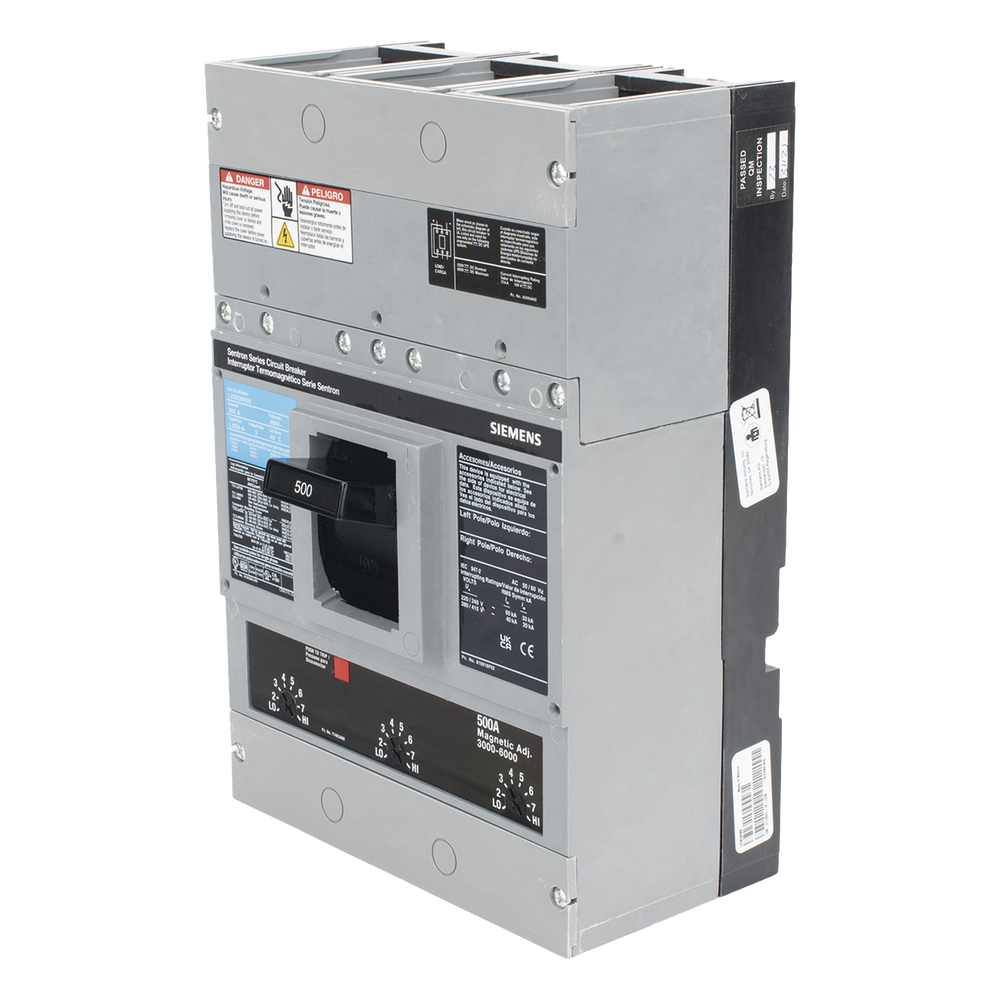

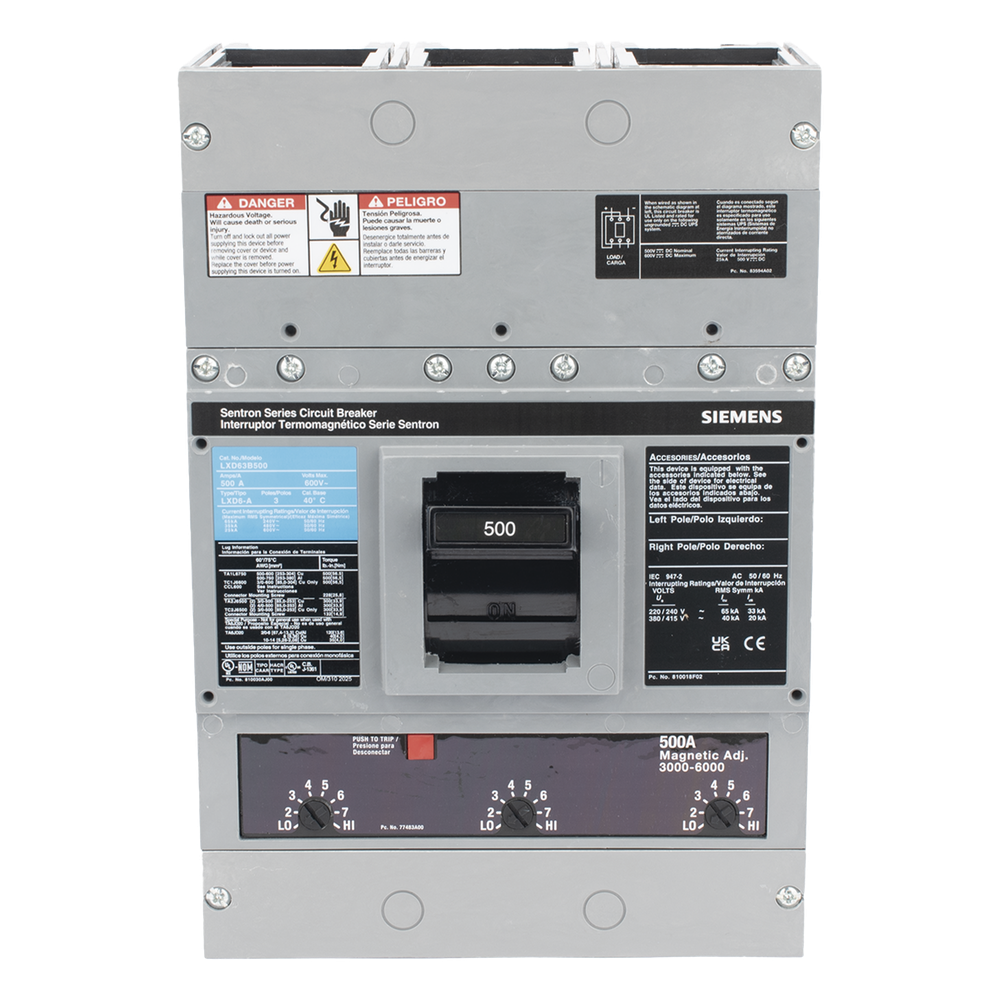

Interruptor Termomagnético 600V 3X500A, Sin zapatas principales
Interruptor Termomagnético 600V 3X500A, Sin zapatas principales
Couldn't load pickup availability
Características Principales
- 600Vca
- 3 Polos
- 500 Amp
- Sin zapatas principales
Especificaciones Técnicas
- Norma: UL 489, NOM-ANCE
- Temperatura operación: -10°C a 40°C
- Capacidad interruptiva: 35kA en 480VCA
- Calibración: Para 40°C sin derating
- Frecuencia: 400Hz
Aplicaciones
- Montaje en gabinete N1 y N3R
- Tableros 3WLPACK, FC y SBM
- Panelboard P4 y P5
Bobinas de Disparo
- 24VAC/VDC - S17JLD6
- 48VAC/VDC - S18JLD6
- 120VAC - S01JLD6
- 240VAC - S03JLD6
- 277VAC - S15JLD6
- 480VAC - S04JLD6
Accesorios Compatibles
- CCL600 - Para 500kcmil Cu/Al
- B01JLD64 - Bobina mín. tensión + 1 cont. aux.
- A01JLD64B - Bobina mín. tensión + 1 cont. alarma
- U06JLD64A - Disparo instantáneo alto rango
