SIEMENS

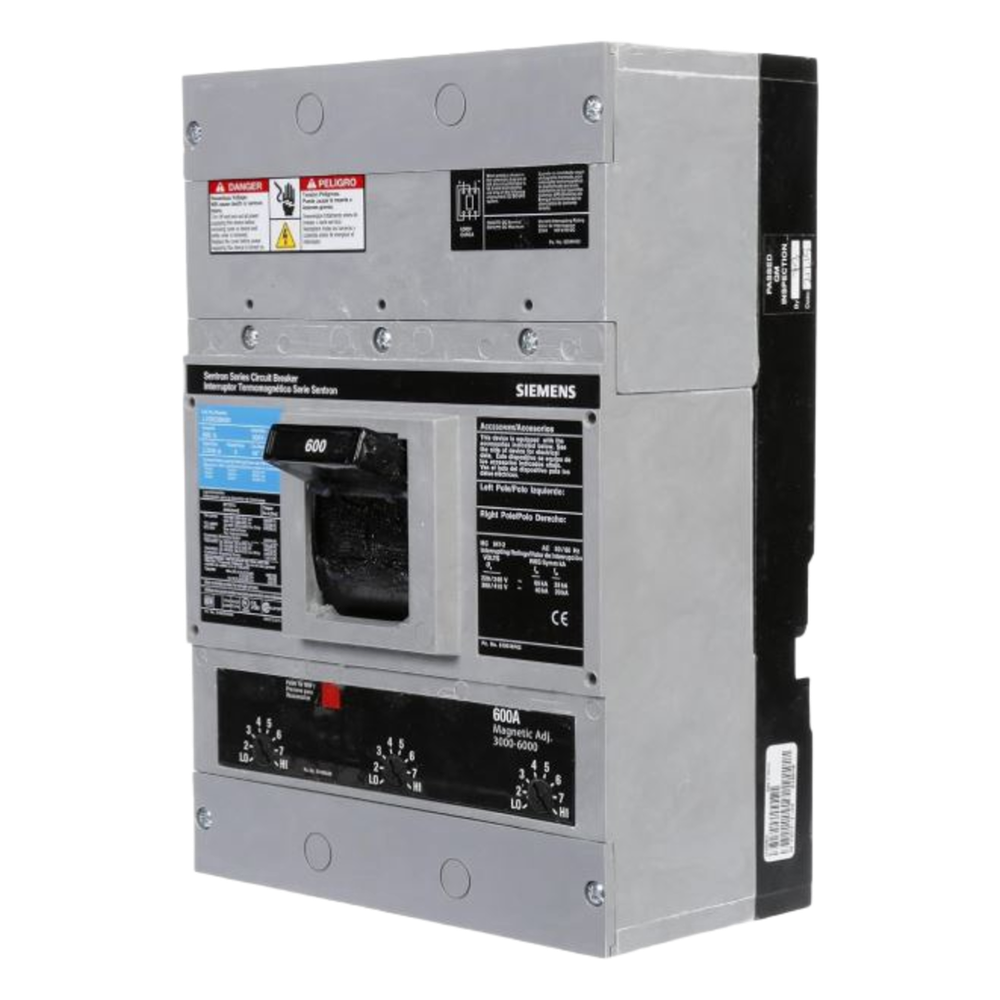

Interruptor Termomagnético 600V 3X600A, Sin zapatas principales
Interruptor Termomagnético 600V 3X600A, Sin zapatas principales
Couldn't load pickup availability
Características principales
- Tipo: Interruptor Termomagnético
- Tensión: 600V CA
- Número de polos: 3 polos
- Corriente nominal: 600A
- Montaje: Para gabinete N1 y N3R, tableros 3WLPACK, FC y SBM, así como en Panelboard P4 y P5
- Calibración: Para 40°C sin derating
- Frecuencia: 400Hz
- Normas: UL 489, Clasificado para uso HACR
Especificaciones técnicas
- Capacidad interruptiva: 65kA a 240VCA, 35kA a 480VCA, 25kA a 600VCA
- Temperatura de operación: -10°C a 40°C
- Marco: 400A (35kA a 480VCA)
- Accesorios: Bobinas de disparo, contactos auxiliares y de alarma
- Dimensiones: 7.5' W x 11' L x 4' D (190.5mm x 279.4mm x 101.6mm)
- Peso: 10.0 lbs (4.54 kg) para 3 polos
Configuración
- Terminación: Sin zapatas principales (se deben pedir por aparte)
- Zapatas recomendadas: 6 zapatas del modelo TA2J6500
- Capacidad de cable: 3/0-500KCMIL Cu o 4/0-500KCMIL Al
- Disparo instantáneo: Ajustable con rangos de +/-20% de tolerancia
- Corriente de disparo: 2000-4000A dependiendo del rango
Accesorios disponibles
- Zapatas: TA2J6500, TA1L6750, TC1J6600, TC2J6500
- Bobinas de disparo: S17JLD6, S18JLD6, S01JLD6, S03JLD6, S15JLD6, S04JLD6
- Contactos auxiliares: U01JLD6, U02JLD6, U03JLD6, U06JLD6
- Contactos de alarma: U13JLD6, U14JLD6, U10JLD6, U12JLD6
- Combinaciones: A01JLD64, A02JLD64, U01JLD62A, U02JLD62A
