BASEL
Conector de Puesta a Tierra de Aluminio / Rango de Conductor 4-14 / Doble Calificación / Estañado / UL / CSA
Conector de Puesta a Tierra de Aluminio / Rango de Conductor 4-14 / Doble Calificación / Estañado / UL / CSA
Couldn't load pickup availability
SGB modelo: M00112

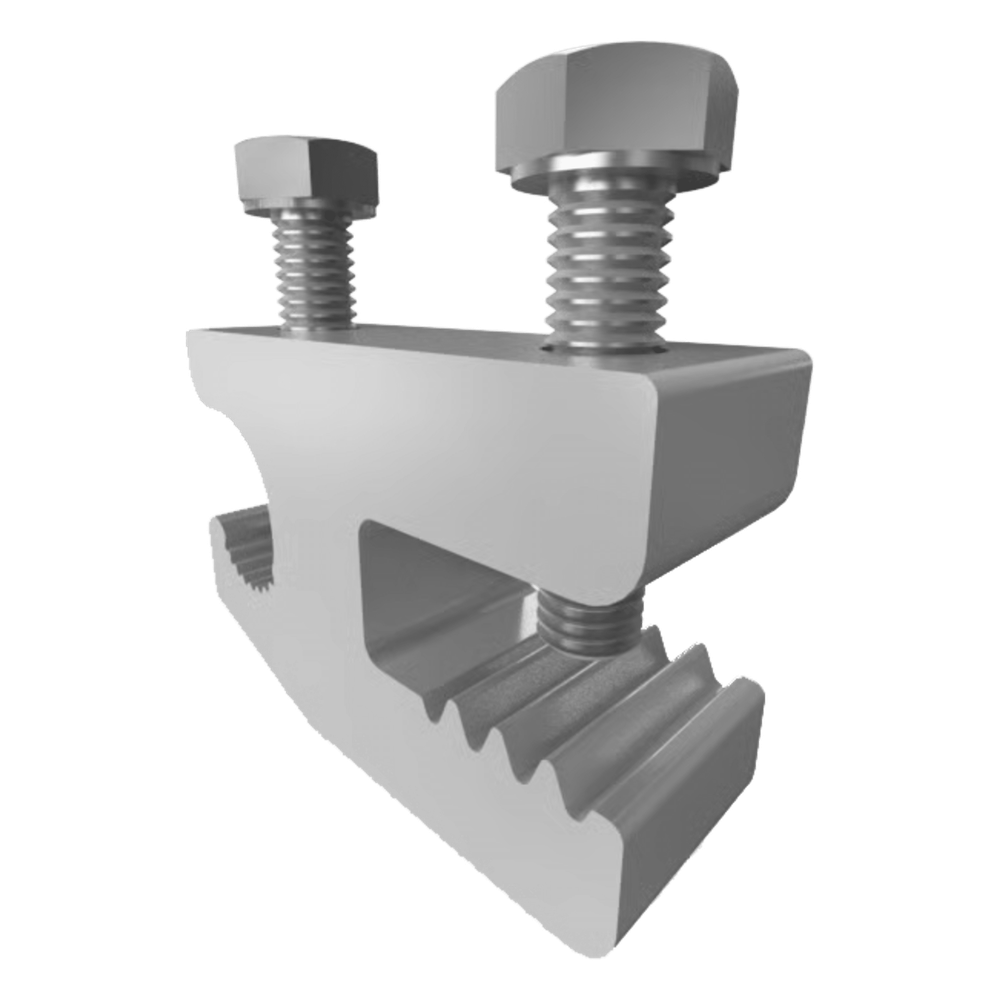

El conector de puesta a tierra de aluminio modelo SGB-4(M00112) es un componente diseñado para instalaciones eléctricas profesionales que requieren conexiones seguras y confiables. Fabricado en aluminio con acabado estañado, este conector tipo lay-in permite la conexión de conductores de cobre o aluminio en un rango de calibre 4 a 14 AWG, tanto sólidos como trenzados. Cuenta con doble calificación (Dual Rated) y cumple con las normas UL 2703 y CSA C22.2 No. 65-03, lo que garantiza su idoneidad para aplicaciones de puesta a tierra en sistemas fotovoltaicos, eléctricos y de telecomunicaciones. Su diseño mecánico incluye un tornillo de sujeción externo hexagonal de 7/16 pulgadas y un torque de apriete de 75 lb-in, asegurando una fijación firme y duradera.
Características Generales
- Tipo de Conector: Lay-in Ground Lug
- Material: Aluminio
- Acabado: Estañado
- NEMA Code: S-573-2
- Certificaciones: UL, CSA
- Normas: UL 2703 Recognized, CSA C22.2 No. 65-03
