PANDUIT

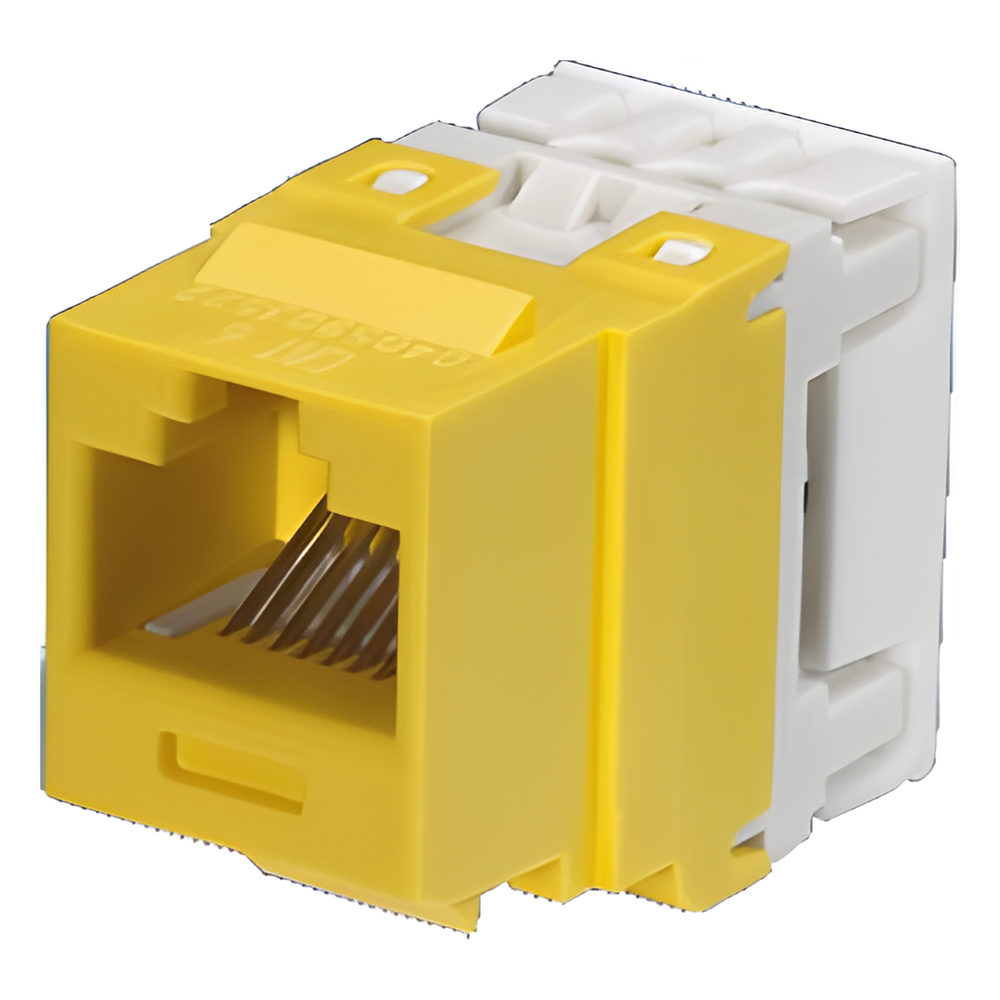

Conector Jack Estilo 110 (de Impacto), Tipo Keystone, Categoría 6, de 8 Posiciones y 8 Cables, Color Amarillo
Conector Jack Estilo 110 (de Impacto), Tipo Keystone, Categoría 6, de 8 Posiciones y 8 Cables, Color Amarillo
Couldn't load pickup availability
Características principales
- Tipo: Módulo Jack de cobre
- Color: Amarillo
- Nivel de desempeño: Categoría 6/Clase E
- Estilo de terminación: De impacto
- Esquema de cableado: T568A/T568B
- Aplicación: Sin blindaje
- Tipo de módulo: Keystone
- Tipo de jack: RJ45
- Tipo de conexión: 110
- Cumple con: RoHS
Especificaciones técnicas
- Estándares: ANSI/TIA-568-C.2, ISO 11801 Clase E
- Frecuencia: Hasta 250 MHz
- Calidad de contactos: 50 microinches de oro
- Temperatura de operación: -10°C a 65°C
- Resistencia de circuito: < 20 mOhms (Normal), < 40 mOhms (Vibración)
- Ciclos de terminación: > 20
- Ciclos de conexión: > 2500
- Corriente: 2500 ciclos con IEEE 802.3af/802.3at y propuesto 802.3bt tipo 3 y 4
- Seguridad: cULus Listed, UL 1863 y CAN/CSA-C22.2
- Compliance: ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-99-001
Información adicional
- Número de serie: Individualmente serializado
- Trayectoria: Marcado con número de control de calidad
- Embalaje opcional: Disponible en paquetes de 25 unidades
