PANDUIT

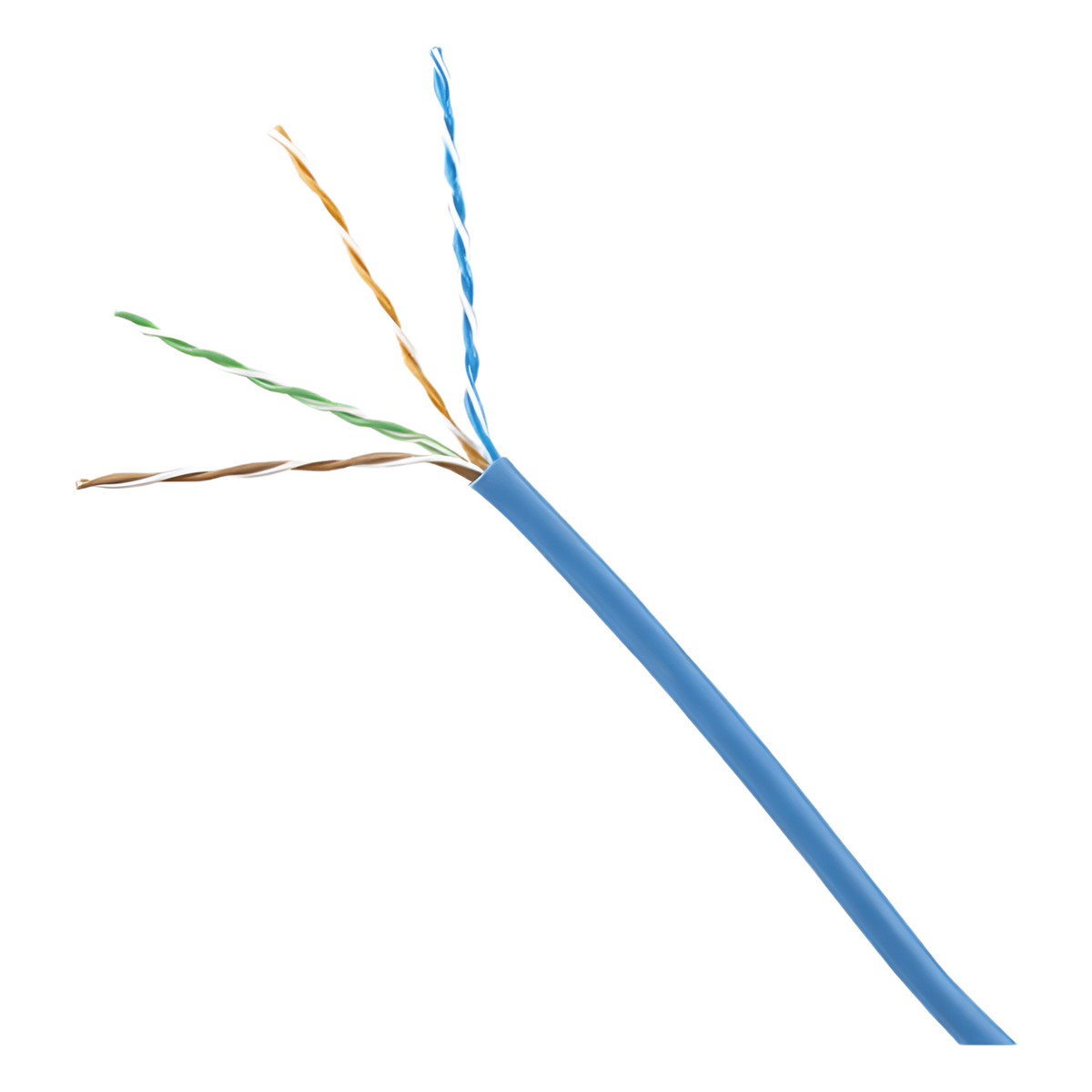

Bobina de Cable UTP 305 Metros (1000 Pies) de Cobre, Azul, Categoría 6 (24 AWG), 1000Mbps, LSZH (Bajo Humo, Cero Halógenos), de 4 Pares

Bobina de Cable UTP 305 Metros (1000 Pies) de Cobre, Azul, Categoría 6 (24 AWG), 1000Mbps, LSZH (Bajo Humo, Cero Halógenos), de 4 Pares

Regular price $ 7,003.12 MXN
Regular price Sale price $ 7,003.12 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Cable UTP Categoría 6 certificado para redes de voz, datos y video de alta velocidad con rendimiento garantizado hasta 100 metros. Fabricado con conductor de cobre sólido 24 AWG aislado con polímero HDPE y recubrimiento LSZH (Low Smoke Zero Halogen) clasificación Euroclass Eca, cumpliendo con los estándares ANSI/TIA-568-C.2 e ISO 11801. Diseñado para aplicaciones profesionales incluyendo CCTV IP Megapixel, TurboHD (TVI), redes inalámbricas y Power over Ethernet IEEE 802.3af y 802.3at. Incluye marcas de longitud descendentes para facilitar la instalación y reducir desperdicios, con diámetro nominal de 5.2 mm y tensión de instalación máxima de 110N.

Características Generales

  • Categoría: 6 UTP
  • Certificación: ANSI/TIA-568-C.2, ISO 11801
  • Conductor: Cobre sólido 24 AWG
  • Aislamiento: Polímero HDPE
  • Recubrimiento: PVC LSZH
  • Color: Azul
  • Marcas: Longitud descendente
Especificaciones Eléctricas
  • Frecuencia: 250 MHz
  • Rendimiento: Hasta 100 metros
  • PoE: IEEE 802.3af y 802.3at
  • AWG: 24 (0.51 mm)
Especificaciones Físicas
  • Diámetro: 5.2 mm (0.2') nominal
  • Peso: 12 kg/305m (26 lbs./1000 ft.)
  • Tensión instalación: 110N (25lbf) máximo
  • Color: Azul
Temperatura y Seguridad
  • Temp. instalación: 0 a 50°C (32°F a 122°F)
  • Temp. operación: -20° a 60°C (14° to 140°F)
  • Clasificación flama: LSZH - IEC 60332-1, IEC 60754-1 and -2, IEC 61034-2, EN50575: Euroclass Eca
Aplicaciones
  • Redes Voz/Datos/Video de Alta Velocidad
  • Instalaciones CCTV IP Megapixel, TurboHD (TVI)
  • Redes inalámbricas
  • Power over Ethernet IEEE 802.3af y 802.3at
Certificaciones
  • ANSI/TIA-568-C.2 Categoría 6
  • ISO 11801
  • IEC 60332-1 (Propagación llama)
  • IEC 60754-1 and -2 (Emisión gases)
  • IEC 61034-2 (Opacidad humo)
  • EN50575: Euroclass Eca
