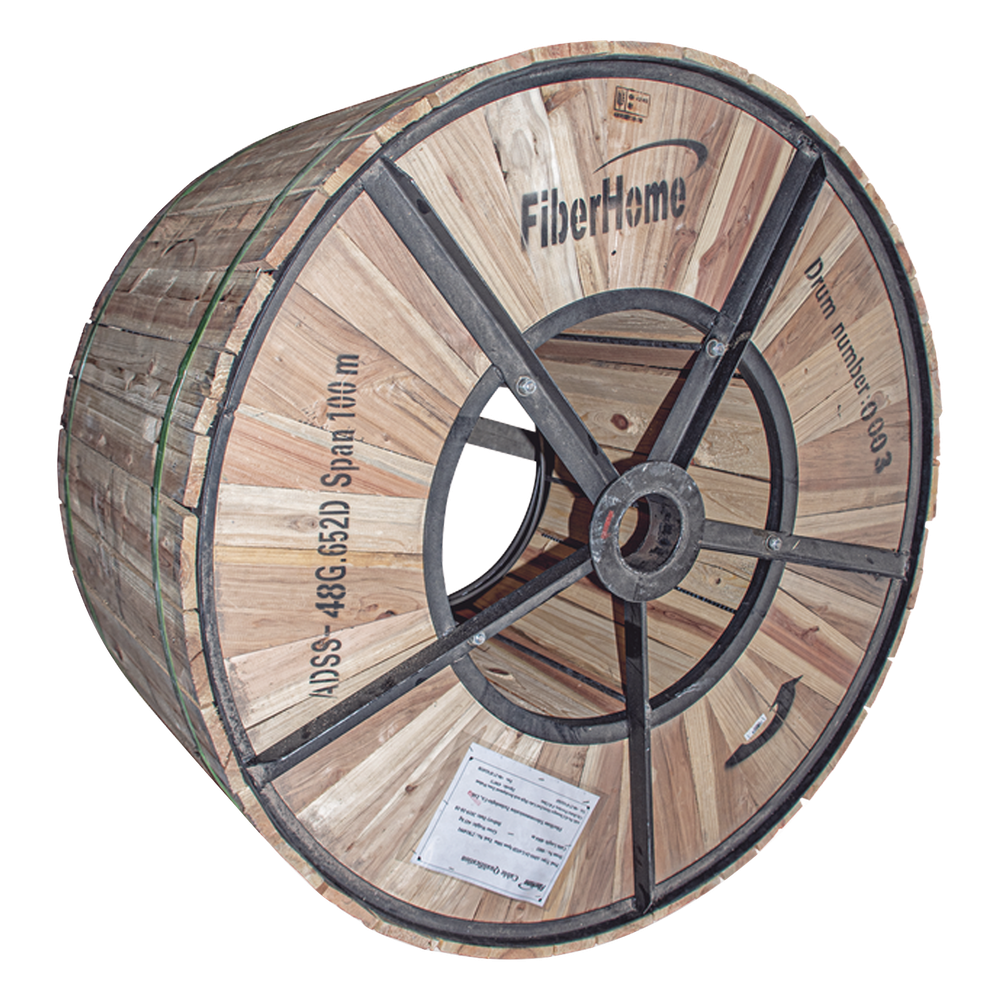

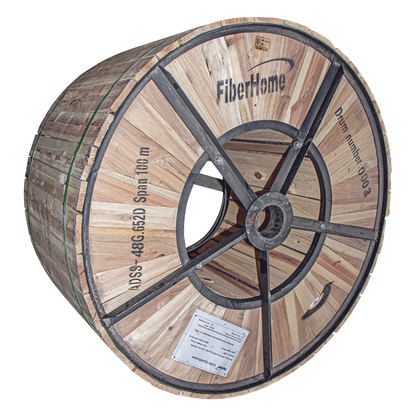

Carrete de 4 km de Fibra Óptica Aérea (ADSS) G.652D, Monomodo de 48 Hilos, Exterior, Span 100, Loose Tube
Carrete de 4 km de Fibra Óptica Aérea (ADSS) G.652D, Monomodo de 48 Hilos, Exterior, Span 100, Loose Tube
Couldn't load pickup availability
El cable de fibra óptica ADSS (All Dielectric Self Supported, completamente dieléctrico y autosoportado) está diseñado para instalaciones aéreas entre postes. Los cables ADSS resisten la tracción necesaria gracias a los hilos de aramida, no contiene elementos metálicos.
Especificaciones Técnicas
- Fibra Óptica: ADSS G.652D Monomodo Loose Tube
- Cubierta Exterior: HDPE (Polietileno de Alta Densidad)
- Máxima tensión: 2500 N
- Anti-tracking: Hasta 110kV
- Temperatura de operación: -20ºC ~ +65ºC
- Span: 100 metros (Distancia entre Postes)
- Protección: Rayos UV y humedad
- Diámetro nominal: 10 ± 0.5mm
- Radio mínimo de curvatura: Instalación 25D, Operación 12.5D
- Resistencia al aplastamiento: 1000N/10cm
- Peso nominal: 77 ± 10 kg/km
- Hilos: 48
- Color: Forro Negro
- Dimensiones del carrete: 1300 x 1300 x 750 mm
- Peso Bruto del Carrete (4 km): 411 kg
