SAMLEX

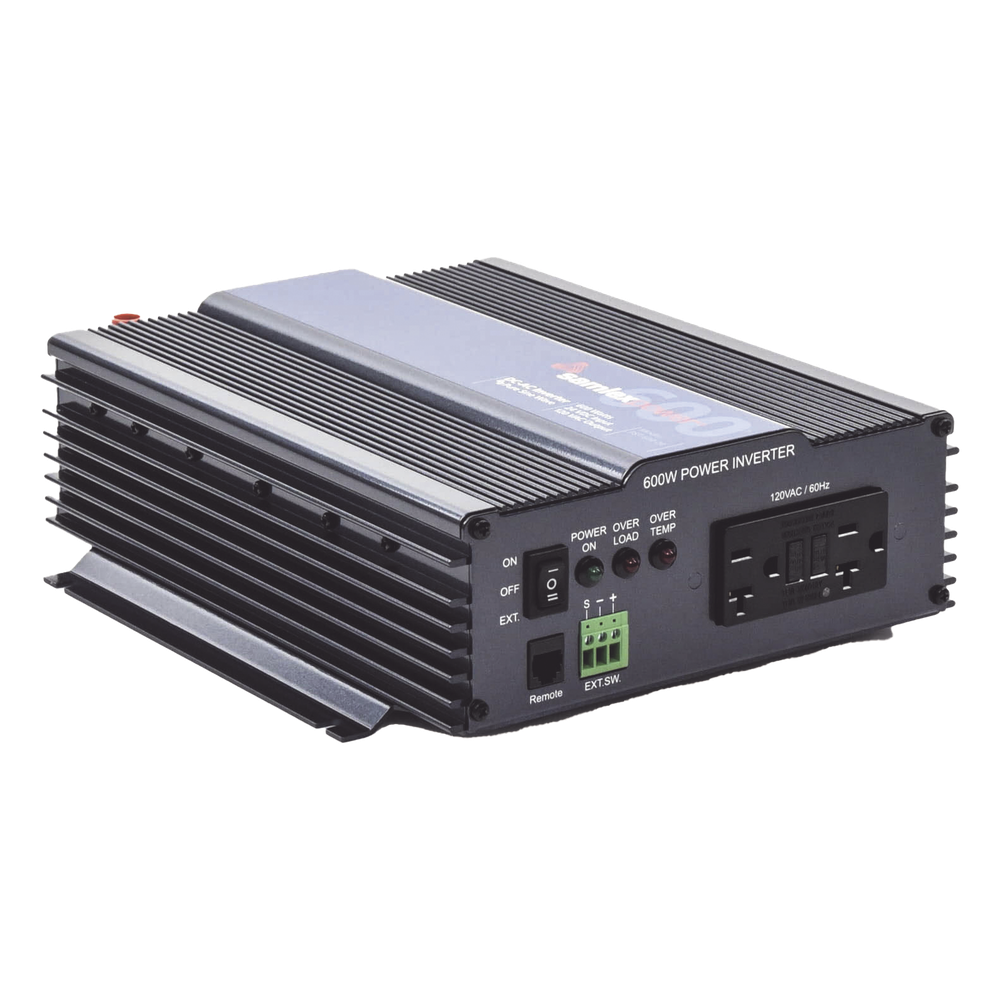

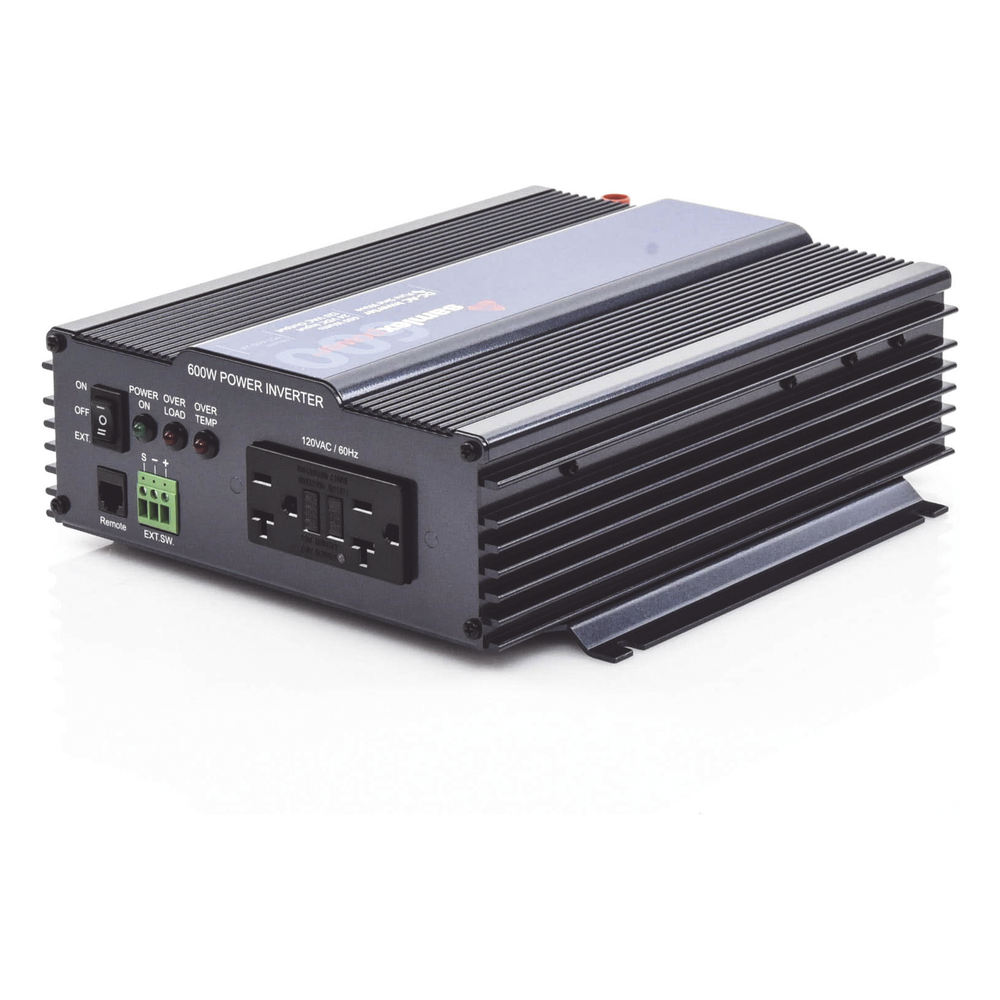

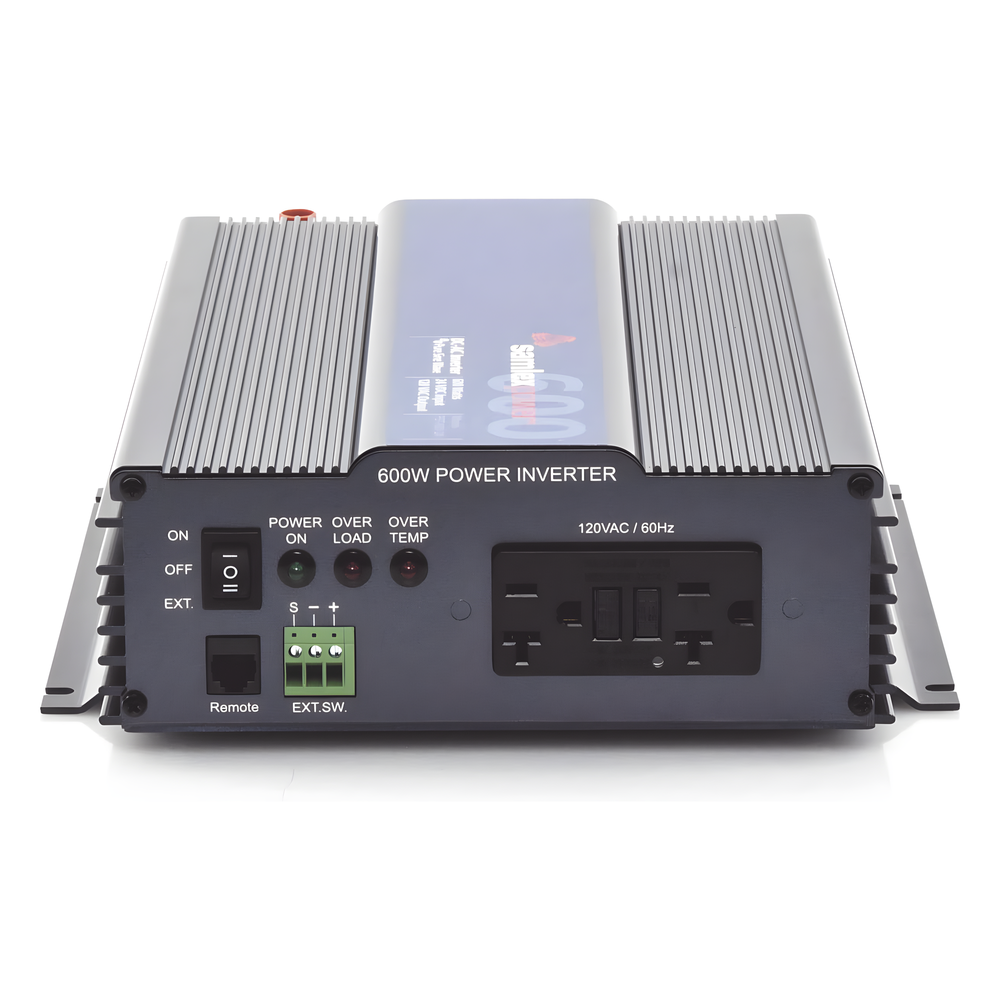

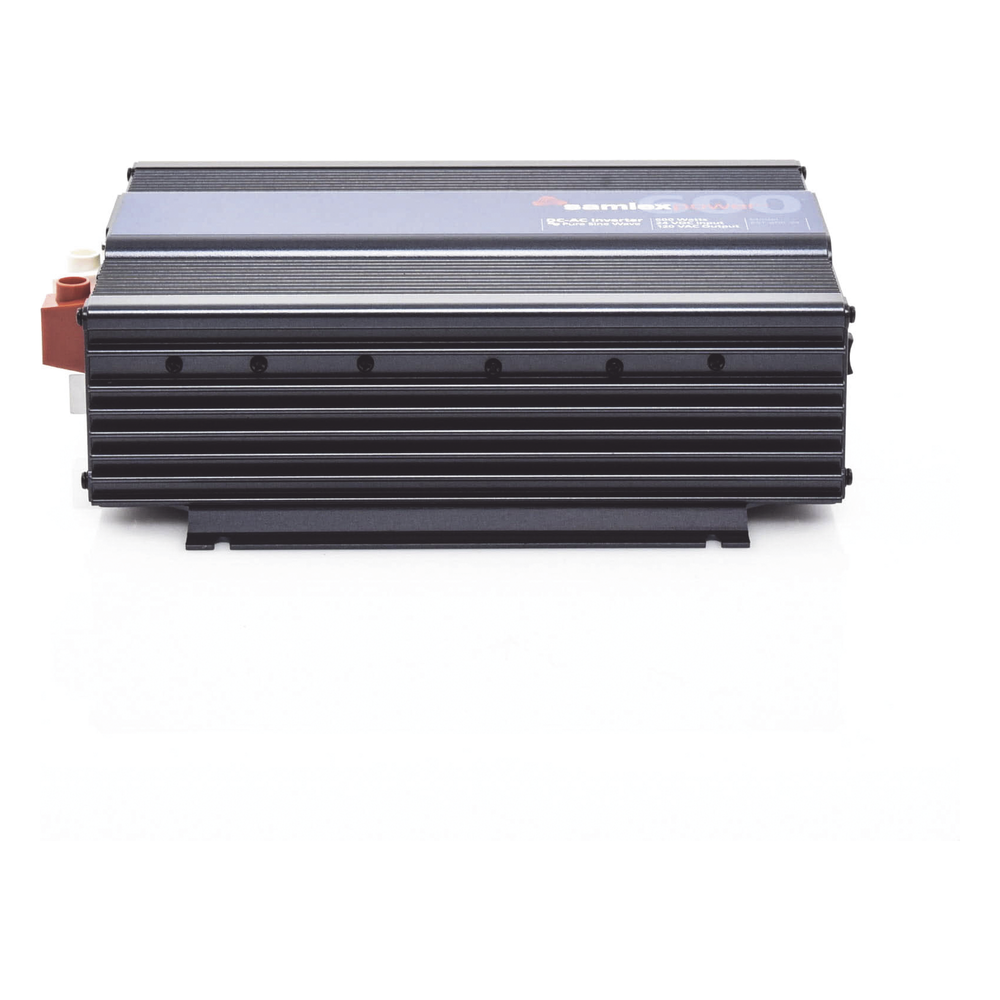

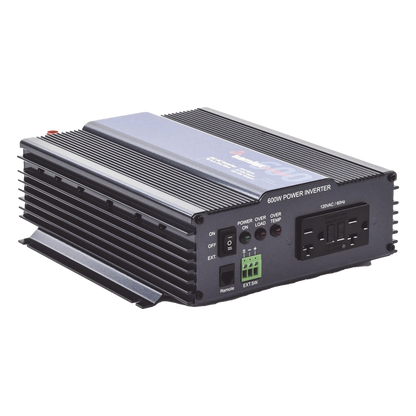

Inversor de Corriente Onda Pura 600W, Entrada 24 Vcc, Salida 120 Vca
Inversor de Corriente Onda Pura 600W, Entrada 24 Vcc, Salida 120 Vca
Couldn't load pickup availability
Características Técnicas
- Voltaje de Entrada: 24 VCC
- Voltaje de Salida: 120 VCA ±3%
- Potencia Nominal: 600W
- Potencia de Pico: 1000W (<8 milisegundos)
- Tipo de Onda: Sinusoidal Pura
- Distorsión Armónica: <3%
- Eficiencia Máxima: <85%
- Canales de Salida: 2 (Dúplex Outlets NEMA-20R GFCI)
Características Eléctricas
- Rango Voltaje Entrada: 21.4 - 33 VCC
- Corriente Máxima Entrada: 40A
- Corriente Sin Carga: <450mA
- Corriente de Salida Máxima: 5.1A
- Frecuencia de Salida: 60Hz ±1%
- Factor de Potencia: 1

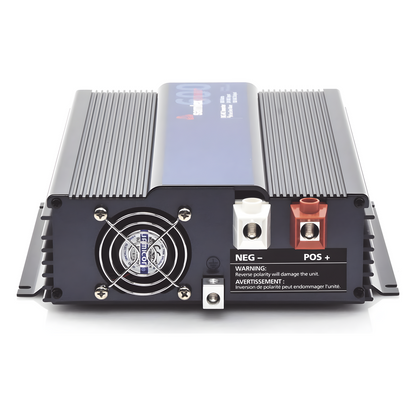

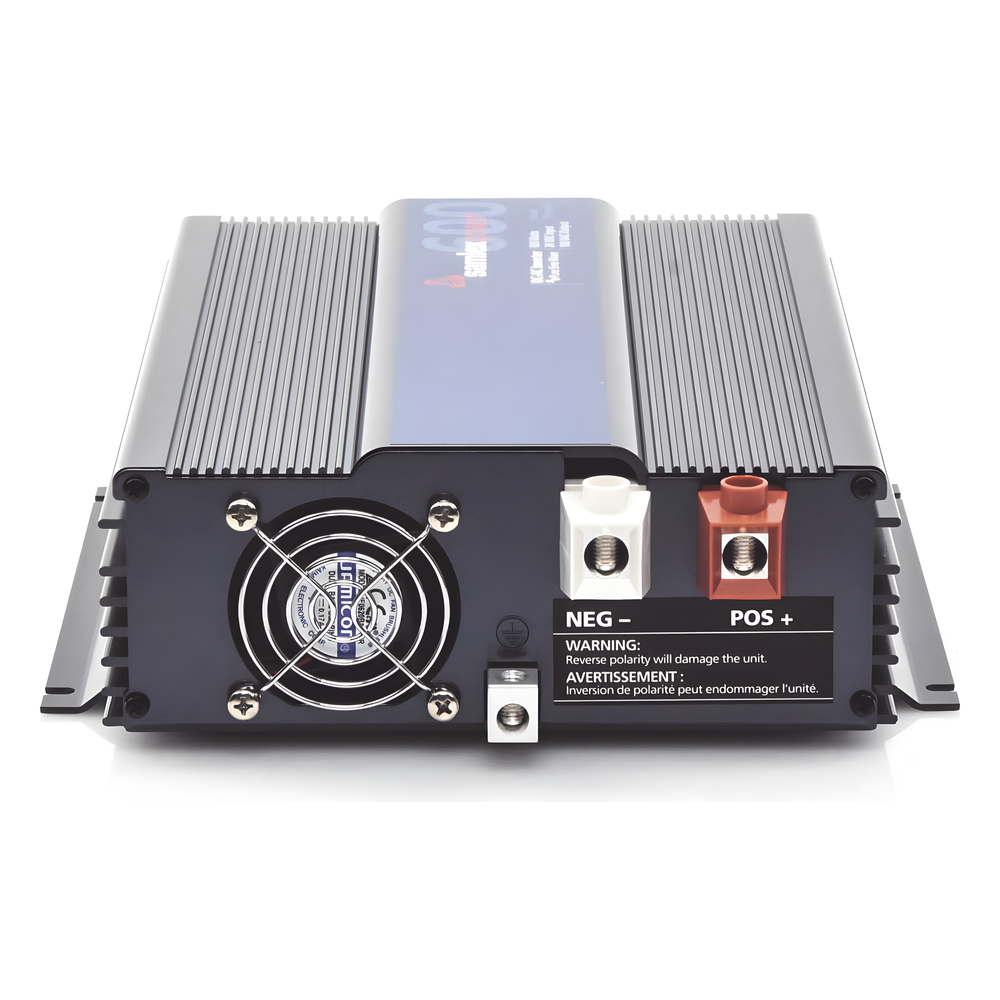

- Conexión Entrada CC: Diámetro del orificio tubular: 11 mm / 0.433'; juego de tornillos M8
Protecciones
- Sobrevoltaje
- Bajo voltaje
- Sobrecarga
- Cortocircuito
- Sobretemperatura
- Fallo de aterrizaje (5-6mA de fuga)
- Reverso de polaridad (con fusibles internos y externos)
Características Físicas
- Dimensiones: 276.2 x 238 x 82 mm (10.87 x 9.37 x 3.23')
- Peso: 2.7 kg (5.9 lbs)
- Rango Temperatura Operación: -20°C a 40°C (-4°F a 104°F)
- Rango Temperatura Almacenamiento: -30°C a 70°C (-22°F a 158°F)
- Humedad Relativa: 90% sin condensación
- Sistema de Enfriamiento: Aire forzado con ventilador controlado por temperatura (Encendido a 55°C ±3°C, Apagado a 45°C ±3°C)
Conformidad y Certificaciones
- UL 458
- CSA Std. C22.2 No. 107.1
- FCC Parte 15 Clase B
- Listado por Intertek
Otras Características
- Diseño de grado comercial para uso rudo y respaldo de emergencia
- Bajo consumo de energía en reposo
- Doble toma de CA protegida con GFCI
- Control remoto opcional (Modelo RC-15A, se vende por separado)
- Entrada remota para encendido/apagado
- Indicación visual mediante LED
- Incluye cables de batería con pin
