CAMBIUM NETWORKS

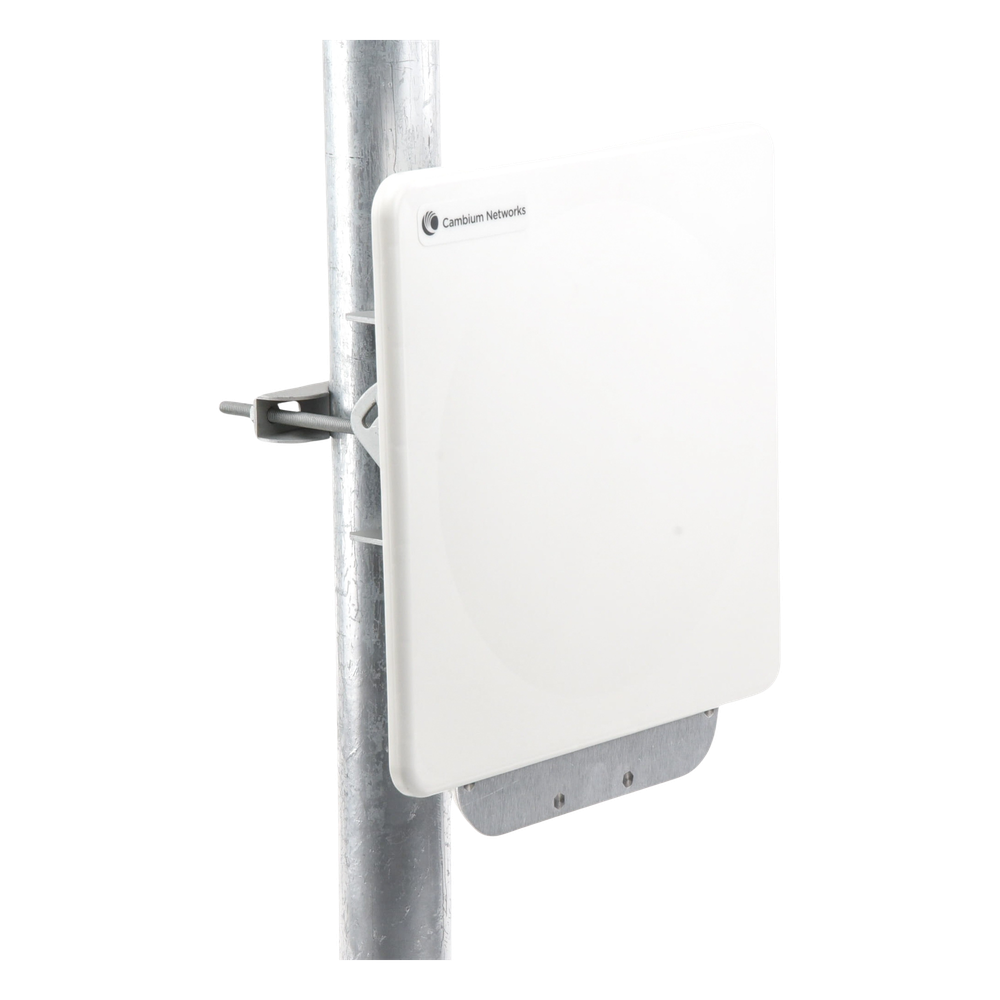

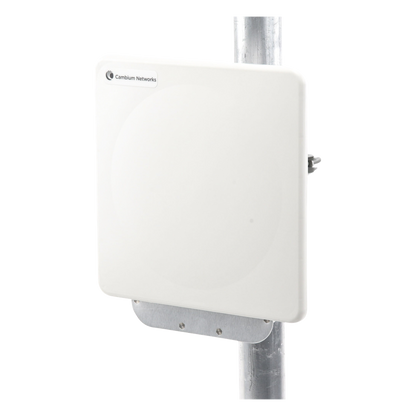

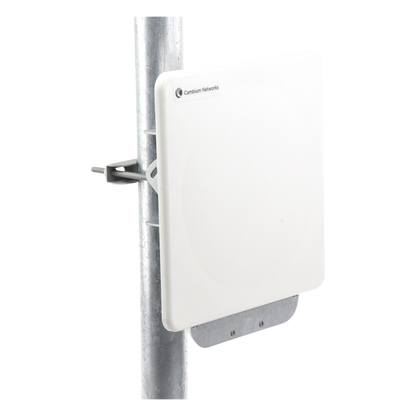

Backhaul radio + antena integrada (Alta ganancia 23 dBi), 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Reales C050067H010A
Backhaul radio + antena integrada (Alta ganancia 23 dBi), 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Reales C050067H010A
Couldn't load pickup availability
PTP 670 Series
Banda Ancha Inalámbrica de Alta Capacidad y Flexibilidad HCMP
Eficiencia y Autonomía
- DSO (Dynamic Spectrum Optimization): Optimización automática de canales para máxima fiabilidad.
- Antena Integrada: Panel de 23 dBi de alta ganancia para enlaces de largo alcance.
- Seguridad: Encriptación AES de 128/256 bits y autenticación RADIUS.
- Puertos: Dual GbE y puerto SFP para fibra óptica.
Versatilidad HCMP
La tecnología High-Capacity Multipoint (HCMP) permite conectar hasta 8 nodos remotos a un solo punto de acceso, ideal para videovigilancia y despliegues críticos sin sacrificar ancho de banda.
* Incluye Montaje y PoE (AC + DC).
Especificaciones Técnicas
| Ancho de Canal | 5, 10, 15, 20, 30, 40 y 45 MHz |
| Eficiencia Espectral | 10 bps/Hz |
| Protección Ambiental | IP66 e IP67 (Grado Industrial) |
| Potencia de Transmisión | Hasta 27 dBm |
| Consumo Energético | 30 W (Máximo 70 W con salida PoE Auxiliar) |
Rendimiento HCMP @ 40 MHz (Simetría 1:1)
| Número de Nodos | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|
| Capacidad (Mbps) | 162 | 106 | 80 | 66 | 56 | 45 | 42 |
