RF INDUSTRIES,LTD

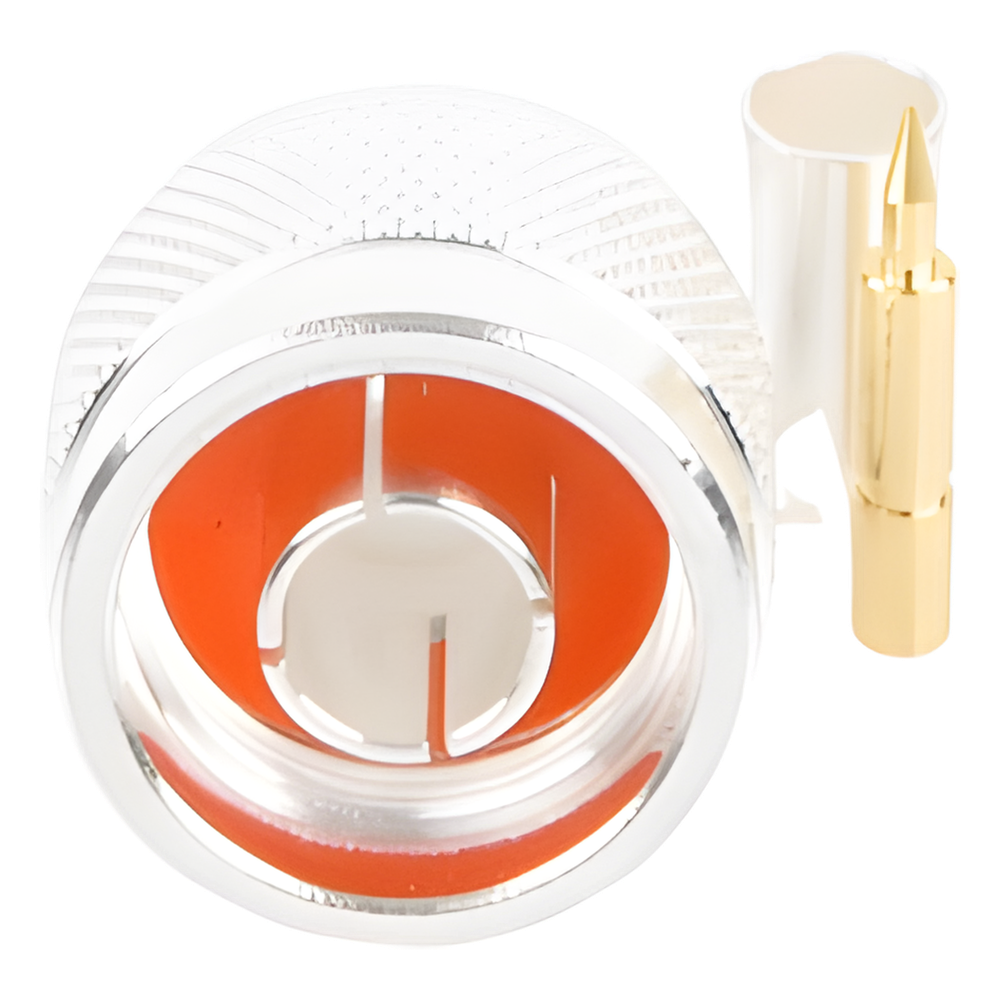

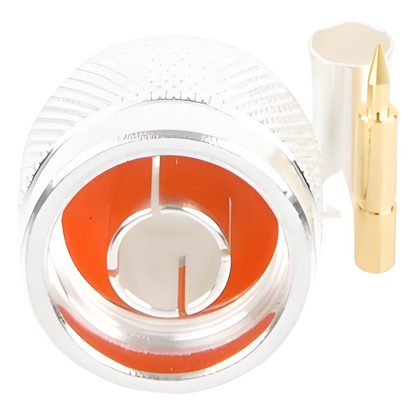

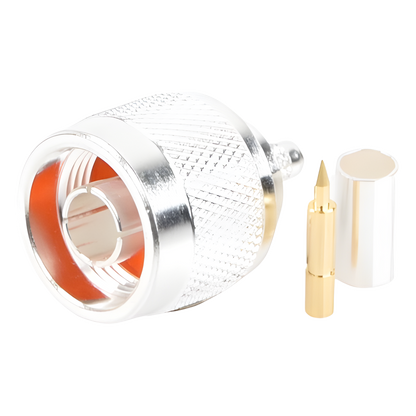

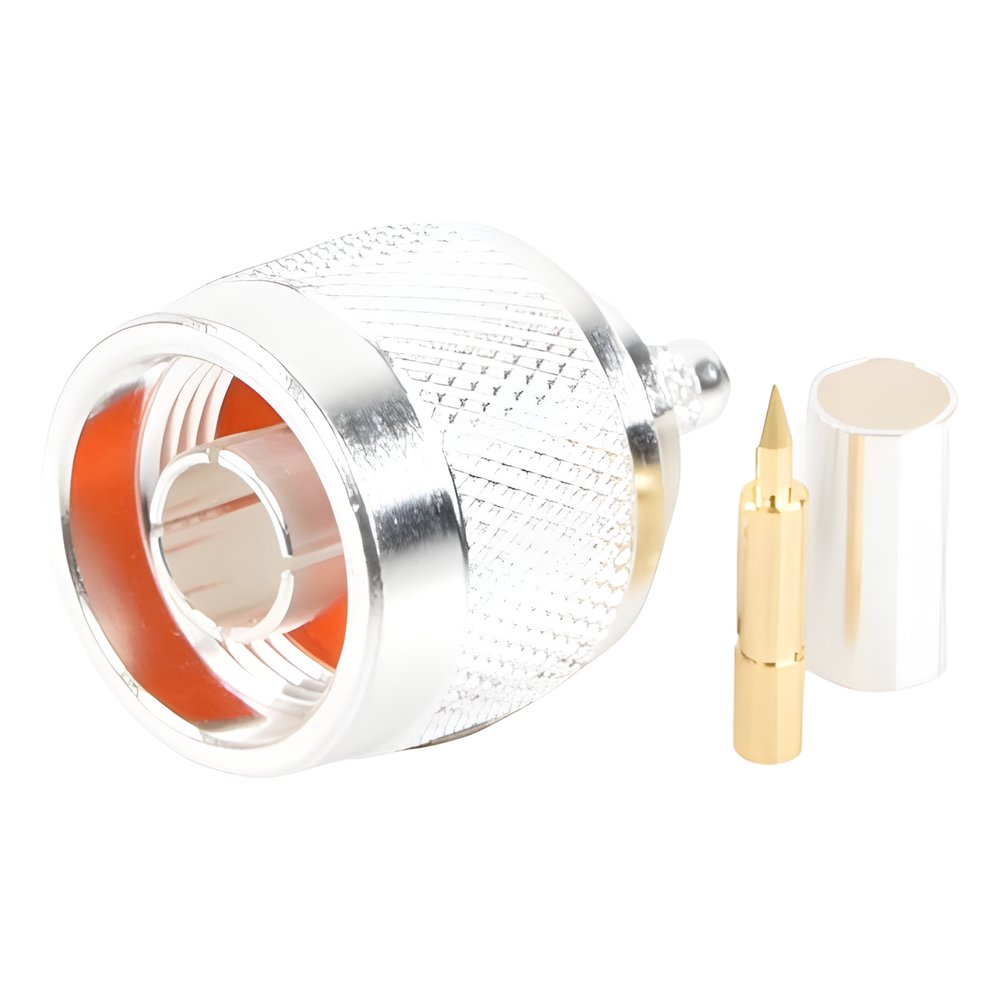

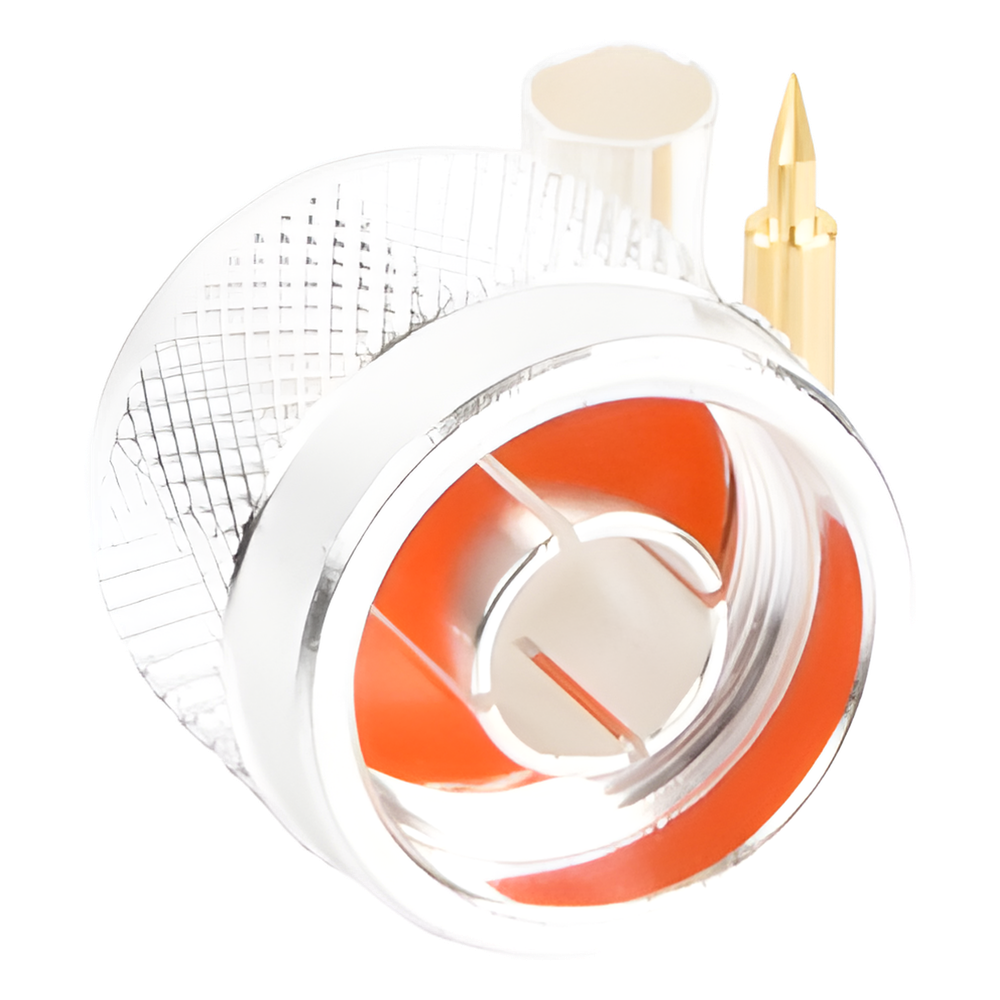

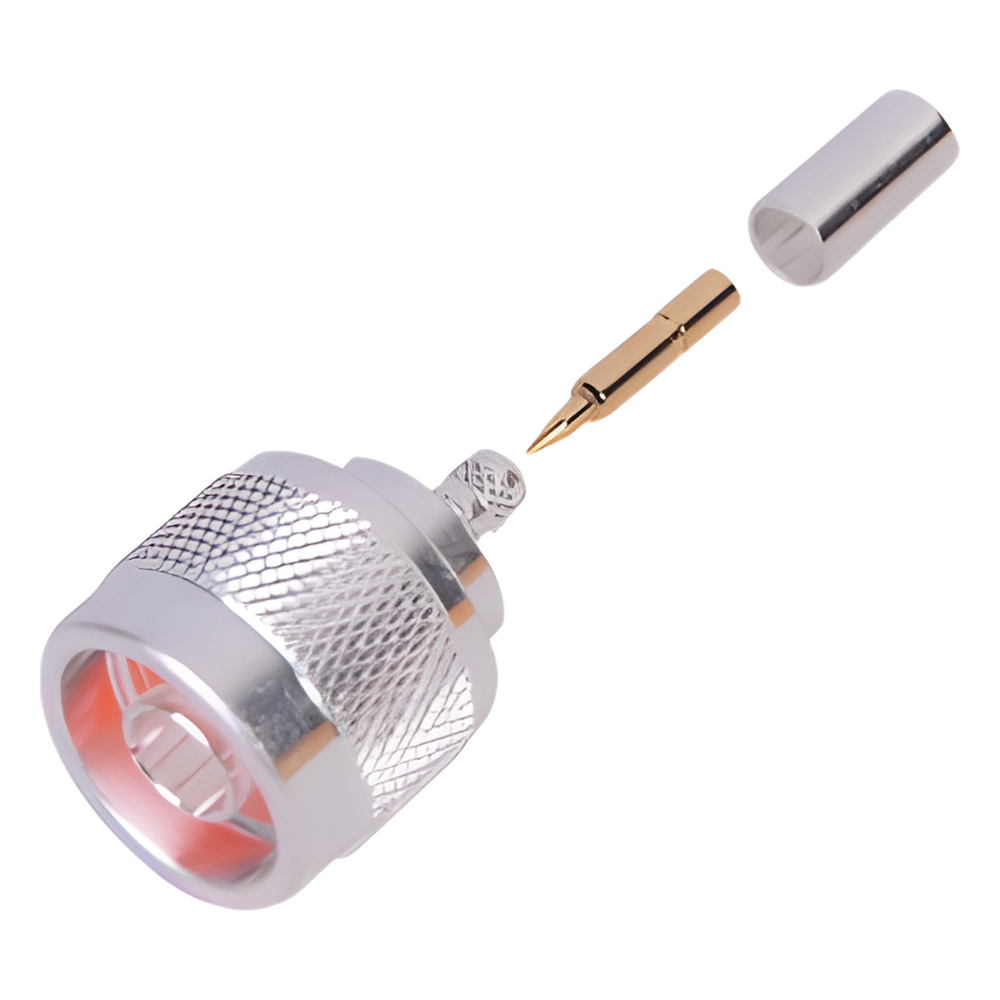

Conector N Macho de Anillo Plegable para Cable LP-195, RG-58/U, Plata/ Oro/ Teflón
Conector N Macho de Anillo Plegable para Cable LP-195, RG-58/U, Plata/ Oro/ Teflón
Couldn't load pickup availability
Características principales
- Conector N macho para cable RG-58/U
- Ensamble con anillo plegable preciso y efectivo
- Cuerpo de bronce con acabado plateado
- Contacto central chapado en oro
- Aislante dieléctrico fabricado en teflón
Especificaciones eléctricas
- Impedancia: 50 Ω
- Tensión de trabajo: 1,000 VRMS (dependiente del cable)
- Rango de frecuencia: 0-11 GHz
Especificaciones mecánicas
- Tipo de acoplamiento: Rosca 5/8 - 24
- Estándar de interfaz: MIL-STD-348, Sección 304
- Método de cableado: Abrazadera, soldadura y prensado
- Acabado del cuerpo: Plateado (N - Níquel)
- Material dieléctrico: PTFE (Teflón)
Notas de compatibilidad
Este conector pertenece al grupo C2 de cables y es compatible con los siguientes tipos:
- Times LMR-200
- Alpha 9848
- Belden 82240
- CommScope AMC-58LL
- WBC-200
- TCOM-200
- HPF200
Para cables coaxiales LP-195, RG-58/U, RG-142, LP142, LMR-195, CNT-195
Herramientas recomendadas:
CCT-03 -- Herramienta de corte
CST-195 -- Herramienta para preparar el cable
CT-240/195 -- Pinzas para plegar anillo de conector
Herramientas recomendadas
- Herramienta de crimpado: RFA-4009-206
- Herramienta de soldadura: RFA-4005-200
