RF INDUSTRIES,LTD

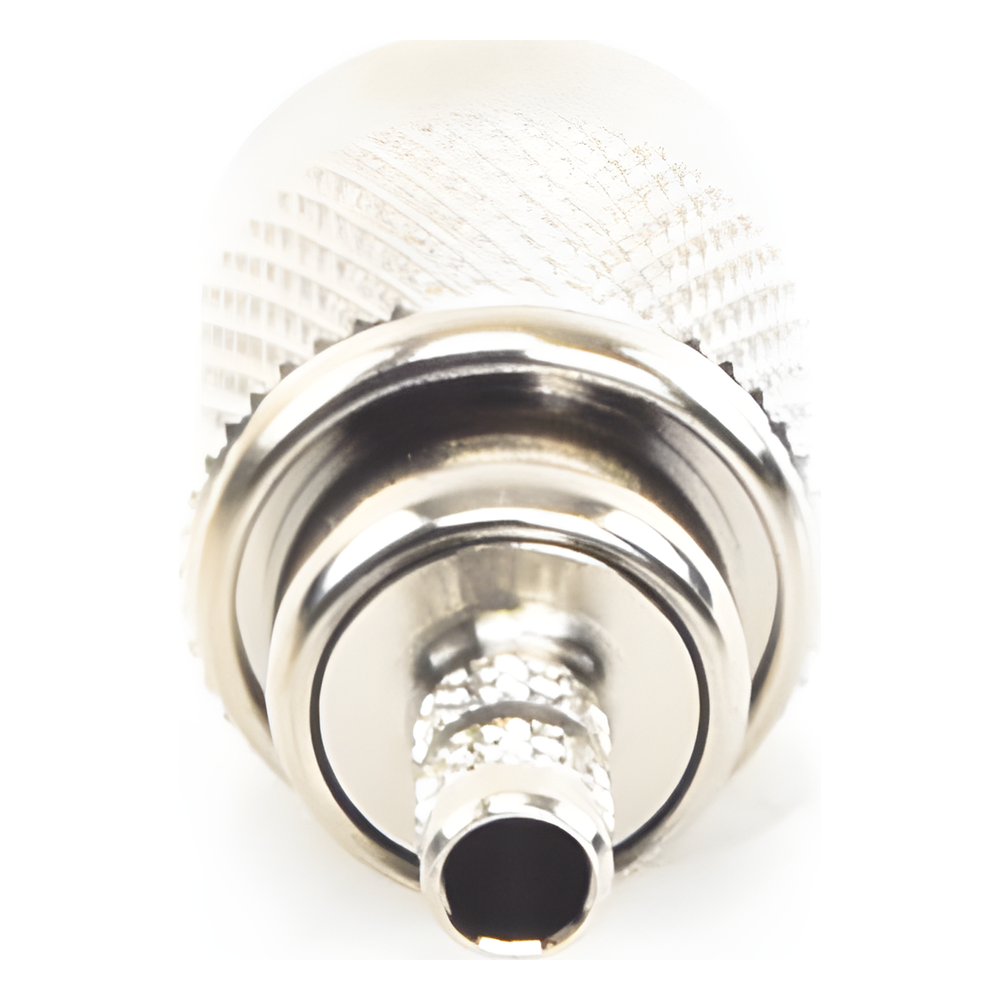

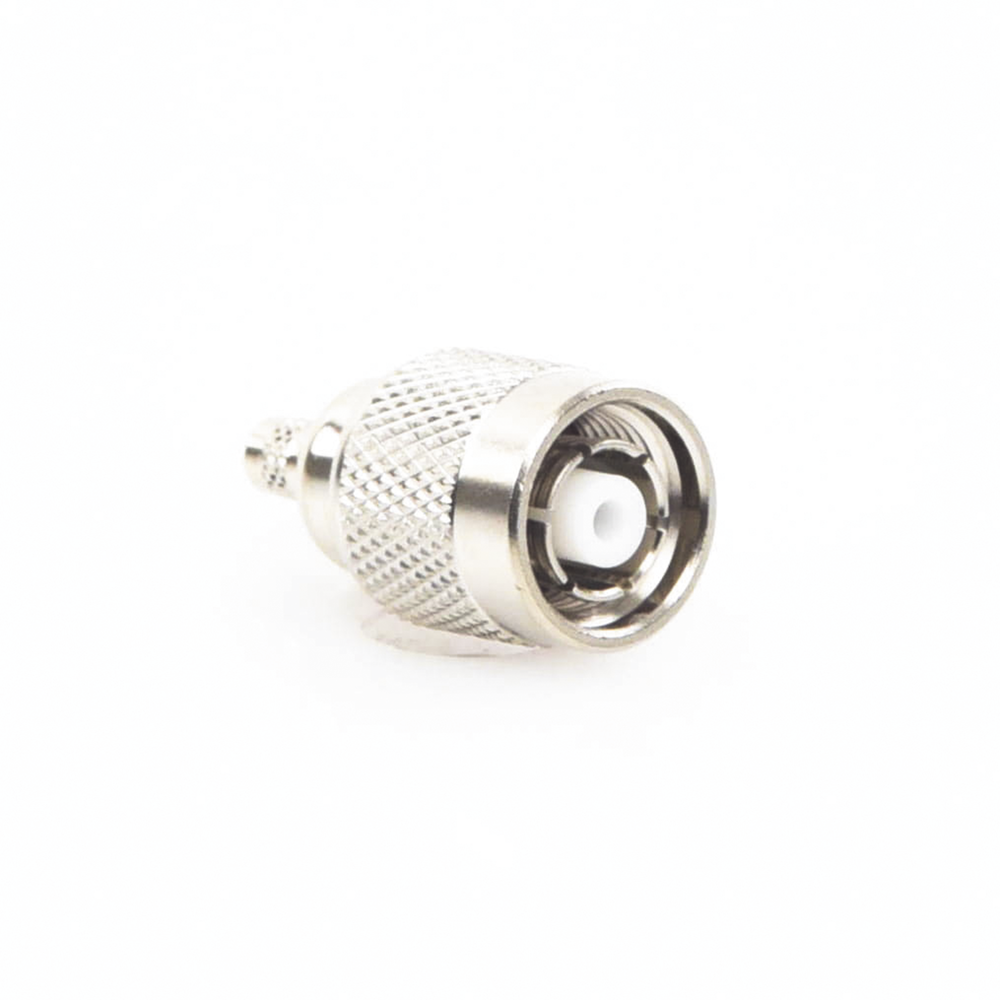

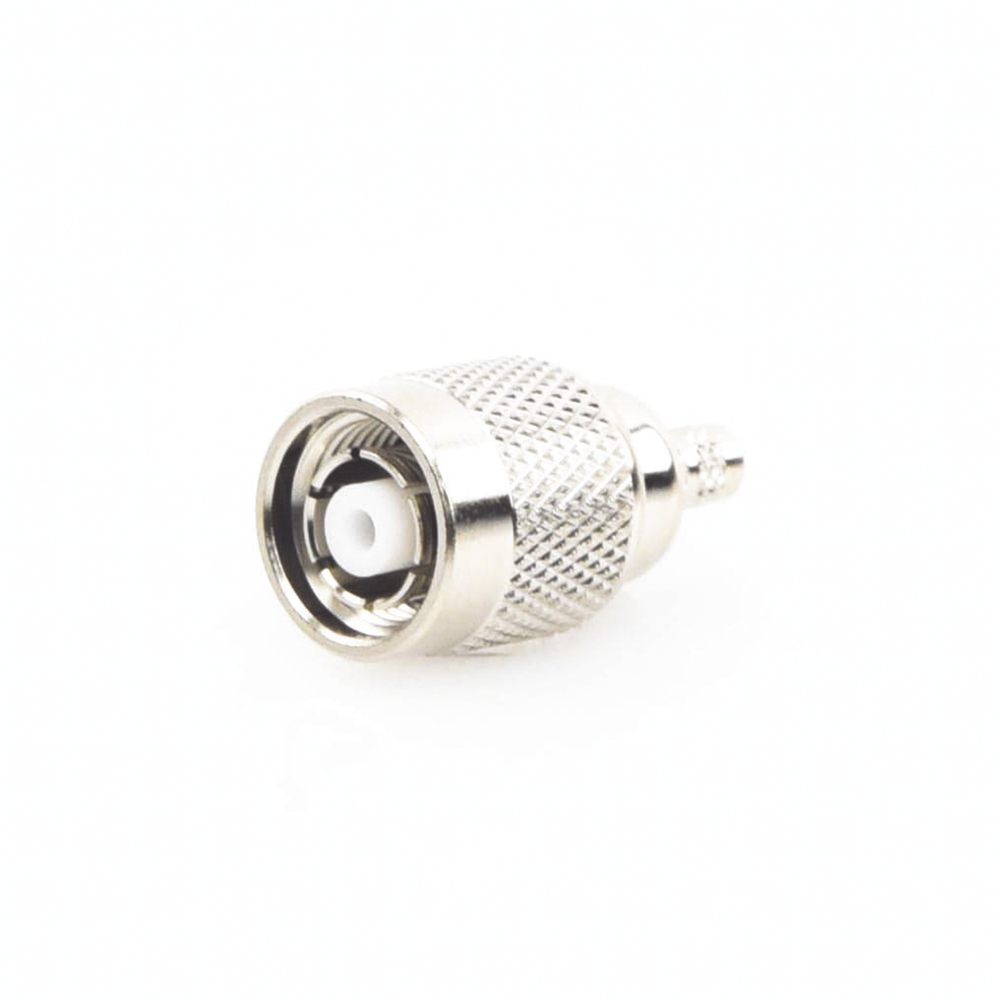

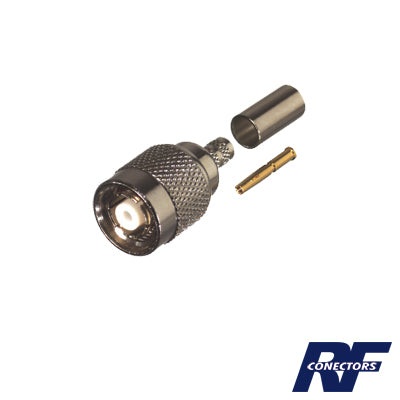

Conector TNC Macho Inverso de Anillo Plegable para Cable RG-142/U, Níquel/ Oro/ Teflón
Conector TNC Macho Inverso de Anillo Plegable para Cable RG-142/U, Níquel/ Oro/ Teflón
Couldn't load pickup availability
Características Principales
- Conector TNC macho inverso para RG-142/U
- Anillo plegable para fácil ensamble
- Cuerpo de bronce con recubrimiento de níquel
- Contacto central chapado en oro
- Aislante dieléctrico de teflón
Especificaciones Técnicas
- Tipo de Conector: TNC Macho Inverso
- Especial para Cable: RG-142/U
- Modo de Ensamble: Anillo plegable
- Impedancia: 50 Ohm
- Tipo de Ajuste: Crimp
Materiales
- Cuerpo: Bronce niquelado
- Contacto Central: Oro
- Aislante Dieléctrico: Teflón (PTFE)
Aplicaciones
- Sistemas de comunicaciones inalámbricas
- Equipos de prueba y medición RF
- Redes de datos de alta frecuencia
- Telecomunicaciones y redes celulares
- Equipos médicos y militares
Para cables coaxiales LP-195, RG-58/U, RG-142, LP142, LMR-195, CNT-195
Herramientas recomendadas:
CCT-03 -- Herramienta de corte
CST-195 -- Herramienta para preparar el cable
CT-240/195 -- Pinzas para plegar anillo de conector
Información Adicional
- Temperatura de Operación: -55°C a +165°C
- Resistencia a Vibración: MIL-STD-202F, método 204D
- Resistencia a Impacto: MIL-STD-202F, método 213B
- Resistencia a la Humedad: MIL-STD-202F, método 106E
Normas y Certificaciones
- MIL-C-39012
- IEC 61164
- RoHS Compatibile
- CE
