UBIQUITI

USW Pro XG 10 PoE Switch PoE+++ Capa 3 Etherlighting™ de 10 Puertos 10GbE (Todos PoE+++) y 2 Puertos SFP+ con Disponibilidad PoE de 400W

USW Pro XG 10 PoE Switch PoE+++ Capa 3 Etherlighting™ de 10 Puertos 10GbE (Todos PoE+++) y 2 Puertos SFP+ con Disponibilidad PoE de 400W

Regular price $ 26,854.84 MXN
Regular price Sale price $ 26,854.84 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

USW Pro XG 10 PoE

Modelo: USW-Pro-XG-10-PoE

Switch PoE+++ Capa 3 10G Etherlighting™ con 10 puertos 10 GbE y 2 puertos SFP+.

Especificaciones
Características principales
  • Puertos Etherlighting™ que se iluminan para indicar la ubicación del puerto, velocidad/enlace y VLAN/red nativa*
  • (10) puertos PoE+++ de 10 GbE
  • (2) puertos SFP+ de 10 G
  • Preparado para respaldo de energía CC** (requiere UniFi RPS)
  • Disponibilidad total de PoE: 400 W

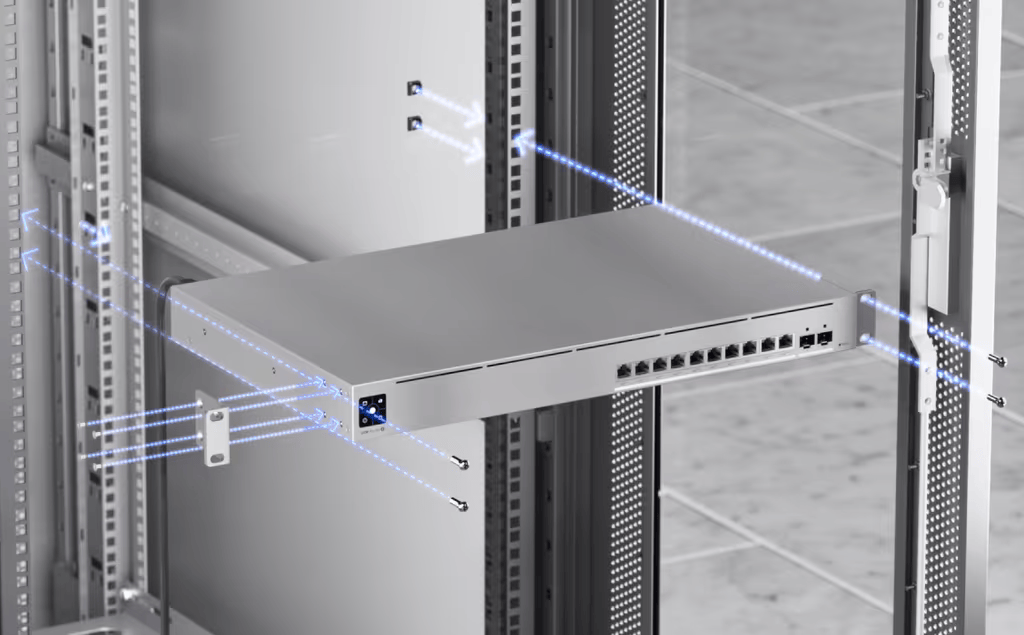

  • Montaje en rack 1U
Características físicas y eléctricas
  • Dimensiones: 442.4 × 285 × 44 mm (17.4 × 11.2 × 1.7')
  • Peso: 4.7 kg (10.36 lb)
  • Material: Acero SGCC
  • Puertos: 10× (PoE+++) 10G/5G/2.5G/1G/100M; 2× SFP+
  • Disponibilidad PoE: 400 W
  • Alimentación: Entrada universal 100–240 VCA 50/60 Hz y UniFi RPS
  • Temperatura de operación: −5 a 40 °C (23 a 104 °F)
  • Humedad de operación: 10–90% sin condensación
Rendimiento
  • Capacidad de Switching: 240 Gbps
  • Throughput Non-Blocking: 120 Gbps
  • Forwarding Rate: 179 Mpps
  • VLANs soportadas: 1,000
  • Tabla MAC: 32,000
  • Tabla L3: ARP 12,000; Rutas IPv4 12,000
  • ACL: IPv4 128; MAC 128
Características Capa 3
  • DHCP Server (redes locales)
  • DHCP Relay
  • Inter-VLAN Routing (redes locales)
  • Ruteo estático (redes locales)
Características Capa 2
  • LACP Port Aggregation
  • STP & RSTP
  • QoS (DSCP)
  • Configuración avanzada de IGMP
  • IGMP Snooping
  • Multicast & Broadcast Rate Limiting
  • MAC Address Blocking
  • IP-Based ACLs & Network Isolation
  • MAC-Based Port Restriction
  • Port Isolation
  • Port Mirroring
  • Jumbo Frames
  • LLDP-MED
  • Voice VLAN
  • Loop Protection

Accesorios Recomendados

UACC-CABLE-PATCH-EL-2M-W

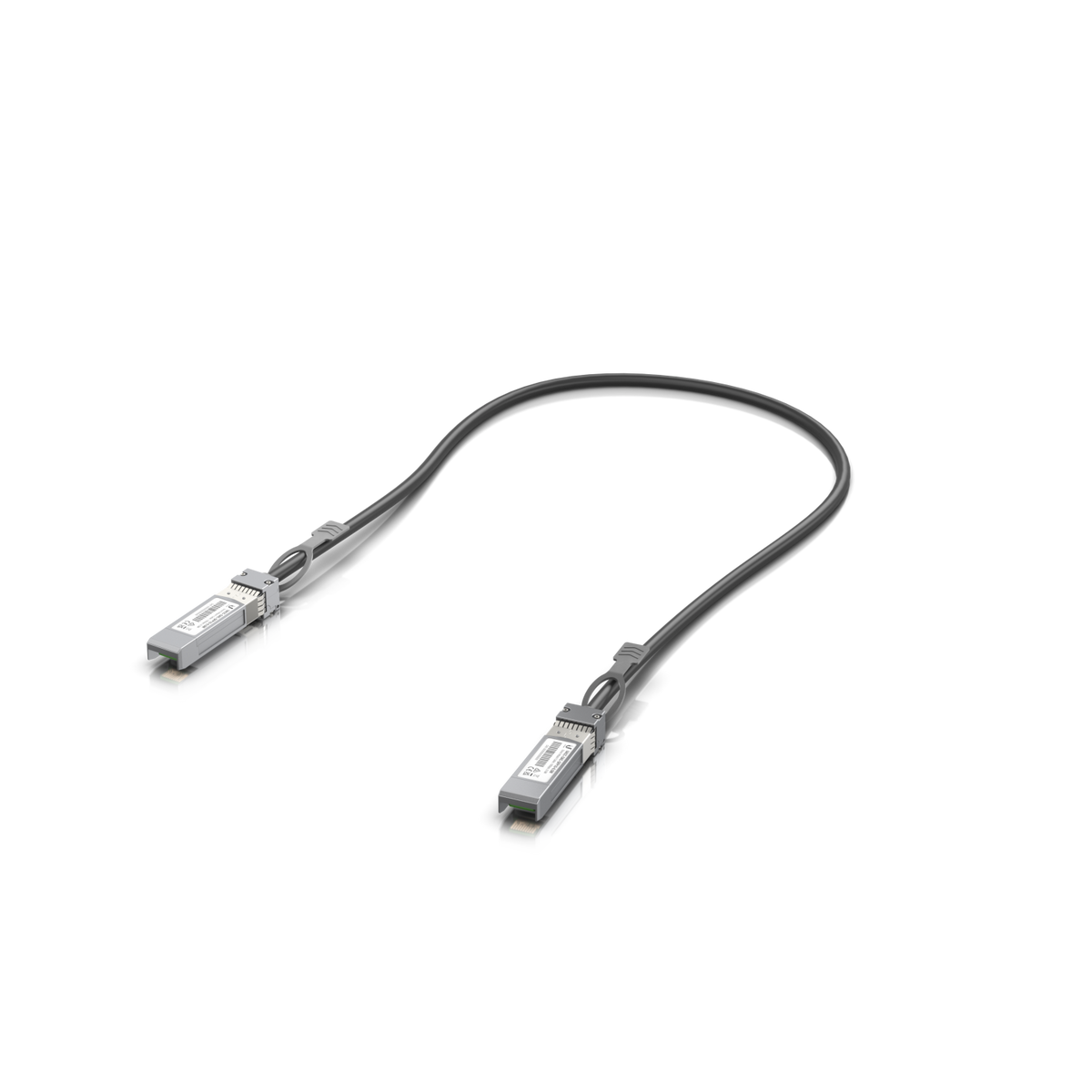

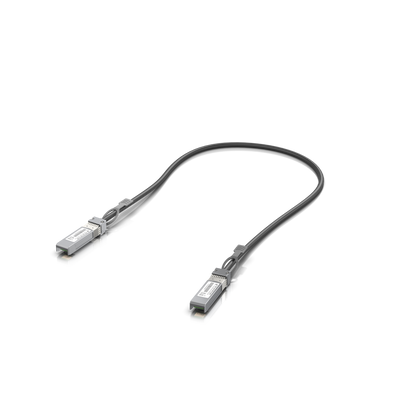

UACC-DAC-SFP10-1M

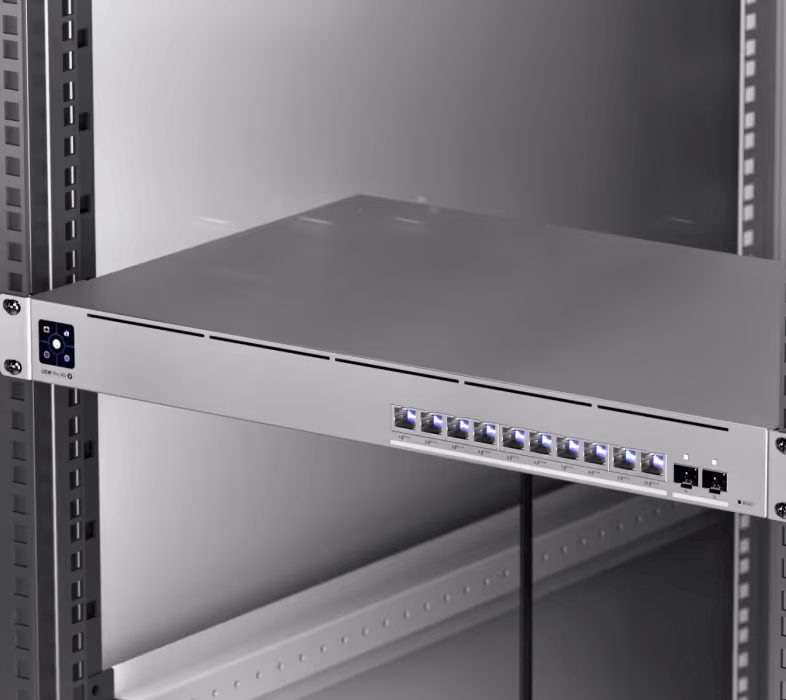

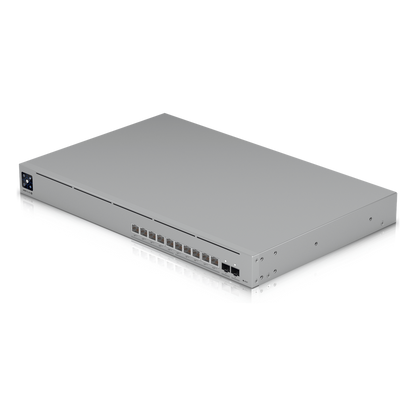

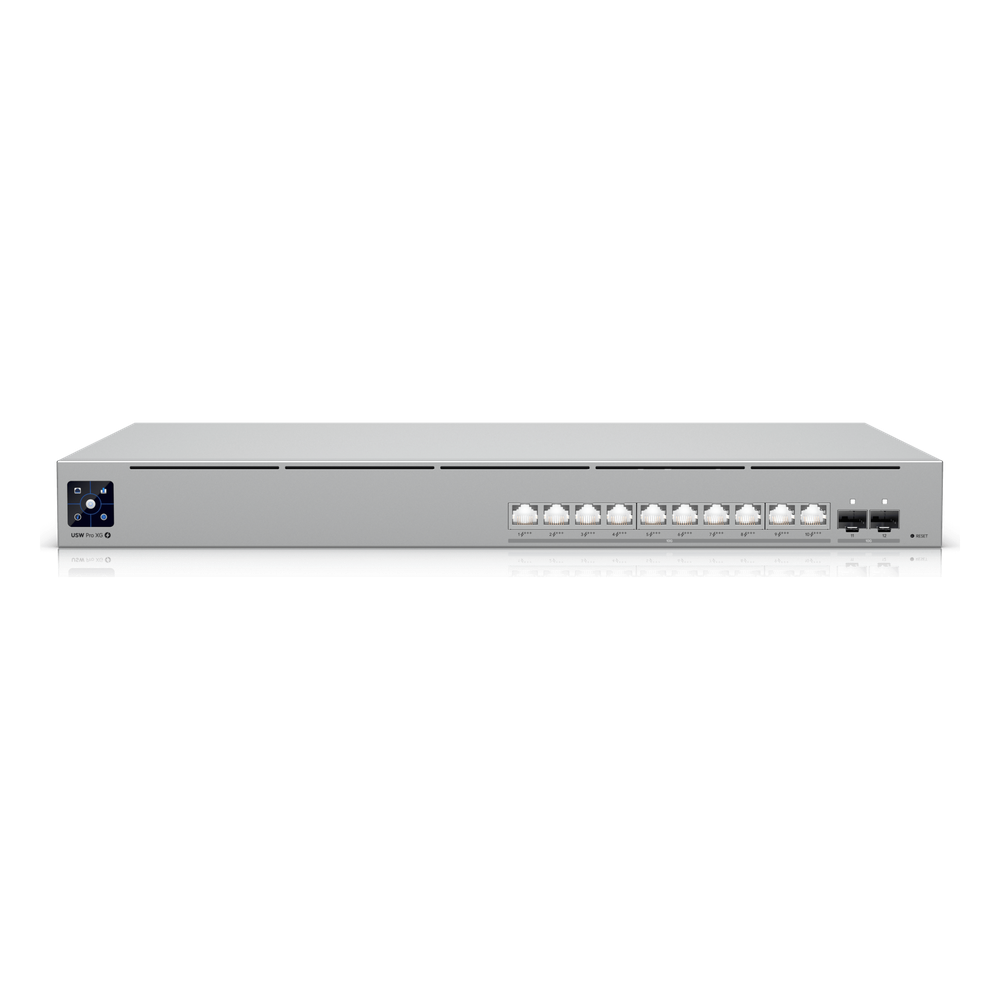

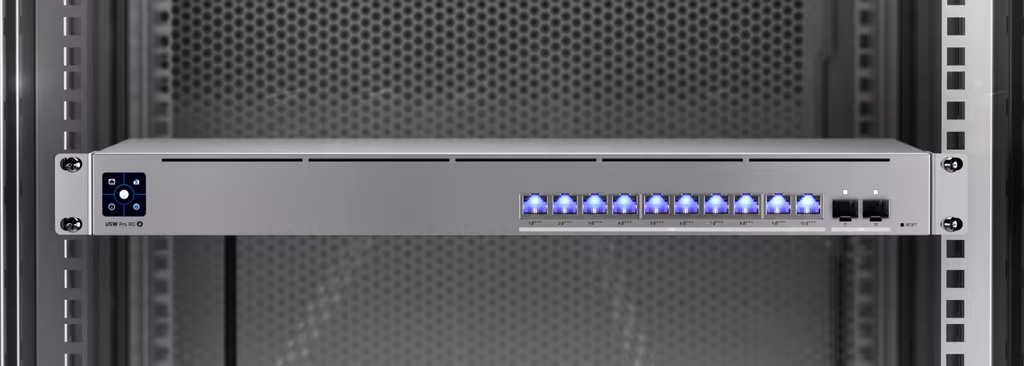

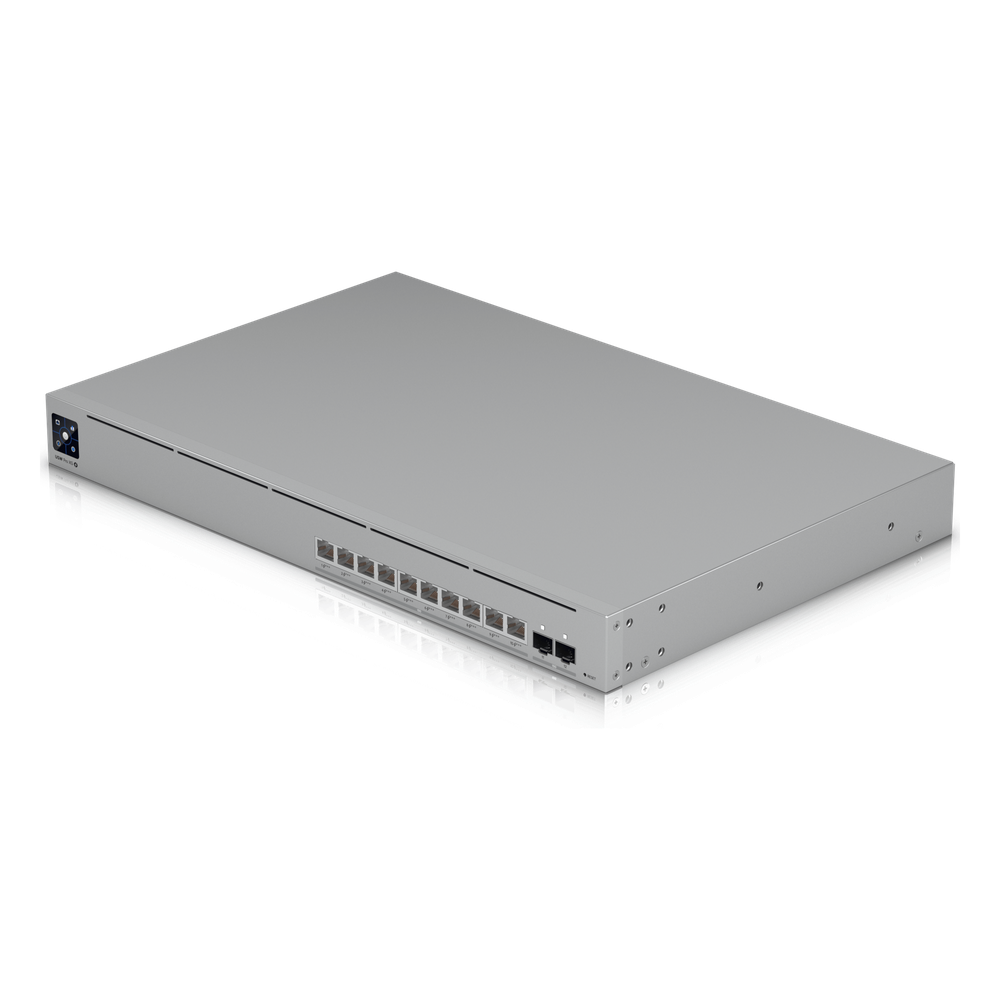

Vista del producto

Contenido del Paquete

View full details
