EPCOM POWERLINE

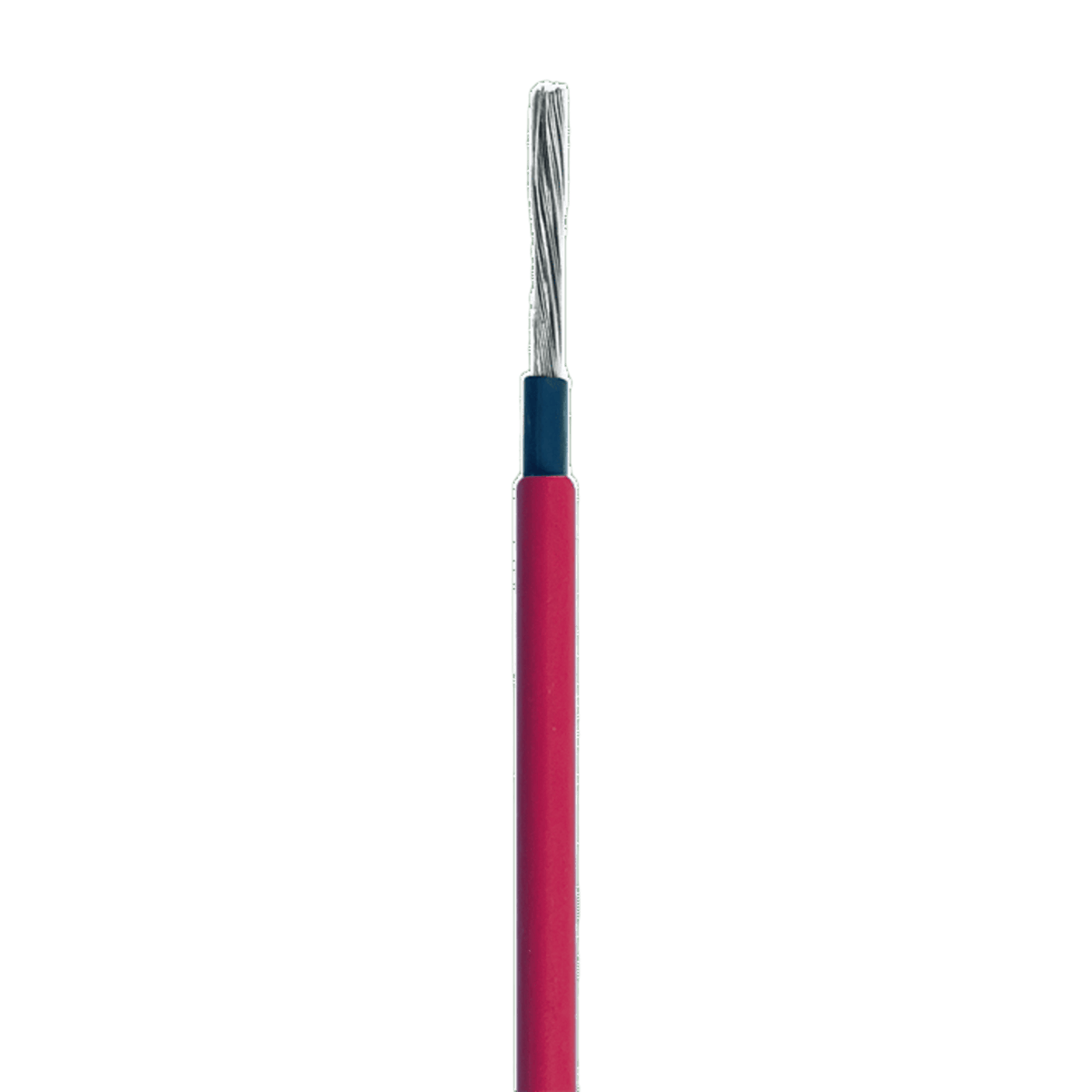

Cable Fotovoltaico Rojo / Cobre Estañado / 6 mm² (10 AWG) / 2000V / Rollo 500m / UL 4703 y TUV
Cable Fotovoltaico Rojo / Cobre Estañado / 6 mm² (10 AWG) / 2000V / Rollo 500m / UL 4703 y TUV
Couldn't load pickup availability
CBLUT10R /500
Carrete de 500 m Cable Fotovoltaico Rojo / 6 mm² (10AWG)
TCA Aleación de Cobre Estañado Tipo PV, 1000 / 2000 V 120°C
Cable formado por un conductor flexible de cobre suave, con aislamiento de polietileno de cadena cruzada XLPE
Características
- El conductor es cobre suave en cableado
- Alta resistencia a los rayos UV, al ozono y a la hidrolización.
- Resistencia a altas temperaturas
- Flexibilidad en condiciones de frío
- Vida útil esperada de más de 25 años
Características Físicas y Eléctricas
- Material Cobre desnudo
- Tipo PV
- Tamaño: 6 mm²
- Calibre: 10 AWG
- Material: TCA (Aleación de Cobre Estañado)
- Diámetro del conductor: 3.39 mm
- Diámetro del conductor externo: 7.27 mm
- Tensión máxima de operación: 1000 / 2000 V
- Color externo: Rojo
- Temperatura de operación: -40°C a 120°C
- Estándares:
- Rendimiento a prueba de fuego: IEC602332-1; IEC602332-24
- Emisión de humo: IEC61034, EN61034-2
- Baja carga de fuego: DIN 51900
- Aprobación: UL 4703 y TUV PPP58209A
Modelos Relacionados
- 6 mm² (10 AWG):
- CBLPV10R/25. 25M / Rojo / 6 mm² (10 AWG)
- CBLPV10B/25. 25M / Rojo / 6 mm² (10 AWG)
- CBLPV10R/100. 100M / Rojo / 6 mm² (10 AWG)
- CBLPV10B/100. 100M / Negro / 6 mm² (10 AWG)
- CBLPV10R/500. 500M / Rojo / 6 mm² (10 AWG)
- CBLPV10B/500 500M / Negro / 6 mm² (10 AWG)
- 10 mm² (8 AWG):
- CBLPV8R/50. 50M / Rojo / 10 mm² (8 AWG)
- CBLPV8B/50. 50M / Negro / 10 mm² (8 AWG)
- 16 mm² (6 AWG):
- CBLPV6B/50. 50M / Negro / 16 mm² (6 AWG)
- CBLPV6R/50. 50M / Rojo / 16 mm² (6 AWG)
- CBLPV6R/100. 100M / Rojo / 16 mm² (6 AWG)
- CBLPV6B/100. 100M / Negro / 16 mm² (6 AWG)
- CBLPV6R/500. 500M / Negro / 16 mm² (6 AWG)
- CBLPV6B/500. 500M / Negro / 16 mm² (6 AWG)
- ALEACCION COBRE ESTAÑO:
- 6 mm² (10 AWG)
- CBLUT10R/25. 25M / Rojo / 6 mm² (10 AWG)
- CBLUT10B/25. 25M / Negro / 6 mm² (10 AWG)
- CBLUT10R/50. 50M / Rojo / 6 mm² (10 AWG)
- CBLUT10B/50. 50M / Negro / 6 mm² (10 AWG)
- CBLUT10R/100. 100M / Rojo / 6 mm² (10 AWG)
- CBLUT10B/100. 100M / Negro / 6 mm² (10 AWG)
- JUMPERS:
- 6 mm² (10 AWG)
- CFMC41MRED. MC4.M/1M / Rojo / 6 mm² (10 AWG)
- CFMC41MBLK. MC4.M/1M / Negro / 6 mm² (10 AWG)
