LINKEDPRO BY FIBERHOME

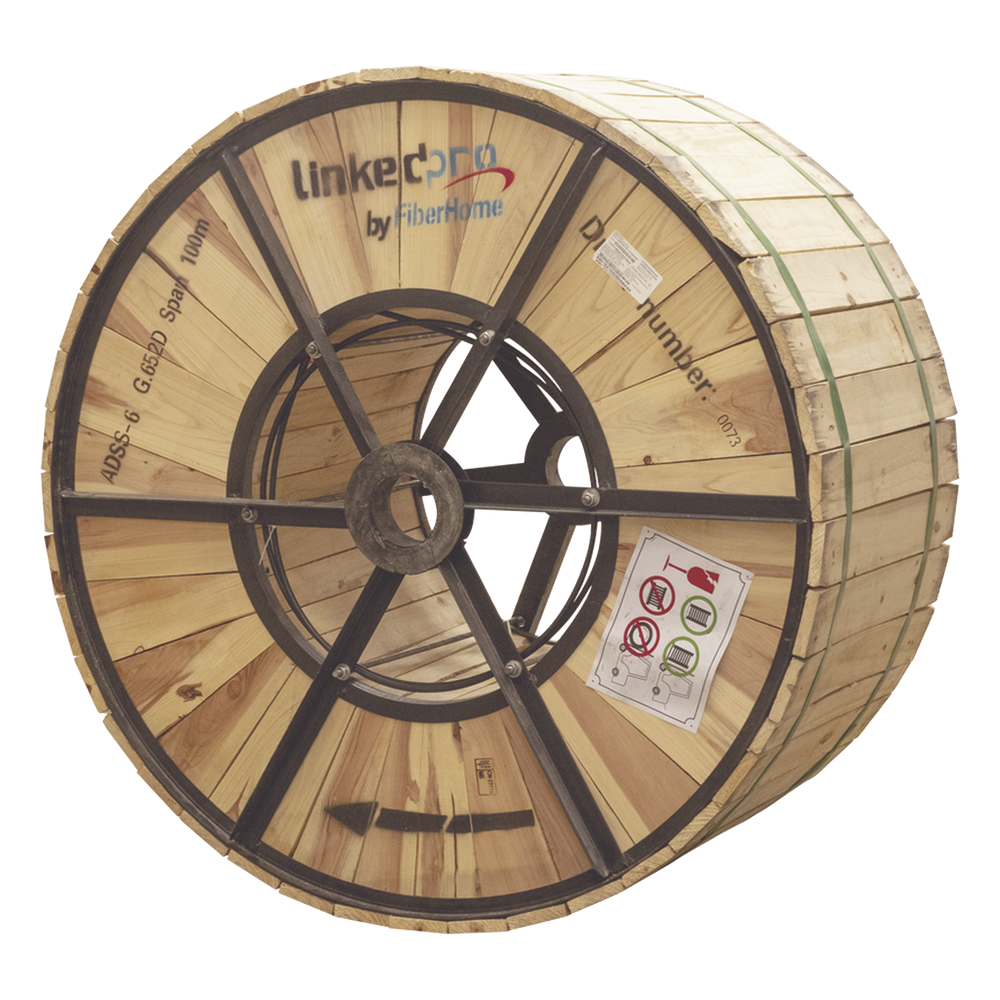

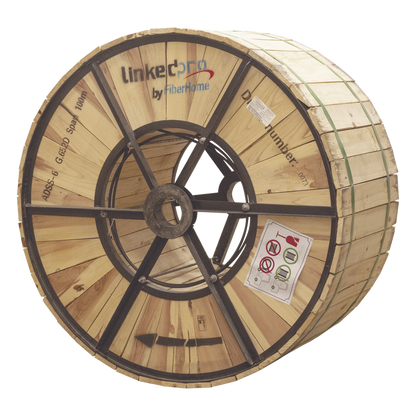

Carrete de 4 km de Fibra Óptica Aérea (ADSS) G.652D, Monomodo de 6 Hilos, Exterior, Span 100, Loose Tube
Carrete de 4 km de Fibra Óptica Aérea (ADSS) G.652D, Monomodo de 6 Hilos, Exterior, Span 100, Loose Tube
Couldn't load pickup availability
El cable de fibra óptica ADSS (All Dielectric Self Supported, completamente dieléctrico y autosoportado) está diseñado para instalaciones aéreas entre postes. Los cables ADSS resisten la tracción necesaria gracias a los hilos de aramida, no contiene elementos metálicos.
Especificaciones Técnicas:
- Fibra Óptica: ADSS G.652D Monomodo Loose Tube
- Cubierta Exterior: HDPE (Polietileno de Alta Densidad)
- Maxima tensión: 2300 N
- Anti-tracking: Hasta 110kV
- Temperatura de operación: -20ºC a +65ºC
- Span: 100 metros
- Protección: Rayos UV y humedad
- Diámetro nominal: 9.3 ± 0.3 mm
- Radio mínimo de curvatura: Instalación 25D, Operación 12.5D
- Resistencia al aplastamiento: 1000N/10cm
- Peso nominal: 68 ± 10 kg/km
- Hilos: 6
- Color: Forro Negro
- Peso bruto del carrete: 365 kg
Accesorios Compatibles
Tensor tipo abrazadera compatible:
LP-AC812
Preformados compatibles:
LP-RP0910
DELT-001
