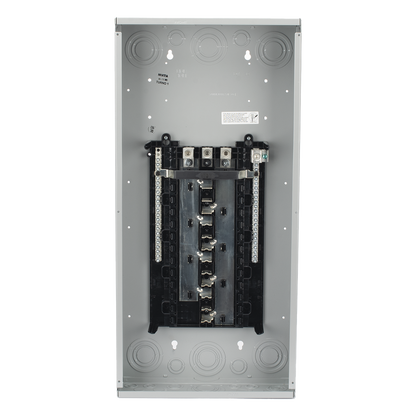

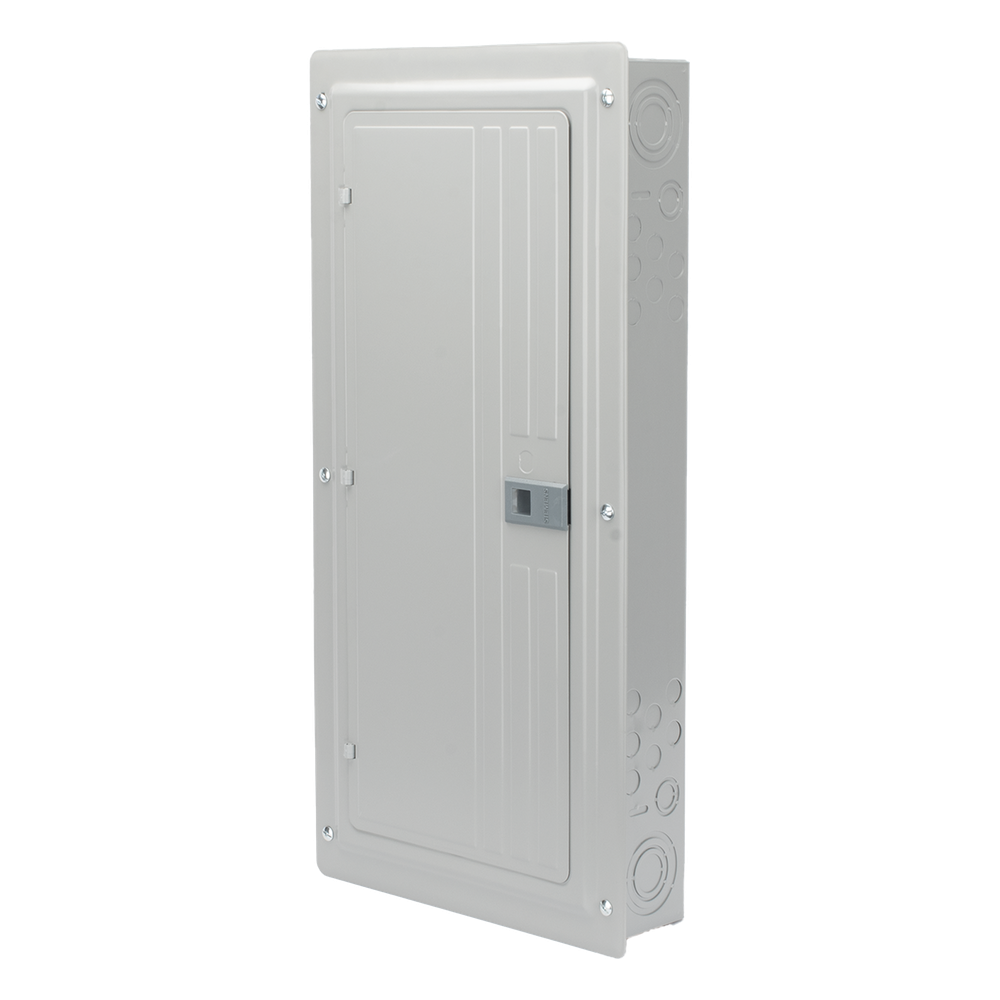

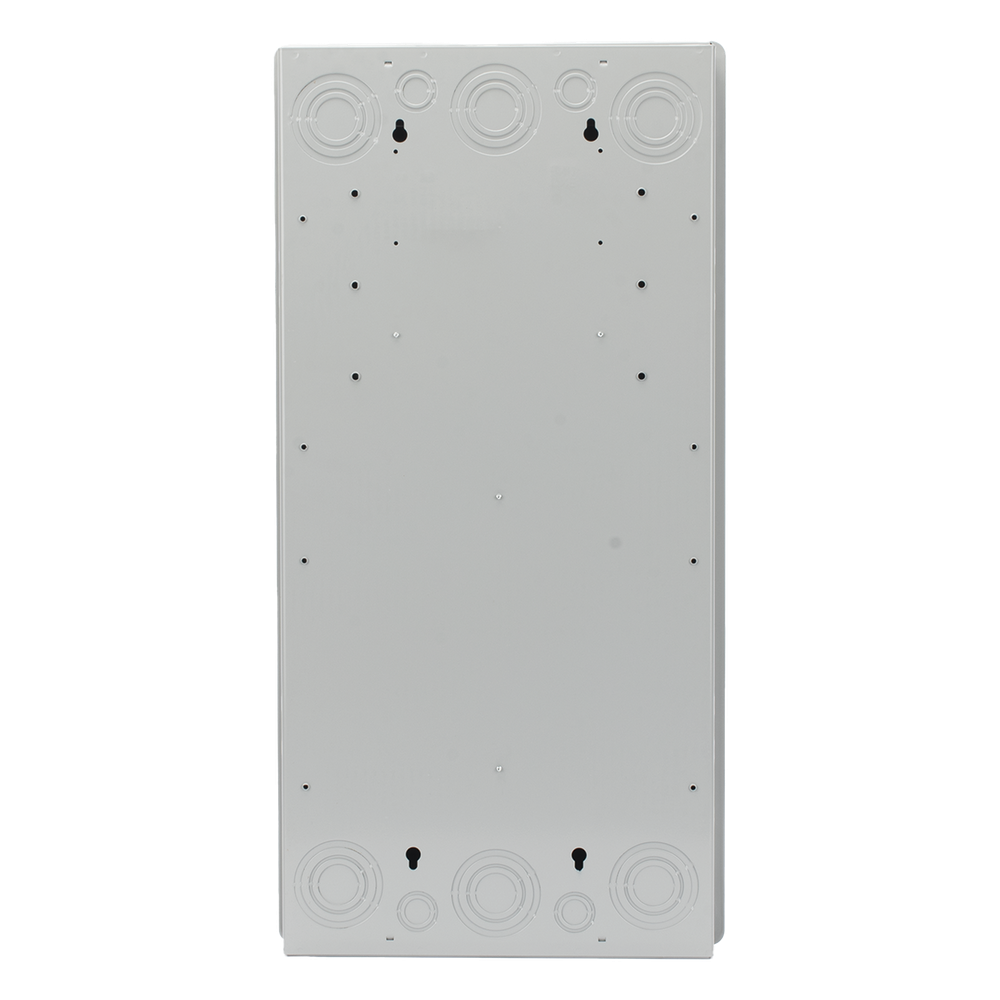

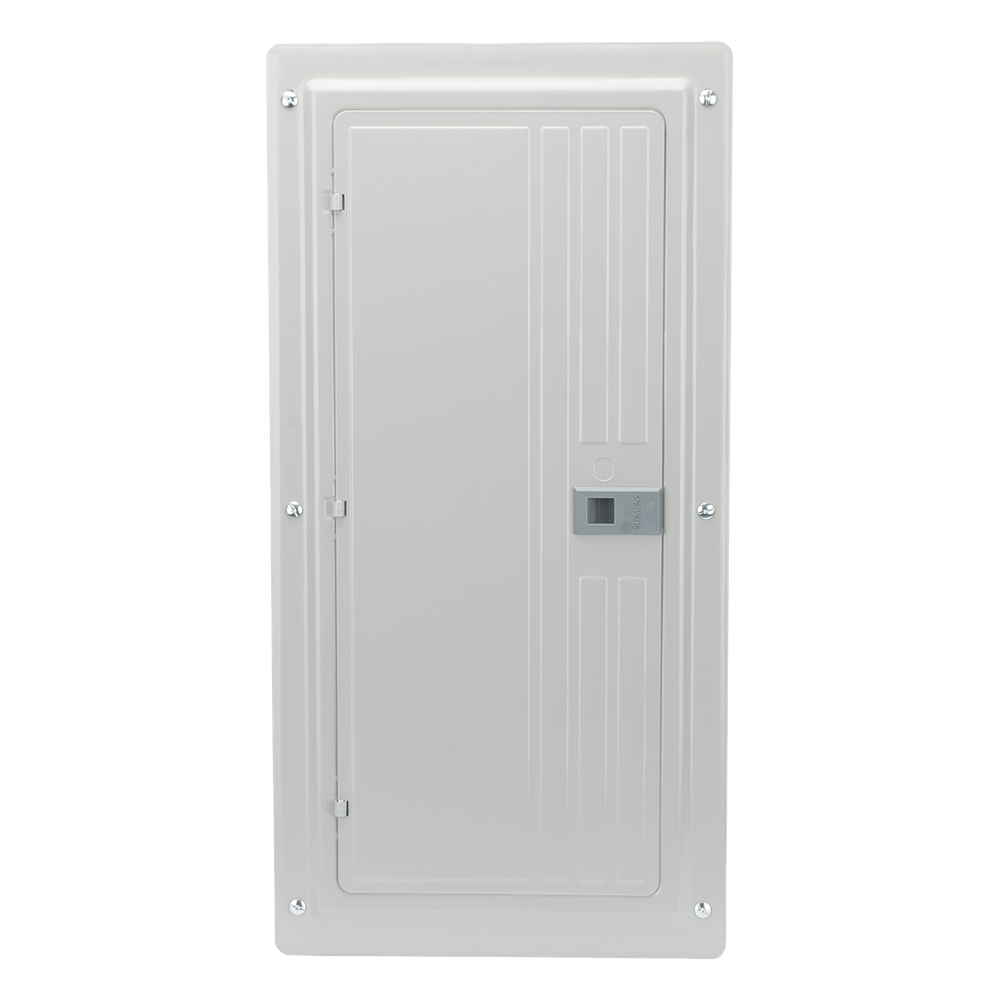

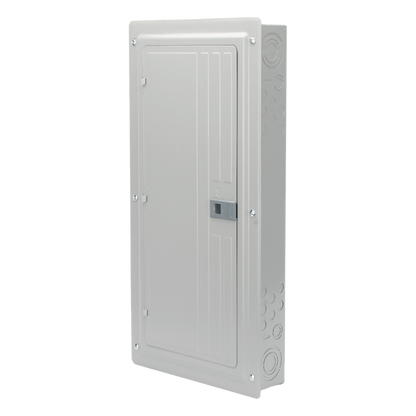

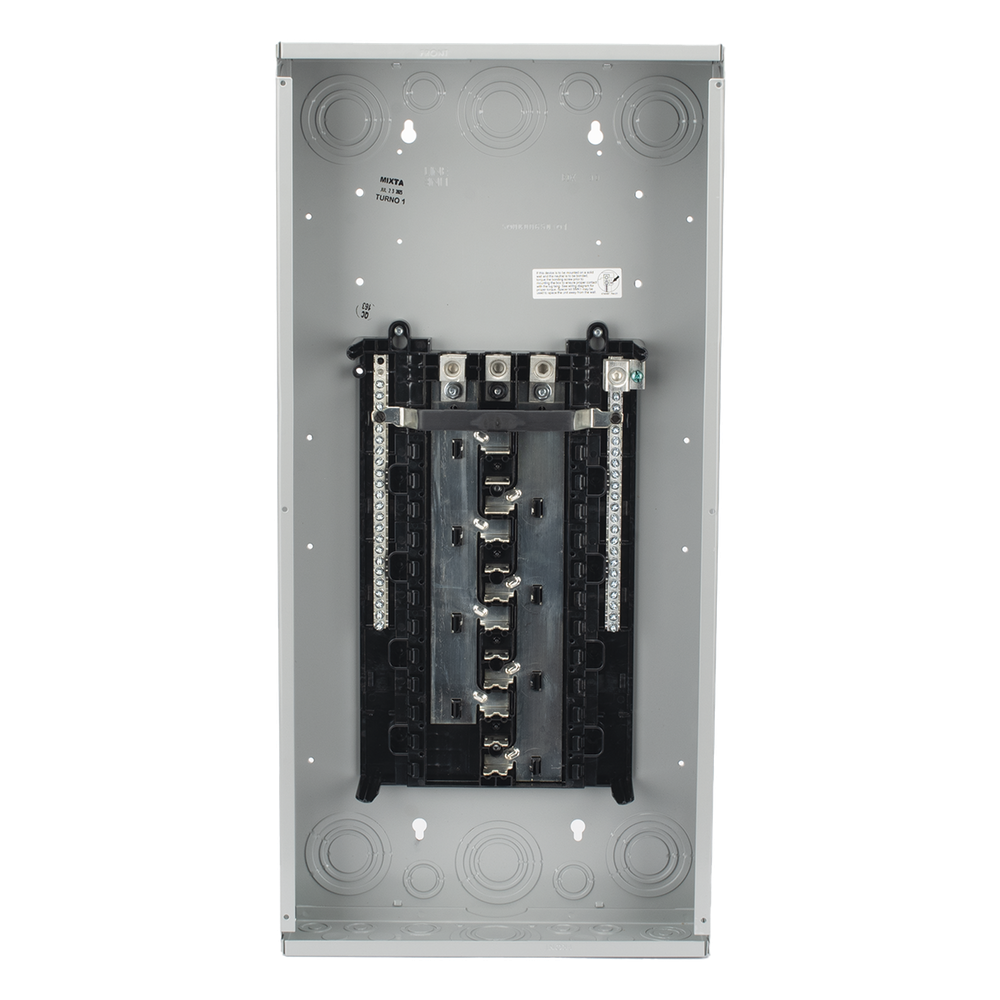

Centro de carga trifásico 3 Fases, 4 Hilos para interruptores QP, de 24 polos - 42 circuitos, 120/240vca, Barras de aluminio 200 Amp, Nema 1, uso
Centro de carga trifásico 3 Fases, 4 Hilos para interruptores QP, de 24 polos - 42 circuitos, 120/240vca, Barras de aluminio 200 Amp, Nema 1, uso
Couldn't load pickup availability
Características Principales
- Tipo: Centro de carga trifásico
- Configuración: 3 Fases, 4 Hilos
- Capacidad: 24 polos - 42 circuitos
- Voltaje: 120/240V AC
- Material de barras: Aluminio
- Corriente nominal: 200 Amp
- Protección: Nema 1
- Aplicación: Uso interior
- Incluye: Tapa
Especificaciones Técnicas
- Normas: UL 489, CSA C22.2 No. 5-16, NMX-J-266-ANCE
- Calibración: 50°C
- Aplicación interruptores: QP, QPH, HQP
- Conexión de cables: #14 - #10 AWG Cu (15-20A), #12 - #10 AWG Al (15-20A), #10 - #8 AWG Cu (25-35A), #10 - #6 AWG Al (25-35A), #8 - #6 AWG Cu (40-50A), #8 - #4 AWG Al (40-50A), #6 - #4 AWG Cu (55-60A), #6 - #4 AWG Al (55-60A)
- Dimensiones: 23 1/8' (altura) x 31 1/8' (ancho) x 3' (profundidad)
Clasificaciones de Interrupción UL
- QP: Hasta 10kA
- QPH: Hasta 22kA
- HQP: Hasta 65kA
Conexiones de Cable
- 15-20A: #14 - #10 AWG Cu
- 25-35A: #10 - #8 AWG Cu
- 40-50A: #8 - #6 AWG Cu
- 55-60A: #6 - #4 AWG Cu
- 70-100A: #4 - #3 AWG Cu
- 110-125A: #2 - #1/0 AWG Cu
Condiciones de Operación
- Temperatura de operación: -20°C a 70°C
- Humedad: 5% a 95% RH sin condensación
- Altitud: Hasta 2000 msnm
Compatibilidad
- Interruptores compatibles: QP, QPH, HQP
- Accesorios: Shunt Trip, Switching Neutral, Handle Tie
- Conexión de aluminio: Hasta 6 AWG
