UBIQUITI

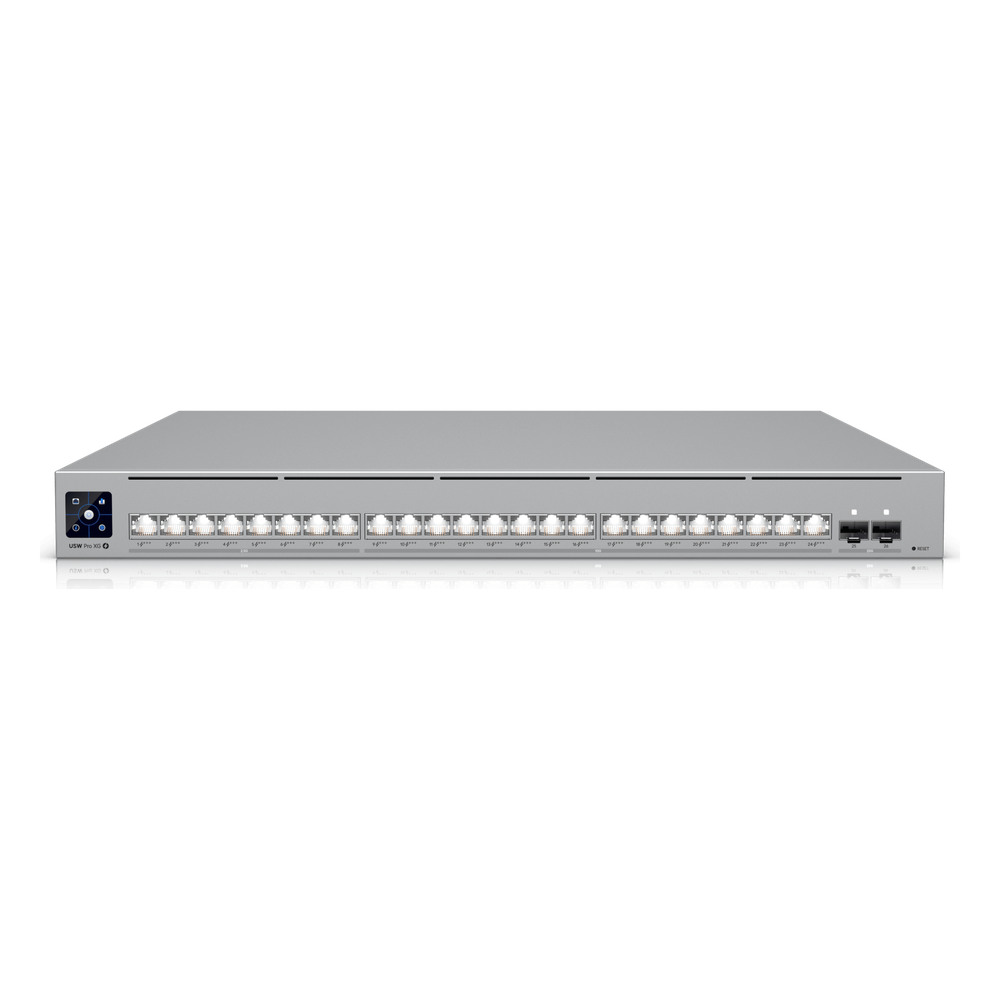

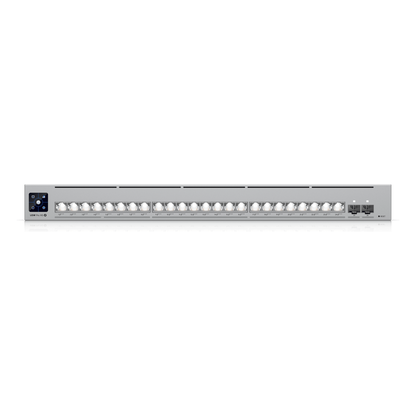

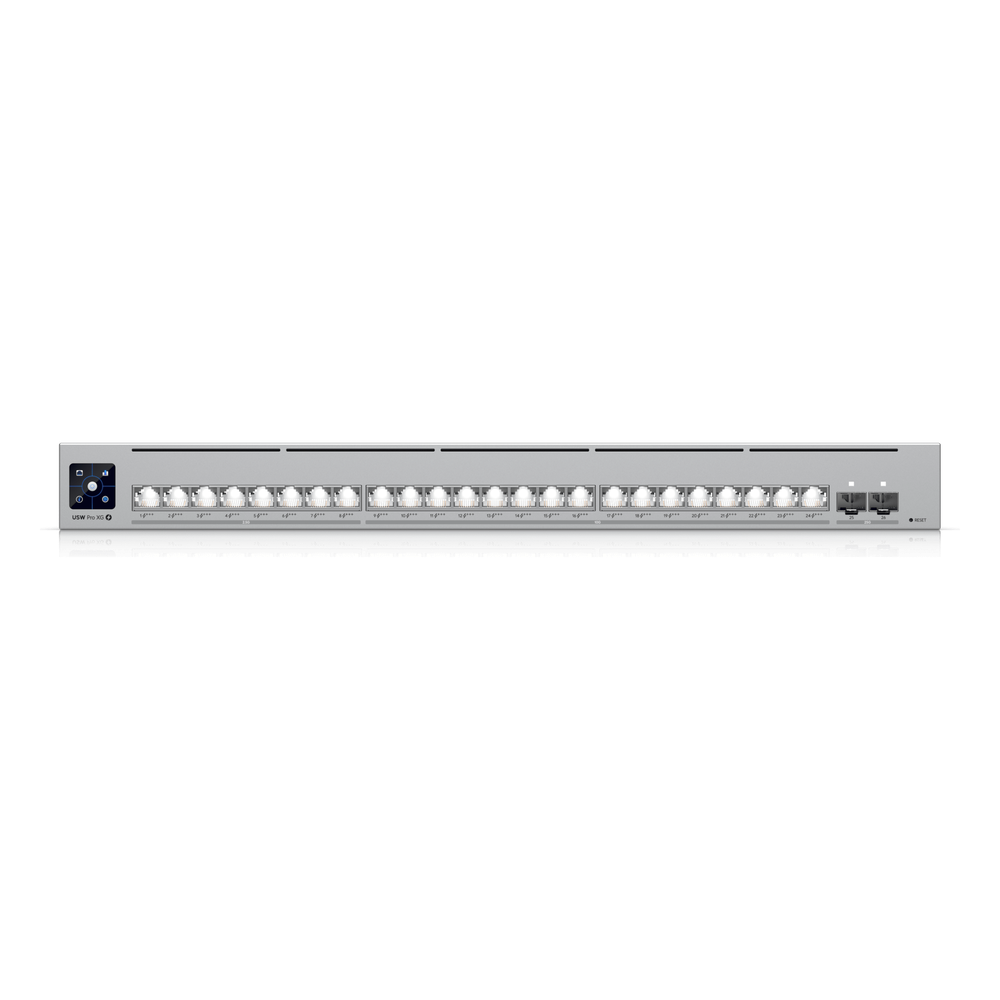

UniFi Switch USW-Pro-XG-24-PoE / Capa 3 / 24 puertos PoE+++ (16 × 10 GbE, 8 × 2,5 GbE) + 2 puertos SFP28 25 G / 720 W PoE total

UniFi Switch USW-Pro-XG-24-PoE / Capa 3 / 24 puertos PoE+++ (16 × 10 GbE, 8 × 2,5 GbE) + 2 puertos SFP28 25 G / 720 W PoE total

Regular price $ 66,184.62 MXN
Regular price Sale price $ 66,184.62 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

UniFi Pro XG 24 PoE

Modelo: USW-Pro-XG-24-PoE

Switch administrable Capa 3 con Etherlighting™, con 24 puertos RJ45 con PoE+++ (2.5G/10G) y 2 puertos SFP28 de 25G, para montaje en rack 1U y con soporte de respaldo de energía CC (RPS).

Especificaciones
Características principales
  • Etherlighting™: puertos iluminados para identificar ubicación, estado y red/VLAN*
  • (8) puertos RJ45 2.5 GbE (2.5G/1G/100M/10M) con PoE+++
  • (16) puertos RJ45 10 GbE (10G/5G/2.5G/1G/100M/10M) con PoE+++
  • (2) puertos SFP28 25G (25G/10G/1G)
  • PoE máx.: hasta PoE+++ (90 W por puerto, máx.)
  • PoE total disponible: 720 W
  • Redundancia: respaldo de energía CC (entrada USP RPS)
  • Factor de forma: montaje en rack 1U
*La disponibilidad/funcionalidad puede depender de la versión de UniFi Network y del dispositivo/firmware.
Rendimiento
  • Capacidad de switching: 460 Gbps
  • Throughput no bloqueante (total): 230 Gbps
  • Tasa de reenvío: 342 Mpps
  • VLANs soportadas: 1,000
  • Tabla MAC: 128,000
  • Buffer de paquetes: 8 MB
  • ACL: IPv4 256 / MAC 256
Características de Capa 3
  • Servidor DHCP (redes locales)
  • Relay DHCP
  • Enrutamiento inter-VLAN (redes locales)
  • Ruteo estático (redes locales)
  • Tablas L3: ARP 128,000 / Rutas IPv4 256,000
Características de Capa 2
  • Agregación de enlaces (LACP)
  • STP y RSTP
  • QoS (DSCP)
  • Perfiles Pro AV (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • IGMP avanzado (Querier, Fast Leave, Router Port) e IGMP Snooping
  • Control 802.1X
  • ACL por MAC y aislamiento de dispositivos
  • DHCP Snooping y protección
  • Límite de tasa de salida (Egress Rate Limit)
  • Control de flujo (Flow Control) y control de tormentas (Storm Control)
  • Limitación de tráfico multicast y broadcast
  • Bloqueo de MAC, restricción por MAC, aislamiento de puertos y espejo de puertos
  • Jumbo Frames, LLDP-MED, VLAN de voz, protección contra loops
  • Virtual Network Override
Características físicas y eléctricas
  • Dimensiones: 442 × 480 × 44 mm (17.4 × 18.9 × 1.7')
  • Peso: 7.9 kg (sin brackets) / 8.0 kg (con brackets)
  • Material: acero SGCC (chasis y montaje)
  • Pantalla: LCM táctil de 1.3'
  • Consumo máximo: 150 W (sin salida PoE) / 870 W (con salida PoE)
  • Alimentación: (1) entrada universal 100–240 VCA, 50/60 Hz + (1) entrada USP RPS CC
  • Fuente: interna CA/CC 870 W
  • Profundidad de rack soportada: rack 4 postes 19', postes con profundidad de 600 a 1,066 mm (23.6–42')
  • Temperatura: −5 a 40 °C (23 a 104 °F)
  • Humedad: 10–90% sin condensación
Gestión y cumplimiento
  • Gestión: UniFi Network
  • Requisito: UniFi Network 9.1.120 o posterior
  • Protección ESD: aire ±30 kV, contacto ±20 kV
  • NDAA: ✓
  • Certificaciones: CE, FCC, IC, Anatel (04322-25-08356)

Accesorios recomendados

UACC-CABLE-PATCH-EL-2M-W
UACC-DAC-SFP10-1M

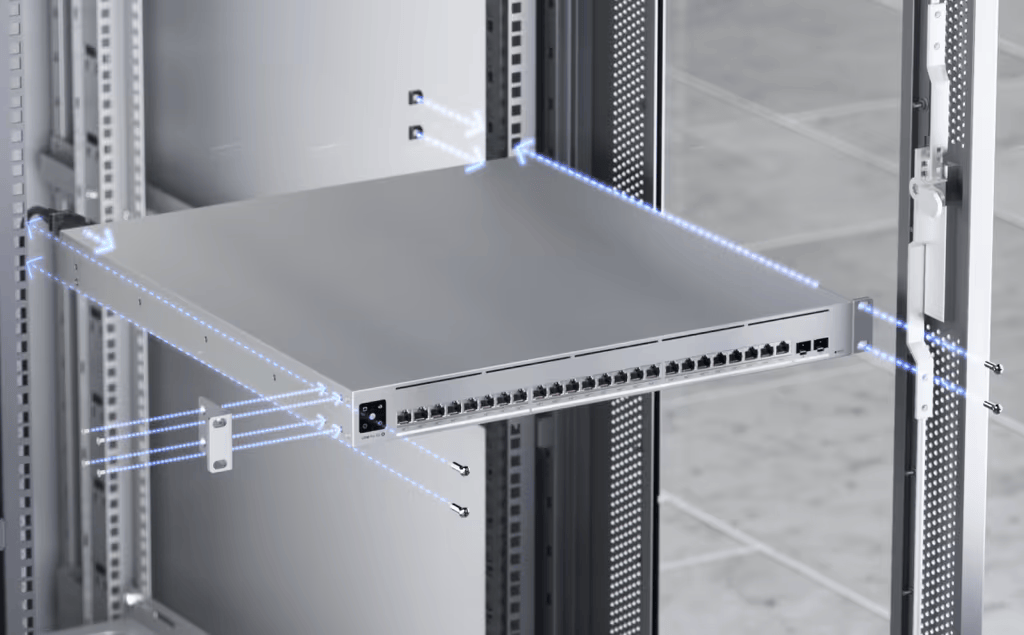

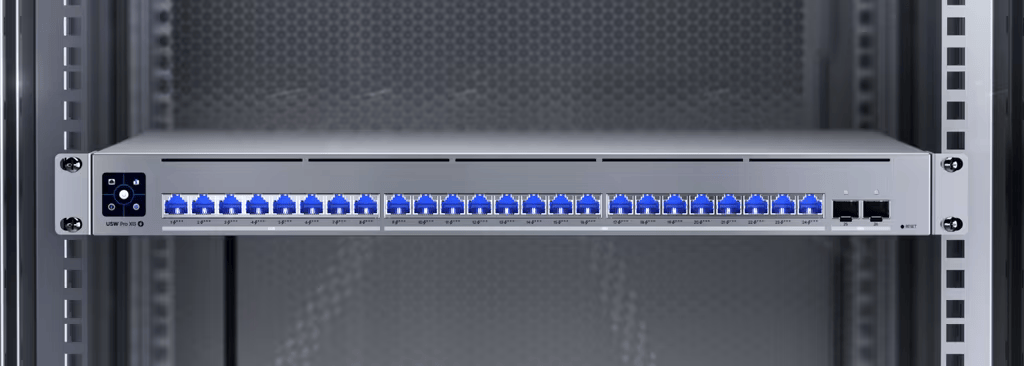

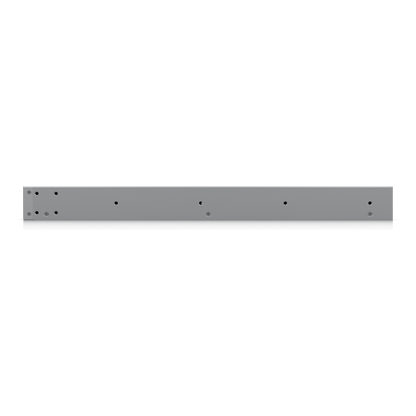

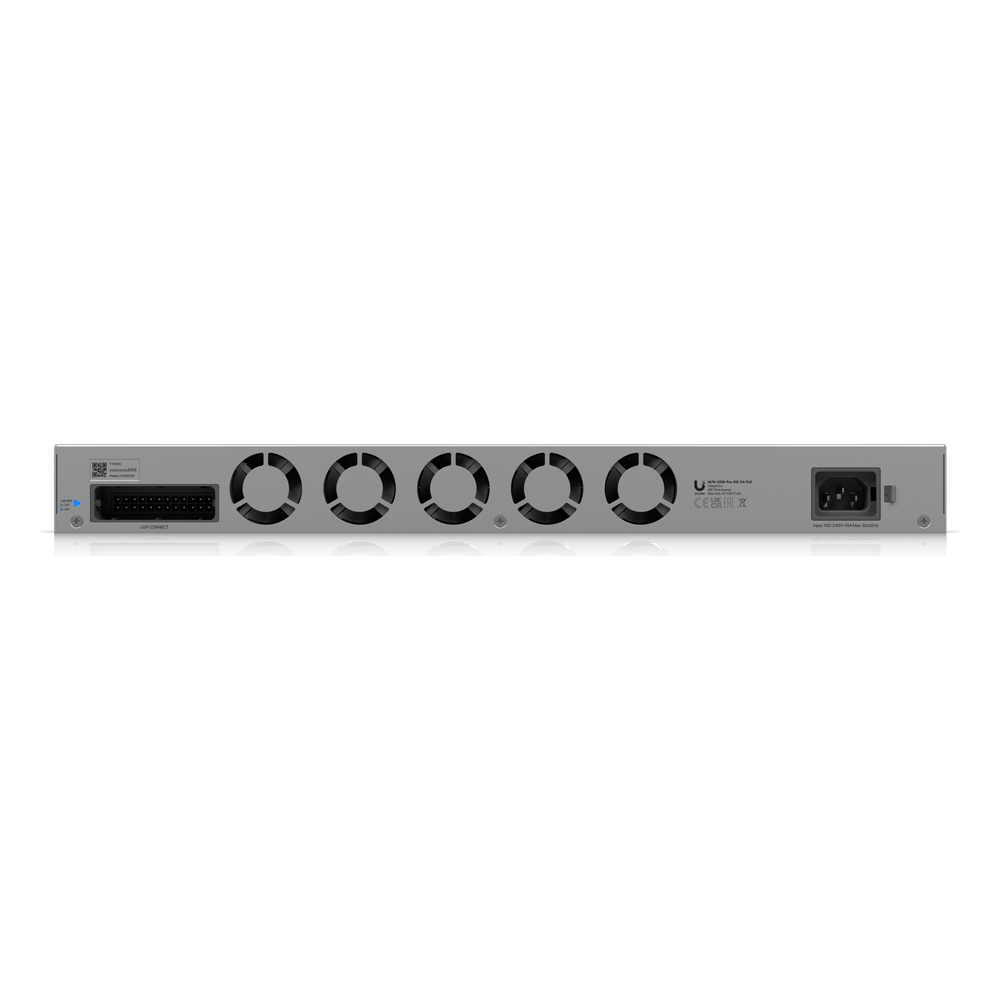

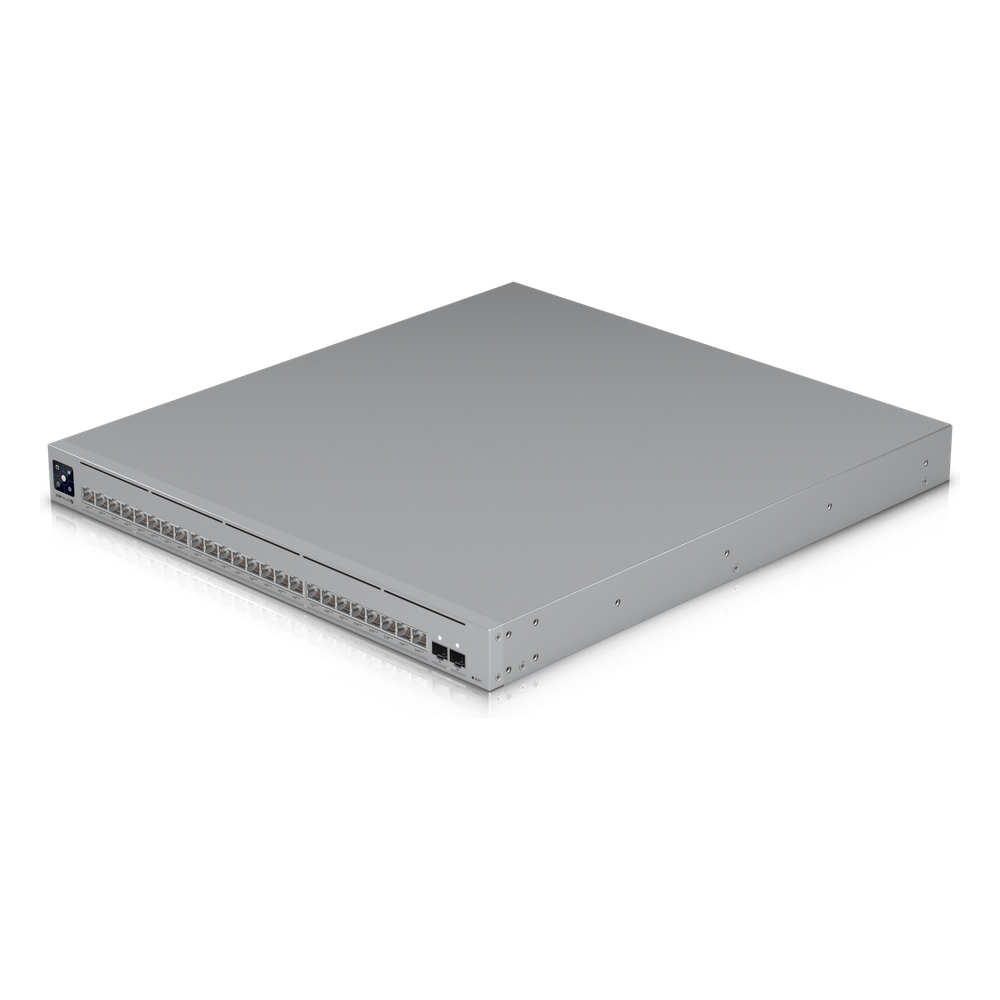

Vista del producto

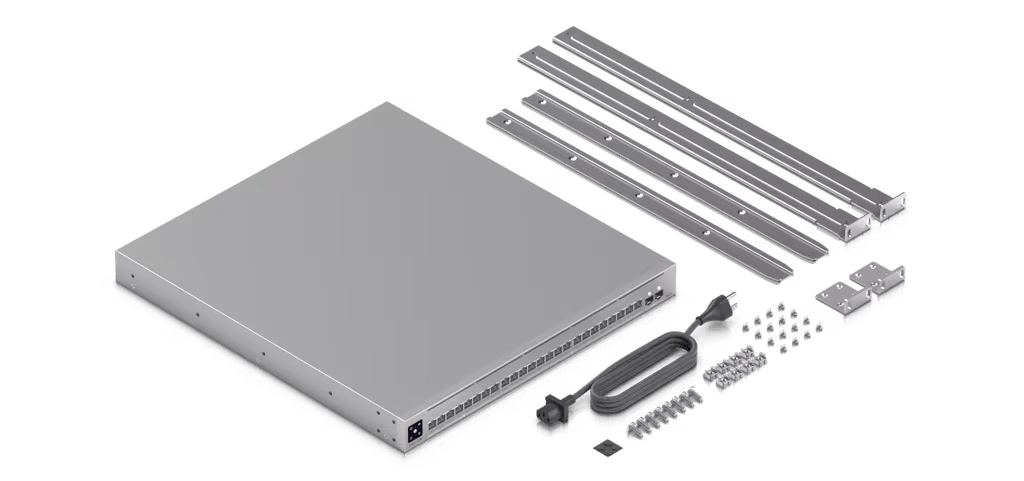

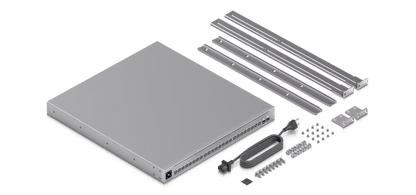

Contenido del paquete
