WI-TEK

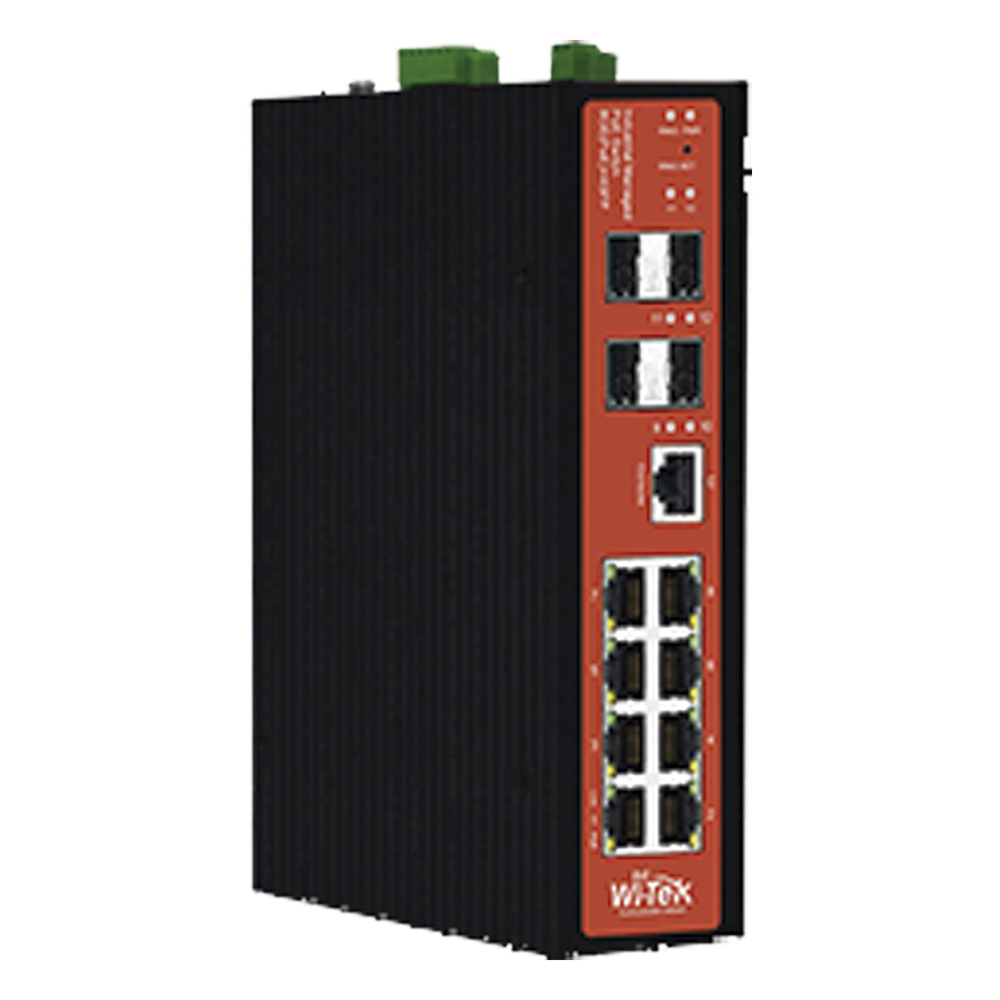

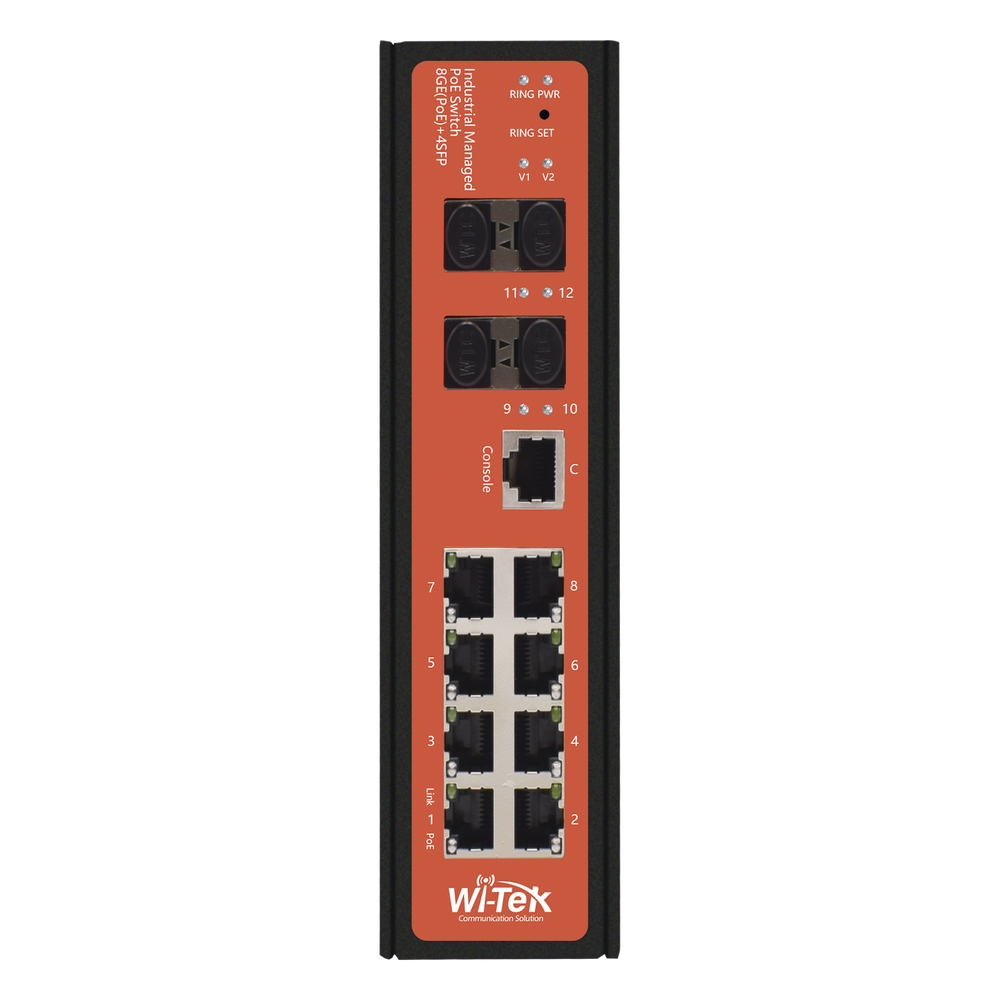

Switch Industrial Administrable / PoE Mixto 24/48V / 8 Puertos Gigabit + 4 SFP / Puertos 3-4 802.3 af/at/bt 60W / Protección 8kV / Riel DIN

Switch Industrial Administrable / PoE Mixto 24/48V / 8 Puertos Gigabit + 4 SFP / Puertos 3-4 802.3 af/at/bt 60W / Protección 8kV / Riel DIN

Regular price $ 6,115.03 MXN
Regular price Sale price $ 6,115.03 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Switch PoE industrial PoE mixto 24V/48V

El conmutador PoE industrial mixto de 24V/48V de Wi-Tek está diseñado para proporcionar una solución de red de transporte para el mercado WISP.

Los productos están diseñados para identificar automáticamente los diferentes requisitos de suministro de energía, compatible con todos los dispositivos de energía. Dispositivos, una inversión de una sola vez para satisfacer diversos requisitos de negocio.

Los productos están diseñados para una instalación instalación, admiten el montaje en pared y en raíl DIN, CPU de grado industrial, fuente de alimentación redundante, soportan la operación en ambientes difíciles, para asegurar la operación estable del proyecto.

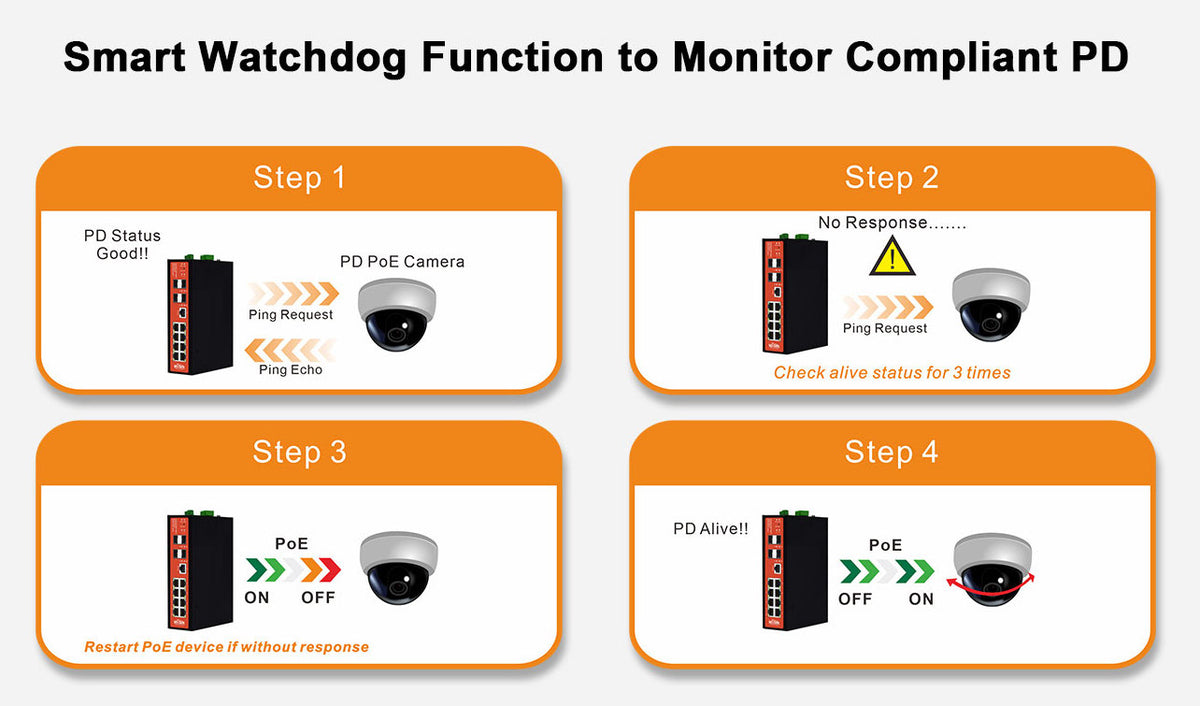

Función Smart PoE Watchdog en un Switch

Plug and play, sin configuración. Detecta automáticamente y reinicia la cámara IP, esto si se pierde conectividad con la cámara.

Especificaciones
  • Dimensiones: 200 x 140 x 50 mm
  • Interfaces de Red: 8 Puertos 10/100/1000 Mbps, 4 SFP
  • Ventilación: Ventiladores
  • Fuente de alimentación: Fuente 1 (Principal): 37-57 Vcc, Fuente 2 (Respaldo): 37-57 Vcc
  • Puertos PoE (RJ45): Puertos: 1-2 > 24V Paviso/48V 802.3 af/at, Puertos: 3-4 > 802.3 af/at/bt 60W, Puertos: 5-8 > 802.3 af/at, End-Span 30W
  • Bandwidth: 24 Gbps
  • Mac Address Table: 8K
  • Packet Forwarding Rate: 17.86 Mpps
  • Nivel de protección: Lightning protection 8KV, Standard: IEC6000-4-5
  • Temperatura de operación: -40 a 80° C
  • Certificaciones: CE, FCC
Características
  • Método de Transmisión: Store-And-Forward
  • Funciones Avanzadas: Spanning Tree, VLAN, QoS, IGMP, Control de Acceso
Otros
  • Contenido del Paquete: Switch Industrial PoE, Sensor de temperatura, Guía de Usuario, Garantía
