HONEYWELL ANALYTICS
Transmisor universal de gas para sensores catalíticos externos, con salida HART sobre 4-20 mA y 3 relés de alarma y falla
Transmisor universal de gas para sensores catalíticos externos, con salida HART sobre 4-20 mA y 3 relés de alarma y falla
Couldn't load pickup availability

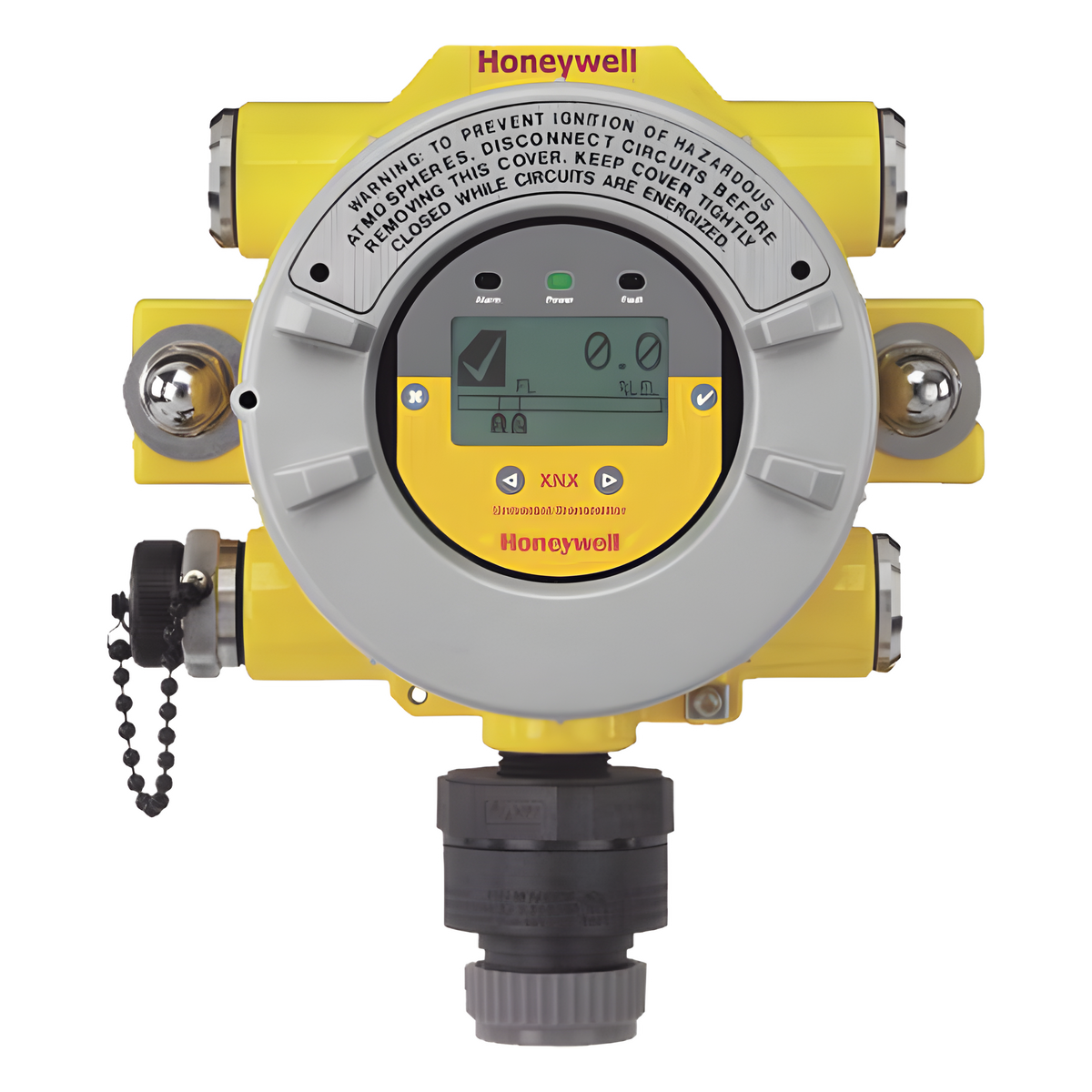

Este transmisor universal XNX, con personalidad milivoltaje (mV), está diseñado para operar con sensores catalíticos externos de Honeywell Analytics, como los modelos 705, 705HT, Sensepoint, Sensepoint HT y MPD, para la detección de gases inflamables en atmósferas potencialmente explosivas. No incluye el sensor, que se adquiere y se conecta por separado. Se emplea en plataformas de producción de gas y petróleo, refinerías, plantas químicas y petroquímicas, y otras instalaciones industriales donde se requiere monitoreo de hidrocarburos. Cuenta con un módulo de 3 relevadores para señalizar alarma y falla, y se integra con controladores 4-20 mA, sistemas HART, Modbus o PLC estándar de la industria.
Características principales
- Personalidad mV, compatible con sensores catalíticos externos 705, 705HT, Sensepoint y MPD
- Pantalla LCD de 2.5 pulgadas de alta resolución con interfaz de 4 botones magnéticos
- Salida de lazo 4-20 mA con protocolo HART versión 6
- 3 relevadores configurables: 2 de alarma y 1 de falla
- Carcasa de aluminio con 5 entradas para conducto o cable NPT de 3/4 pulgada
- Protección IP66, tipo NEMA 4X, para interiores y exteriores
- Certificado UL y CSA; Clase 1, División 1, Grupos B, C y D
Especificaciones técnicas
